REAR CYLINDER HEAD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

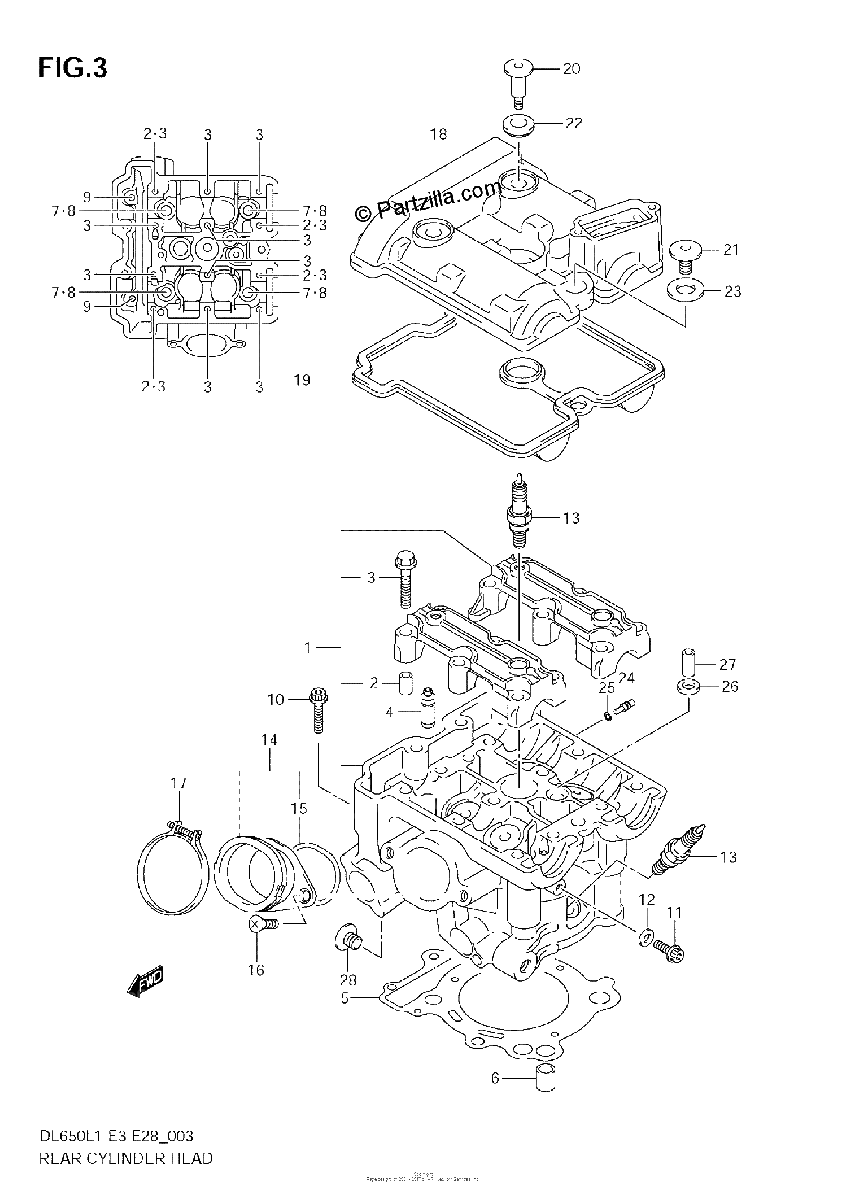

Diagrama de REAR CYLINDER HEAD

Repuestos

#1
11103-17G20
HEAD ASSY, CYLINDER REAR
No Disponible
1
#2
09206-08001
.PIN (8X11)
$2.30¢1 150
1
#3
09103-06266
.BOLT (6X40)
$2.78¢1 388
1
#4
11115-18D72
GUIDE, VALVE (OS:0.3) | OPT
$42.47¢21 237
1
#5
11141-20F00
GASKET, CYLINDER HEAD
$53.38¢26 688
1
#6
04211-13189
PIN
$2.85¢1 425
1
#7
09160-10082
WASHER (10.5X19X2) | FRONT
$2.10¢1 050
1
#8
09103-10272
BOLT (10X160)
$18.26¢9 131
1
#9
09103-06103
BOLT (6X70)
$3.29¢1 644
1
#10
07120-0640B
BOLT
$3.96¢1 981
1
#11
09103-06222
BOLT (6X12)
$2.97¢1 487
1
#12
09168-06023
GASKET (5.8X13X1.2)
$2.63¢1 313
1
#13
09482-00459
SPARK PLUG (DENSO,U27ESR-N) | OPT,DENSO
$7.26¢3 631
1
#13
09482-00456
SPARK PLUG (CR8E)
$7.80¢3 900
1
#13
09482-00515
SPARK PLUG (U22ESR-N)
$7.11¢3 556
1
#13
09482-00516
SPARK PLUG (CR7E)
$7.49¢3 744
1
#13
09482-00458
SPARK PLUG (CR9E) | OPT
$7.49¢3 744
1
#13
09482-00457
SPARK PLUG (U24ESR-N)
$7.26¢3 631
1
#14
13102-17G10
PIPE ASSY, INTAKE REAR
$75.96¢37 981
1
#15
09280-46006
.O RING (D:2.4,ID:47X42)
$8.24¢4 119
1
#16
02122-0616B
SCREW
$2.58¢1 288
1
#17
09402-62208
CLAMP
$7.85¢3 925
1
#18
11172-17G00
COVER, CYLINDER HEAD REAR
No Disponible
1
#19
11173-19F01
GASKET, CYLINDER HEAD COVER
$40.65¢20 325
1
#20
09106-07021
BOLT (7X17.5)
$5.30¢2 650
1
#21
09106-07010
BOLT (7X31)
$5.55¢2 775
1
#22
11191-27E00
WASHER
$4.85¢2 425
1
#23
11192-13E00
CUSHION HEAD COVER BOLT
$5.17¢2 588
1
#24
09493-80005
JET(8)
$21.34¢10 669
1
#25
09280-04004
O RING (D:1.2,ID:4)
$2.21¢1 106
1
#26
11182-35F00
GASKET, 2ND AIR PASSAGE
$3.93¢1 963
1
#27
09206-08007
.PIN (6.2X8X16)
$3.41¢1 706
1
#28
11151-27G00
CAP
$4.97¢2 488
1
