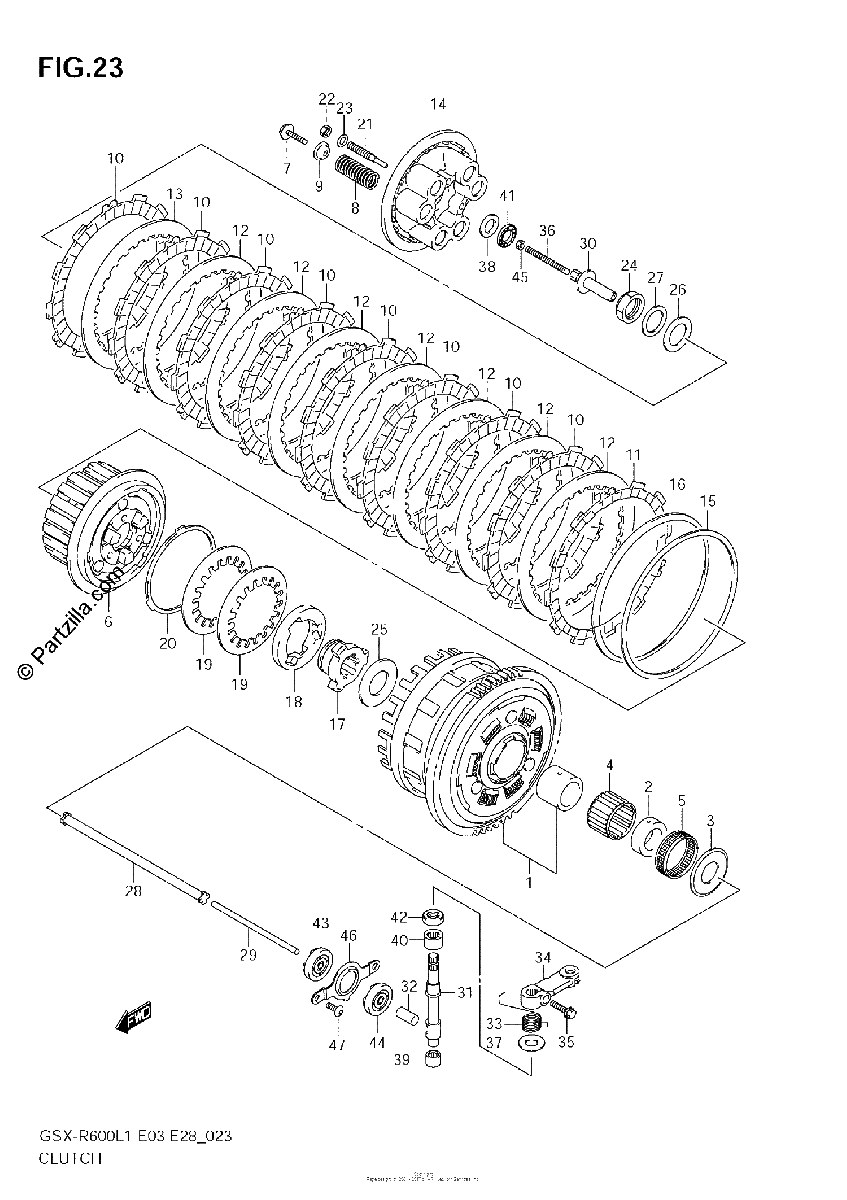

CLUTCH
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
GEAR ASSY, PRIMARY DRIVEN
$626.95¢313 473
#2
SPACER, OIL PUMP DRIVE
$51.50¢25 749
#3
WASHER (25X54X2.4)
$17.50¢8 752
#4
BEARING (35X40X26.8)
$33.75¢16 876
#5
BEARING (35X40X12)
$28.26¢14 128
#6
HUB, CLUTCH SLEEVE
$291.27¢145 636
#7
BOLT, CLUTCH SPRING
$4.25¢2 128
#8
SPRING, CLUTCH
$8.77¢4 387
#9
WASHER, CLUTCH SPRING
$7.05¢3 525
#10
PLATE, CLUTCH DRIVE NO.1
$30.79¢15 393
#11
PLATE, CLUTCH DRIVE NO.3
$30.79¢15 393
#12
PLATE, CLUTCH DRIVEN (T:2.0)
$19.92¢9 959
#13
PLATE, CLUTCH DRIVEN (T:1.6)
$14.96¢7 481
#14
DISC, CLUTCH PRESSURE
$97.58¢48 789
#15
SEAT, WAVE WASHER
$15.58¢7 791
#16
WASHER, CLUTCH PLATE WAVE
$22.52¢11 258
#17
CAM, CLUTCH DRIVE
$175.26¢87 630
#18
CAM, CLUTCH DRIVEN
$148.04¢74 020
#19
WASHER, CAM REACTION WAVE
$16.73¢8 366
#20
WASHER, CAM REACTION SEAT
$19.30¢9 649
#21
LIFTER, CLUTCH PRESCURE DISC
$11.86¢5 928
#22
NUT, CL PRESS DISC
$3.24¢1 621
#23
SHIM (8.8X14X1)
$2.30¢1 150
#24
NUT
$14.28¢7 142
#25
WASHER (25X50X2.5)
$12.74¢6 371
#26
WASHER
$5.55¢2 777
#27
WASHER (25X41X2.5)
$12.65¢6 325
#28
ROD, CLUTCH PUSH RH
$25.44¢12 719
#29
ROD, CLUTCH PUSH LH
$14.59¢7 297
#30
PIECE, CLUTCH PUSH
$60.87¢30 435
#31
CAMSHAFT, CLUTCH RELEASE
$73.37¢36 685
#32
CAP, CLUTCH PUSH ROD
$11.99¢5 997
#33
SPRING, CLUTCH RELEASE RETURN
$3.56¢1 783
#34
ARM, CLUTCH RELEASE
$51.20¢25 599
#35
BOLT (6X20)
$2.98¢1 489
#36
SCREW (6X73)
$7.44¢3 720
#37
WASHER (10.5X24X1)
$2.23¢1 116
#38
WASHER (15.5X28X1)
$4.21¢2 105
#39
BEARING (10X14X10)
$14.63¢7 314
#40
BEARING (12X18X12)
$7.90¢3 950
#41
BEARING (15X28X2)
$8.97¢4 485
#42
OIL SEAL (10X20X6)
$8.63¢4 313
#43
OIL SEAL (6X34X10.5)
$18.17¢9 085
#44
OIL SEAL (10X17X5)
$3.65¢1 823
#45
NUT
$2.20¢1 098
#46
RETAINER, CL PUSH ROD
$8.26¢4 129
#47
SCREW (6X13)
$3.13¢1 564
