FRONT DAMPER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

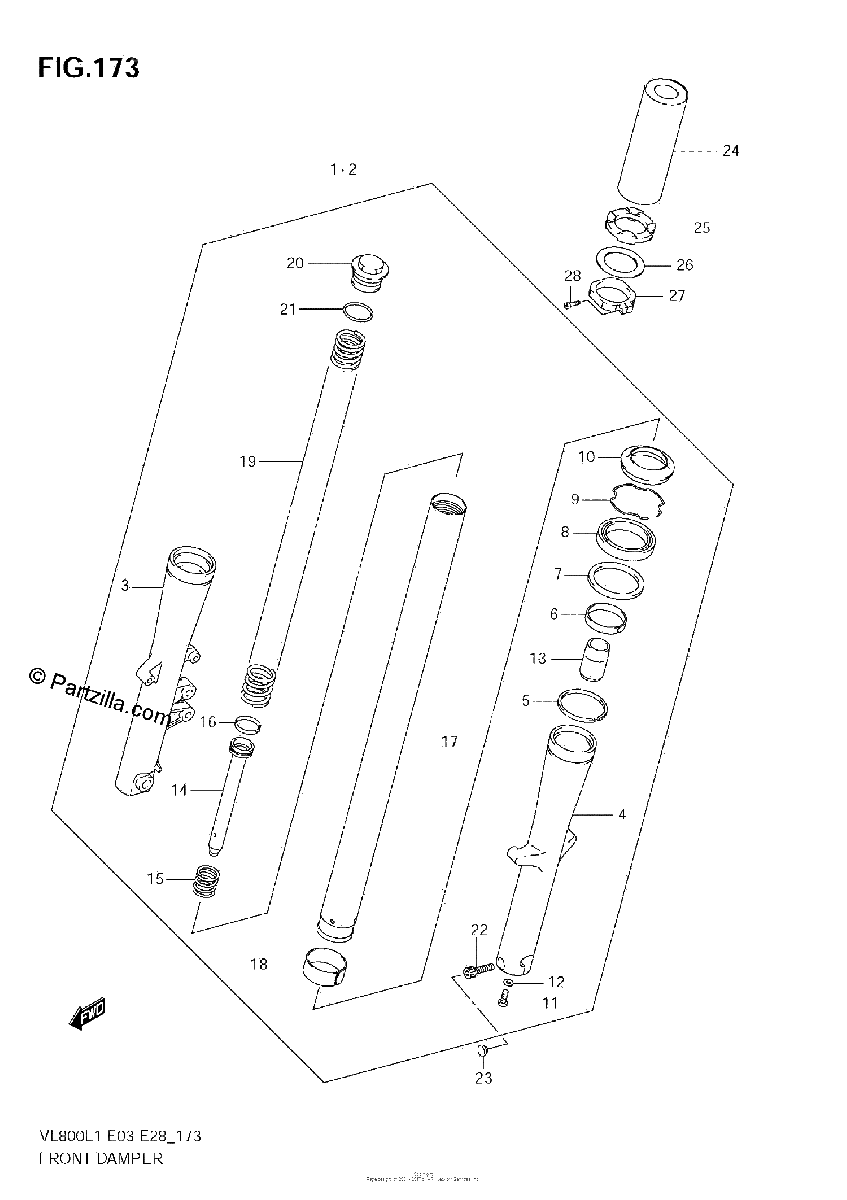

Diagrama de FRONT DAMPER

Repuestos

#1
51103-41F40
DAMPER ASSY, FRONT FORK RH
$1105.54¢552 769
1
#2
51104-41F40
DAMPER ASSY, FRONT FORK LH
$1010.94¢505 469
1
#3
51131-41F20
.TUBE, OUTER RH
$780.90¢390 450
1
#4
51141-41F20
.TUBE, OUTER LH
$780.90¢390 450
1
#5
51469-41F21
.GUIDE, CASE
$23.90¢11 950
1
#6
51152-11D60
.BUSH, GUIDE
$17.00¢8 500
1
#7
51168-38B00
.SPACER, SEAL
$7.97¢3 988
1
#8
51153-08D00
.SEAL, OIL
$27.39¢13 694
1
#9
51556-38B00
.RING
$8.61¢4 306
1
#10
51571-47D50
.SEAL, DUST
$26.11¢13 056
1
#11
51147-06F10
.BOLT
$8.09¢4 044
1
#12
51148-36011
.GASKET
$4.25¢2 125
1
#13
51195-10F00
.PIECE, OIL LOCK
$40.79¢20 394
1
#14
51146-10F00
.SEAT, PIPE
No Disponible
1
#15
51177-10F00
.SPRING, REBOUND
No Disponible
1
#16
51196-47D00
.RING
$11.91¢5 956
1
#17
51110-41F40
.TUBE, INNER
$676.75¢338 375
1
#18
51121-42E00
.BUSH, SLIDE
$21.84¢10 919
1
#19
51171-41F40
.SPRING, FRONT
No Disponible
1
#20
51189-47D50
.BOLT, FORK
$70.53¢35 263
1
#21
51117-12C00
.O RING
$4.76¢2 381
1
#22
07130-10357
.BOLT
$6.79¢3 394
1
#23
09250-08014
CAP (OD:12)
$3.65¢1 825
1
#24
51464-41F21
CASE, UNDER
$225.55¢112 775
1
#25
51468-10F00
SEAT, RUBBER
$29.47¢14 737
1
#26
51467-10F70
WASHER
$17.06¢8 531
1
#27
51465-41F20
SPACER
$72.22¢36 113
1
#28
51466-10F00
BOLT
$10.19¢5 094
1
