GEAR SHIFTING

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

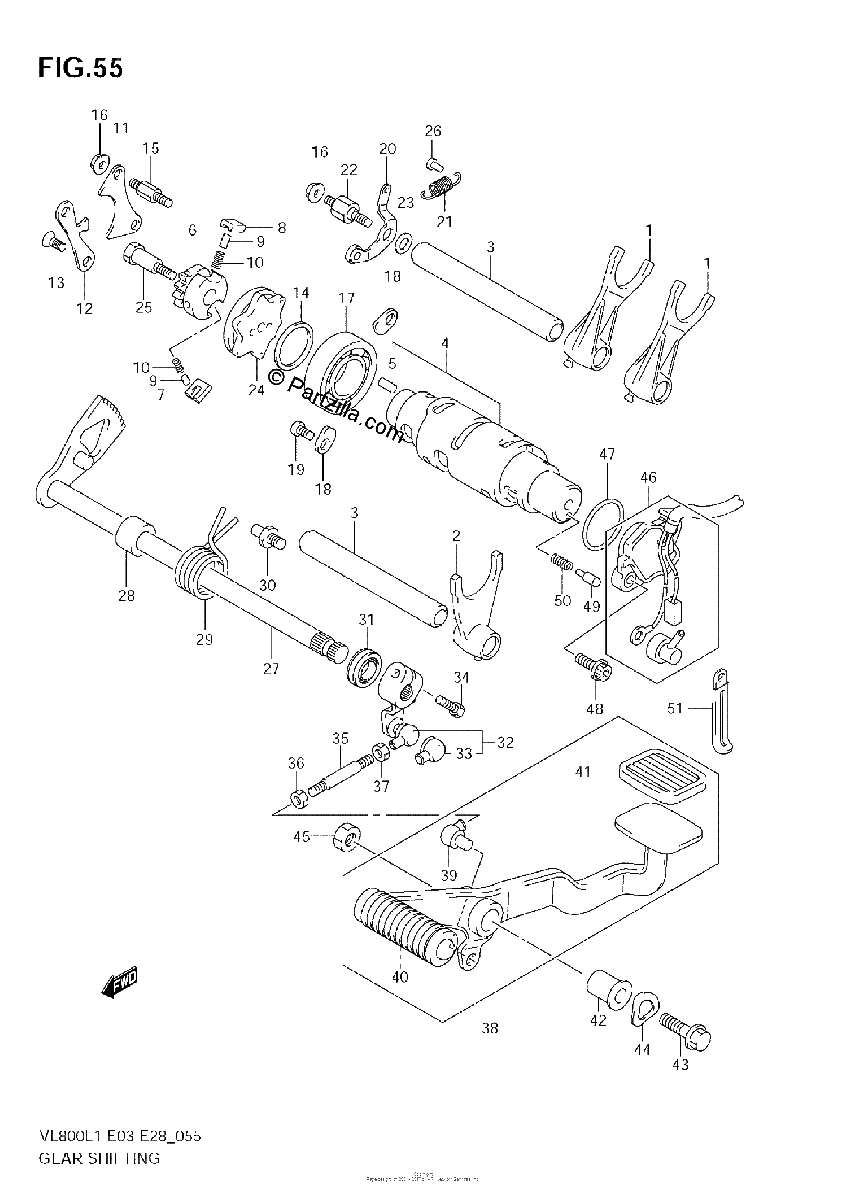

Diagrama de GEAR SHIFTING

Repuestos

#1
25211-38A10
FORK, GEAR SHIFTING NO.1
No Disponible
1
#2
25221-38A10
FORK, GEAR SHIFTING NO.2
No Disponible
1
#3
25411-38A00
SHAFT, GEAR SHIFTING FORK
$39.47¢19 737
1
#4
25310-41F00
CAM, GEAR SHIFTING
$355.25¢177 625
1
#5
04221-04089
.PIN
$1.44¢719
1
#6
25322-31310
GEAR, CAM DRIVEN
$36.35¢18 175
1
#7
25323-34201
PAWL, NO.1
$8.61¢4 306
1
#8
25324-34201
PAWL, NO.2
$8.86¢4 431
1
#9
09261-05003
PIN (5X8)
$1.93¢963
1
#10
09440-04003
SPRING
$1.93¢963
1
#11
25331-38A00
LIFTER, PAWL
No Disponible
1
#12
25341-38A00
GUIDE, CAM
No Disponible
1
#13
09126-06011
SCREW (6X12)
$2.63¢1 313
1
#14
09160-25059
WASHER (25X32X3)
$8.71¢4 356
1
#15
25332-38A10
BOSS, SHIFT PAWL LIFTER
No Disponible
1
#16
08316-1006A
NUT
$2.85¢1 425
1
#17
09262-25006
BEARING (25X47X8)
$30.02¢15 013
1
#18
24741-21A00
RETAINER, BEARING
$3.65¢1 825
1
#19
09125-06110
SCREW (6X12)
$2.78¢1 388
1
#20
25350-38A00
STOPPER, CAM
No Disponible
1
#21
09443-09027
SPRING
$5.16¢2 581
1
#22
25355-38A10
SUPPORT, CAM STOPPER
No Disponible
1
#23
08211-06141
WASHER
$2.09¢1 044
1
#24
25380-38A02
PLATE, STOPPER
No Disponible
1
#25
25312-38A00
PIN, SHIFT CAM
$7.49¢3 744
1
#26
09223-04004
RIVET
No Disponible
1
#27
25510-38A00
SHAFT, GEAR SHIFTING
$144.79¢72 394
1
#28
09180-12068
SPACER (12X20X15.3)
$3.43¢1 713
1
#29
09444-26013
SPRING
$3.70¢1 850
1
#30
25671-01011
STOPPER, GEAR SHIFT ARM
$5.34¢2 669
1
#31
09285-12006
OIL SEAL (12X22X9)
$7.43¢3 713
1
#32
25520-38B00
ARM, GEAR SHIFT LINK
$59.19¢29 594
1
#33
25526-47000
.COVER, DUST
$6.49¢3 244
1
#34
01547-0620A
BOLT
$2.63¢1 313
1
#35
25525-41F00
ROD, GEAR SHIFT LINK
$12.35¢6 175
1
#36
09140-06011
NUT
$1.79¢894
1
#37
08310-00067
NUT
$2.39¢1 194
1
#38
25600-41F20
LEVER ASSY, GEAR SHIFT
$184.96¢92 481
1
#39
25526-47000
.COVER, DUST
$6.49¢3 244
1
#40
25652-10F00
.RUBBER, GEAR, FR
$8.06¢4 031
1
#41
43151-01400
.RUBBER, GEAR, RR
$8.10¢4 050
1
#42
25617-41F00
SPACER, GEAR SHIFT LEVER
$30.71¢15 356
1
#43
09103-10300
BOLT (10X40)
$7.49¢3 744
1
#44
09164-18009
WASHER
$3.13¢1 563
1
#45
08310-0010B
NUT
$3.56¢1 781
1
#46
37730-41F02
BASE ASSY, GEAR SHIFT TERM
$176.66¢88 331
1
#47
09280-26005
O RING (D:2.4,ID:26.2)
$3.01¢1 506
1
#48
07120-0516A
BOLT
$2.99¢1 494
1
#49
09209-05011
PIN (5X15.5)
$2.56¢1 281
1
#50
09440-04010
SPRING
$1.93¢963
1
#51
09404-06429
CLAMP (L:45)
$2.33¢1 163
1
