RADIATOR HOSE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

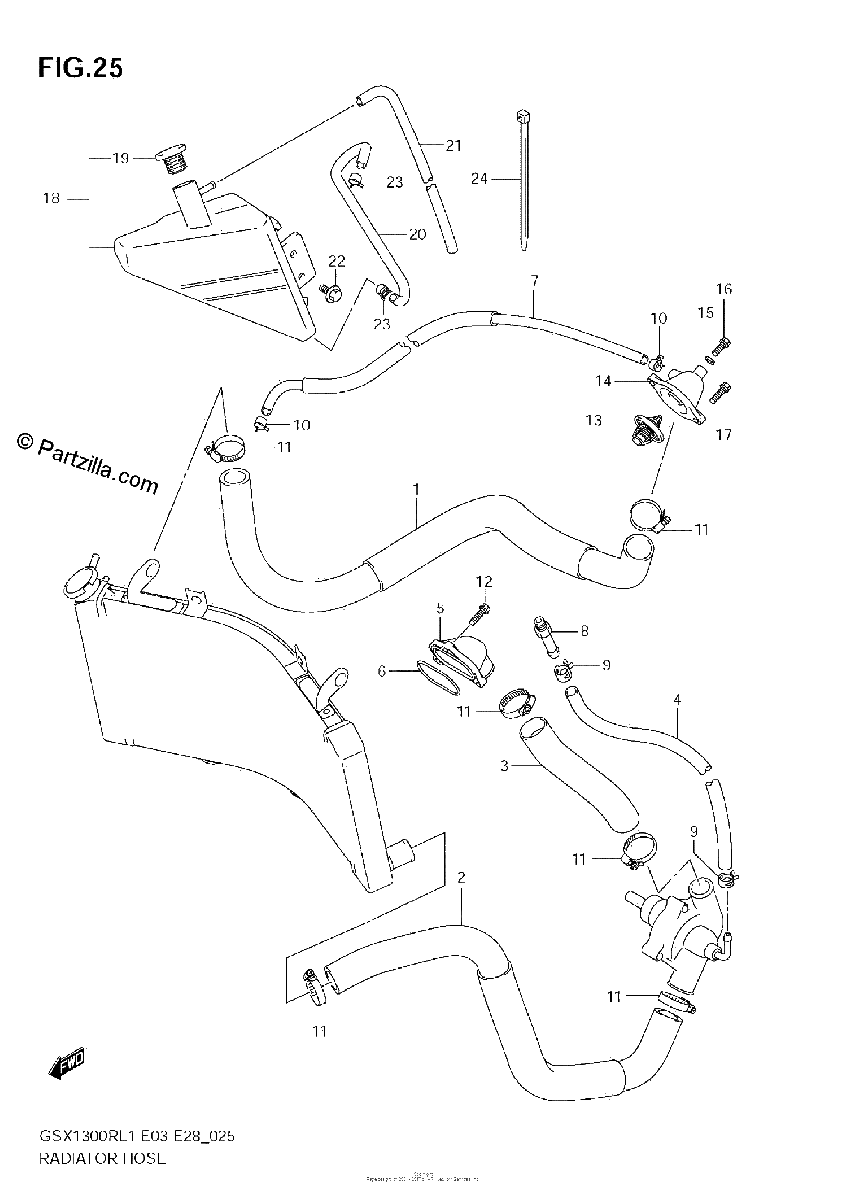

Diagrama de RADIATOR HOSE

Repuestos

#1
17851-15H00
HOSE, RADIATOR INLET
$91.94¢45 969
1
#2
17852-15H00
HOSE, RADIATOR OUTLET
$77.85¢38 925
1
#3
17853-24F00
HOSE, CYLINDER INLET
$24.14¢12 069
1
#4
17854-24F00
HOSE, WATER BYPASS
$30.96¢15 481
1
#5
17861-33E20
CONNECTOR
$26.90¢13 450
1
#6
17863-33E00
O RING
$4.80¢2 400
1
#7
17855-15H00
HOSE, WATER AIR BLEED
$45.54¢22 769
1
#8
09362-09011
UNION
$9.86¢4 931
1
#9
09401-12414
CLAMP
$3.89¢1 944
1
#10
09401-10409
CLIP
$2.97¢1 487
1
#11
09402-38512
CLAMP
$13.97¢6 988
1
#12
01547-0620A
BOLT
$2.63¢1 313
1
#13
17670-15H00
THERMOSTAT, WATER
$43.88¢21 938
1
#14
17661-35F00
COVER, THERMOSTAT
$68.44¢34 219
1
#15
09168-06026
GASKET (6.4X11.5X0.8)
$3.65¢1 825
1
#16
17568-50F00
BOLT, THERMOSTAT COVER AIR
$7.56¢3 781
1
#17
01547-0620A
BOLT
$2.63¢1 313
1
#18
17910-15H00
TANK ASSY, RESERVOIR
$79.74¢39 869
1
#19
17931-02FA0
.CAP
$6.64¢3 319
1
#20
17981-15H00
HOSE, RESERVER TANK INLET
$22.35¢11 175
1
#21
17982-22H00
HOSE, RESERVER TANK OVERFLOW
No Disponible
1
#22
09111-06085
BOLT (6X12)
$5.42¢2 713
1
#23
09401-08411
CLIP
$2.30¢1 150
1
#24
09407-14407
CLAMP (L:145)
$3.65¢1 825
1
