CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

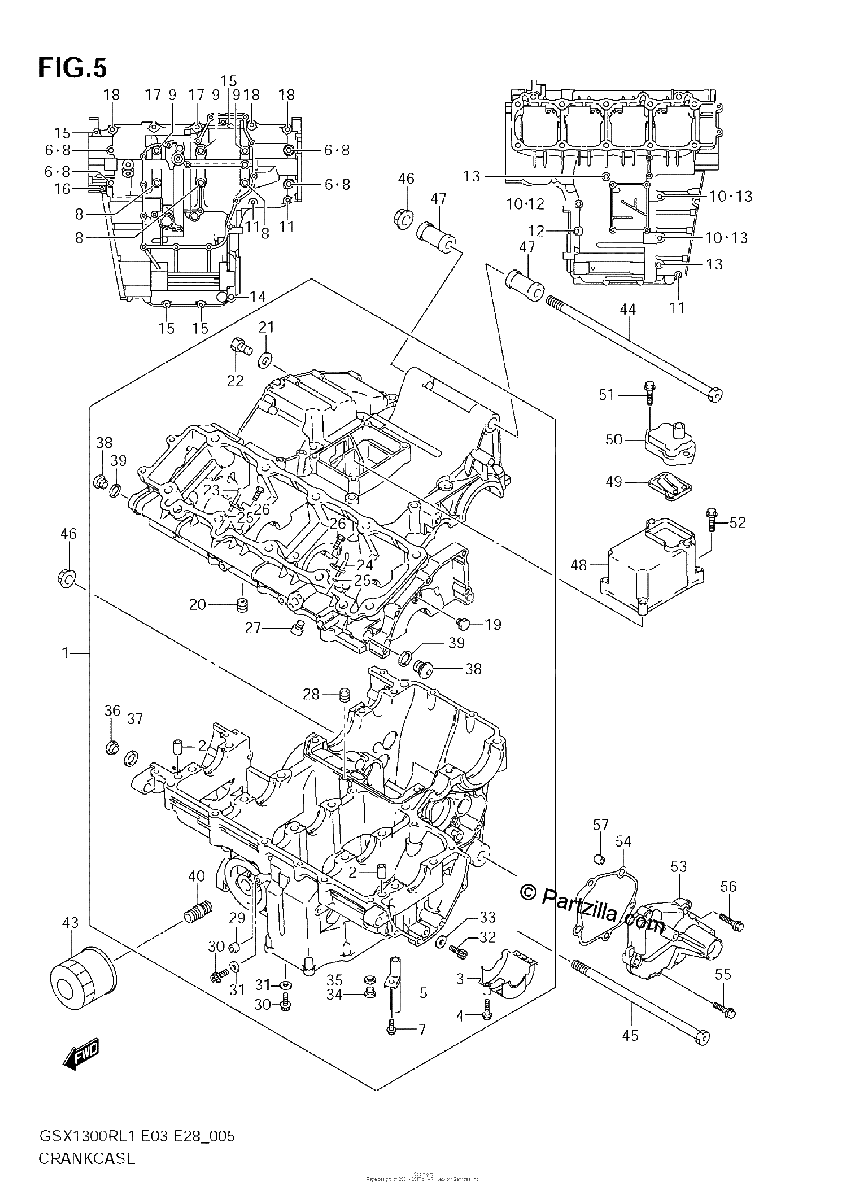

Diagrama de CRANKCASE

Repuestos

#1
11301-24891
CRANKCASE ASSY
$4761.46¢2 380 731
1
#2
11319-33E50
.PIN, CRANKCASE
$6.52¢3 262
1
#3
11323-24F10
.SEPARATOR, OIL
No Disponible
1
#4
01547-0625A
BOLT
$2.63¢1 313
1
#5
11328-24F00
.UNION, BREATHER OIL
$25.21¢12 606
1
#6
09168-10031
.GASKET (10.2X20X2.3)
$2.63¢1 313
1
#7
01547-0612A
BOLT
$2.63¢1 313
1
#8
09103-09008
.BOLT (9X95)
$9.06¢4 531
1
#9
09103-09010
.BOLT (9X115)
$13.00¢6 500
1
#10
09168-08016
.GASKET (8.2X14X1)
$2.14¢1 069
1
#11
01547-0650A
.BOLT
$3.15¢1 575
1
#12
01550-0865A
.BOLT
$4.19¢2 094
1
#13
01550-0880A
.BOLT
$5.59¢2 794
1
#14
01550-1060A
.BOLT
$5.53¢2 763
1
#15
01547-0640A
.BOLT
$3.01¢1 506
1
#16
01547-0660A
.BOLT
$3.65¢1 825
1
#17
09103-08155
.BOLT (8X60)
No Disponible
1
#18
09103-08355
.BOLT (8X50)
$5.59¢2 794
1
#19
11393-33E01
JET, MAGNETO COOLING
$18.69¢9 344
1
#20
09493-20012
JET, AIR (100)
$25.56¢12 781
1
#21
09168-06023
GASKET (5.8X13X1.2)
$2.63¢1 313
1
#22
07120-0612B
BOLT
$3.65¢1 825
1
#23
11390-34E00
JET, PISTON COOLING RH
$29.04¢14 519
1
#24
11390-34E10
JET, PISTON COOLING LH
$29.04¢14 519
1
#25
09280-04004
O RING (D:1.2,ID:4)
$2.21¢1 106
1
#26
09106-06075
BOLT (6X12)
$3.25¢1 625
1
#27
09106-06076
BOLT
$3.93¢1 963
1
#28
09493-36006
JET, AIR (180)
$22.15¢11 075
1
#29
11532-46E00
JET, OIL GALLERY
$15.56¢7 781
1
#30
07120-0612B
BOLT
$3.65¢1 825
1
#31
09168-06023
GASKET (5.8X13X1.2)
$2.63¢1 313
1
#32
07130-0816B
BOLT
$5.59¢2 794
1
#33
09168-08016
.GASKET (8.2X14X1)
$2.14¢1 069
1
#34
09248-10010
PLUG (10X10)
$4.97¢2 488
1
#35
09168-10002
GASKET (10X14X3.6)
$2.48¢1 238
1
#36
09248-16012
.PLUG (16X8)
$5.46¢2 731
1
#37
09168-16002
GASKET (16X22X2)
$2.46¢1 231
1
#38
09248-14012
PLUG (14X12)
$3.65¢1 825
1
#39
11383-15H00
COVER, GEAR SHIFT
$151.54¢75 769
1
#39
09168-14004
GASKET
$2.14¢1 069
1
#40
16591-06B01
.UNION, OIL FILTER STAND
$8.40¢4 200
1
#41
12228-24F00-0D0
.BEARING, CRANK THRUST (GREEN
$13.26¢6 631
1
#42
12228-24F00-0A0
.BEARING, CRANK THRUST (RED) | LH
$17.29¢8 644
1
#42
12228-24F00-0F0
.BEARING, CRANK THRUST (WHITE
$17.94¢8 969
1
#42
12228-24F00-0E0
.BEARING, CRANK THRUST
$17.94¢8 969
1
#42
12228-24F00-0D0
.BEARING, CRANK THRUST (GREEN
$13.26¢6 631
1
#42
12228-24F00-0C0
.BEARING, CRANK THRUST (BLUE)
$17.16¢8 581
1
#42
12228-24F00-0B0
.BEARING, CRANK THRUST (BLACK
$17.16¢8 581
1
#43
16510-07J00
FILTER ASSY, ENGINE OIL
$15.61¢7 806
1
#44
09103-12066
BOLT (12X320)
$50.03¢25 013
1
#45
09103-12067
BOLT (12X243)
$34.60¢17 300
1
#46
09159-12054
NUT
$11.47¢5 738
1
#47
11611-24F00
SPACER, ENGINE MOUNT
$36.13¢18 063
1
#48
11331-15H00
COVER, BREATHER
$119.75¢59 875
1
#49
13150-01H01
VALVE ASSY, BREATHER REED
$94.38¢47 188
1
#50
11372-21H00
COVER, REED VALVE
$25.96¢12 981
1
#51
01547-0620A
BOLT
$2.63¢1 313
1
#52
01547-0630A
BOLT
$3.01¢1 506
1
#54
11485-24F00
GASKET
$7.77¢3 887
1
#55
01547-0625A
BOLT
$2.63¢1 313
1
#56
01547-0635A
BOLT
$3.01¢1 506
1
#57
04211-09149
PIN
$2.14¢1 069
1
