CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

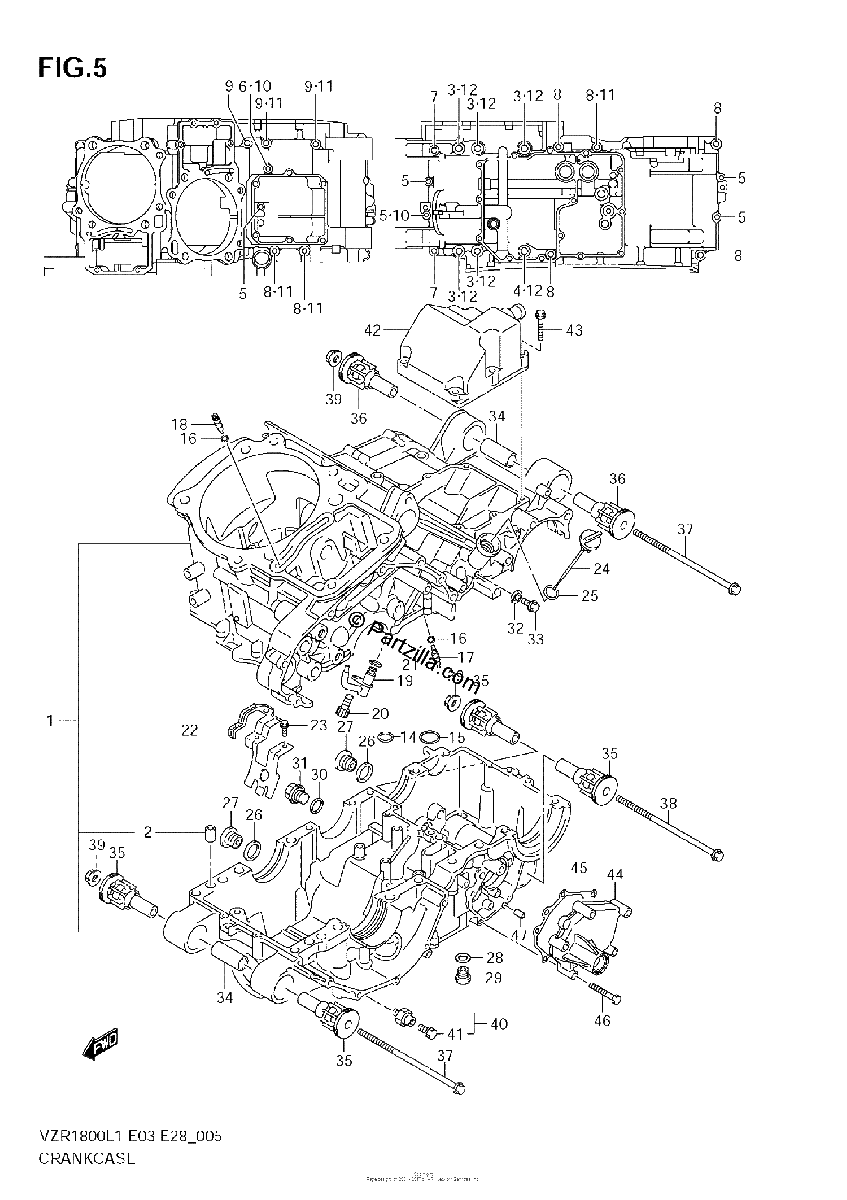

Diagrama de CRANKCASE

Repuestos

#1
11300-48864
CRANKCASE SET
$5367.37¢2 683 686
1
#2
11319-33E50
.PIN, CRANKCASE
$6.00¢3 001
1
#3
09103-10408
BOLT (10X100)
No Disponible
1
#4
09103-10406
.BOLT (10X115)
No Disponible
1
#5
01547-0645A
BOLT
$2.91¢1 455
1
#6
01547-0670A
.BOLT
$3.36¢1 679
1
#7
07130-0850A
.BOLT
$5.04¢2 519
1
#8
07130-0865A
.BOLT
No Disponible
1
#9
07130-0885A
.BOLT
No Disponible
1
#10
09168-06023
GASKET (5.8X13X1.2)
$2.42¢1 208
1
#11
09168-08016
.GASKET (8.2X14X1)
$1.97¢983
1
#12
09168-10031
.GASKET (10.2X20X2.3)
$2.42¢1 208
1
#13
12228-48G00-0A0
.WASHER, CRANK THRUST (RED) | SEE ILLUSTRATION ON
$16.50¢8 251
1
#13
12228-48G00-0B0
.WASHER, CRANK THRUST (BLACK) | SEE ILLUSTRATION ON
No Disponible
1
#13
12228-48G00-0D0
.WASHER, CRANK THRUST (GREEN) | SEE ILLUSTRATION ON
No Disponible
1
#13
12228-48G00-0E0
.WASHER, CRANK THRUST (YELLOW | SEE ILLUSTRATION ON
$16.50¢8 251
1
#13
12228-48G00-0F0
.WASHER, CRANK THRUST (WHITE) | SEE ILLUSTRATION ON
No Disponible
1
#13
12228-48G00-0C0
.WASHER, CRANK THRUST (BLUE) | SEE ILLUSTRATION ON
$16.50¢8 251
1
#14
09280-08012
O RING (D:1.9,ID:7.8)
$3.98¢1 989
1
#15
09280-12009
O RING (D:1.9,ID:12.6)
$3.44¢1 719
1
#16
09280-04004
O RING (D:1.2,ID:4)
$2.04¢1 018
1
#17
09493-80005
JET(8)
$19.63¢9 815
1
#18
09493-80005
JET(8)
$19.63¢9 815
1
#19
11390-48G00
JET, PISTON COOLING
$81.97¢40 986
1
#20
09106-06075
BOLT (6X12)
$2.99¢1 495
1
#21
09280-05007
O RING (D:1.2,ID:4.7)
$2.32¢1 162
1
#22
11521-48G00
PLATE, OIL SEPARATOR
No Disponible
1
#23
01547-0612A
BOLT
$2.42¢1 208
1
#24
11971-48G01
GAUGE, OIL LEVEL
$15.90¢7 952
1
#25
09280-17003
O RING (D:3.1,ID:16.8)
$1.97¢983
1
#26
09168-16002
GASKET (16X22X2)
$2.27¢1 133
1
#27
09248-16012
.PLUG (16X8)
$5.03¢2 513
1
#28
09168-14004
GASKET
$1.97¢983
1
#29
09248-14012
PLUG (14X12)
$3.36¢1 679
1
#30
09168-12002
GASKET (12.1X16.2X3.7)
$1.90¢949
1
#31
09247-12006
PLUG (12X10)
$3.36¢1 679
1
#32
09168-06023
GASKET (5.8X13X1.2)
$2.42¢1 208
1
#33
01547-0612A
BOLT
$2.42¢1 208
1
#34
11611-48G00
SPACER, ENG MTG
No Disponible
1
#35
11652-10G00
BUSH
$34.53¢17 267
1
#36
11652-10G30
BUSH, ENG MTG
$27.80¢13 898
1
#37
09103-10041-A05
BOLT (10X215)
$11.24¢5 618
1
#38
09103-10118
BOLT (10X195)
$13.79¢6 894
1
#39
08319-3110A
NUT
$3.27¢1 633
1
#40
37820-33D10
SWITCH ASSY, OIL PRESSURE
$30.34¢15 168
1
#41
37822-33D00
.BOLT
$5.40¢2 702
1
#42
11330-48G00
COVER, BREATHER
No Disponible
1
#43
01547-0630A
BOLT
$2.77¢1 386
1
#44
11371-48G00
COVER, GEAR SHIFT
No Disponible
1
#45
11485-48G00
GASKET
$8.43¢4 215
1
#46
01547-0645A
BOLT
$2.91¢1 455
1
#47
04211-09149
PIN
$1.97¢983
1
