REAR SWINGING ARM RM Z450 L0

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

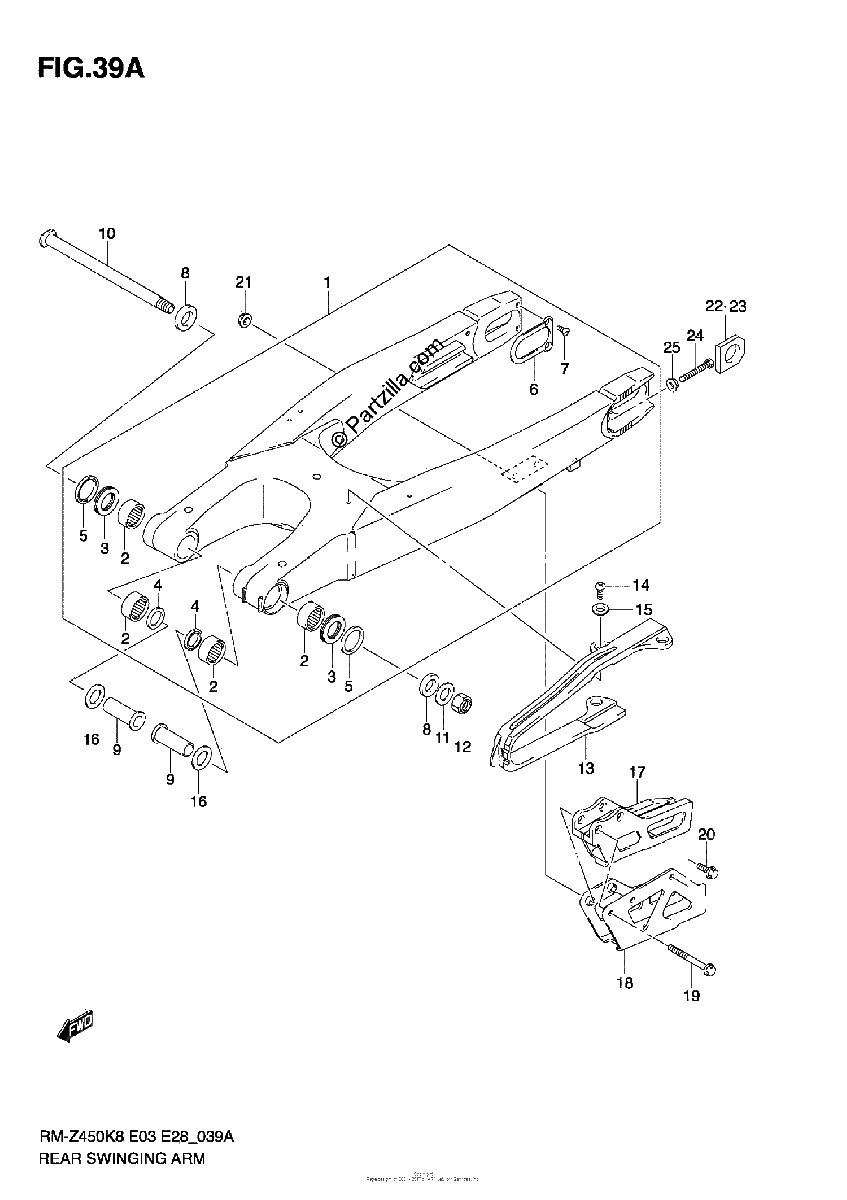

Diagrama de REAR SWINGING ARM RM Z450 L0

Repuestos

#1
61000-28H10
SWINGING ARM ASSY, REAR
$1674.88¢837 438
1
#2
09263-22070
.BEARING (22X29X15)
$34.79¢17 394
1
#3
09263-22064
.BEARING (22X35X2)
$36.38¢18 188
1
#4
09285-22001
.OIL SEAL (22X29X4)
$4.50¢2 250
1
#5
61262-36E00
.SEAL (29.2X37X4)
$8.49¢4 244
1
#6
61128-35G00
PLATE, SWINGINGARM, REAR
No Disponible
1
#7
02122-0410B
.SCREW
$2.05¢1 025
1
#8
61251-36E01
SPACER, PIVOT OUTER
$16.14¢8 069
1
#9
61252-37F01
SPACER, PIVOT INNER
$59.60¢29 800
1
#10
61211-35G00
SHAFT, PIVOT
$114.06¢57 031
1
#11
08322-0116B
WASHER
$3.56¢1 781
1
#12
09159-16007
NUT
$14.81¢7 406
1
#13
61273-35G10
BUFFER, CHAIN TOUCH DEFENSE
$72.19¢36 094
1
#14
02112-0508B
SCREW
$2.41¢1 206
1
#15
09169-05022
WASHER
$4.19¢2 094
1
#16
08211-22365
WASHER
$7.84¢3 919
1
#17
61341-35G10
GUIDE, CHAIN
$77.78¢38 888
1
#18
61342-37F00
PLATE, CHAIN GUIDE
$87.03¢43 513
1
#19
09103-06242
BOLT (6X45)
$3.65¢1 825
1
#20
09103-06233
BOLT (6X12) | OPT
$2.74¢1 369
1
#21
08316-1006B
NUT
$3.25¢1 625
1
#22
61445-28H11
WASHER, CHAIN ADJUSTER RH
$65.71¢32 856
1
#23
61446-35G01
WASHER, CHAIN ADJUSTER LH
$49.41¢24 706
1
#24
09100-08287
BOLT (8X50)
$3.65¢1 825
1
#25
09159-08034
NUT
$2.10¢1 050
1
