FRONT FORK BRACKET

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

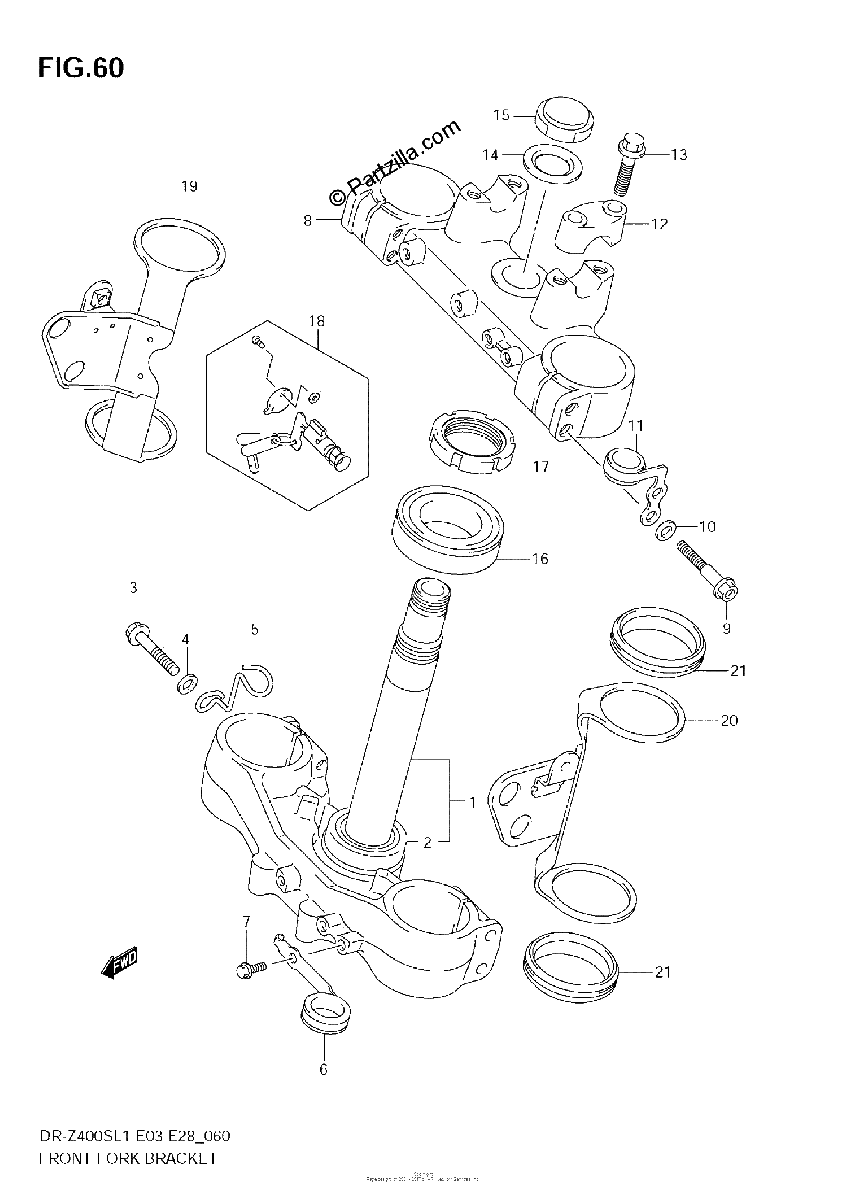

Diagrama de FRONT FORK BRACKET

Repuestos

#1
51410-29F20
BRACKET, FRONT FORK UNDER
$785.09¢392 544
1
#2
09265-30014
BEARING (30X52X16)
$54.91¢27 456
1
#3
51328-36E00
BOLT, UNDER
$9.21¢4 606
1
#4
51316-36E00
WASHER
$4.55¢2 275
1
#5
34938-29E01
GUIDE, SPEEDMETER CABLE
$15.97¢7 988
1
#6
51453-29F20
GUIDE, CABLE
$51.91¢25 956
1
#7
58627-27C40
BOLT, PROTECTOR
$4.63¢2 313
1
#8
51311-29F00
BRACKET, FRONT FORK UPPER
$520.56¢260 281
1
#9
51328-29F20
BOLT, UPPER
$14.50¢7 250
1
#10
51316-36E00
WASHER
$4.55¢2 275
1
#11
51288-29F20
GUIDE, CABLE
$51.91¢25 956
1
#12
56211-29F00
HOLDER, HANDLE BAR UPPER
$41.13¢20 563
1
#13
51321-27C40
.BOLT, HANDLE HOLDER
$6.08¢3 038
1
#14
51356-29E00
WASHER, STEM HEAD
$18.76¢9 381
1
#15
51353-27G00
NUT
$45.65¢22 825
1
#16
09265-30014
BEARING (30X52X16)
$54.91¢27 456
1
#17
51631-28E00
NUT, STEERING
$38.98¢19 488
1
#18
51900-30901
LOCK ASSY, STEERING
$105.79¢52 894
1
#19
51530-29F00
BRACKET COMP, HEADLAMP HSG RH
$82.54¢41 269
1
#20
51540-29F00
BRACKET COMP, HEADLAMP HSG LH
$82.54¢41 269
1
#21
51553-29F00
DAMPER, HEADLAMP HSG BRACKET
$11.60¢5 800
1
