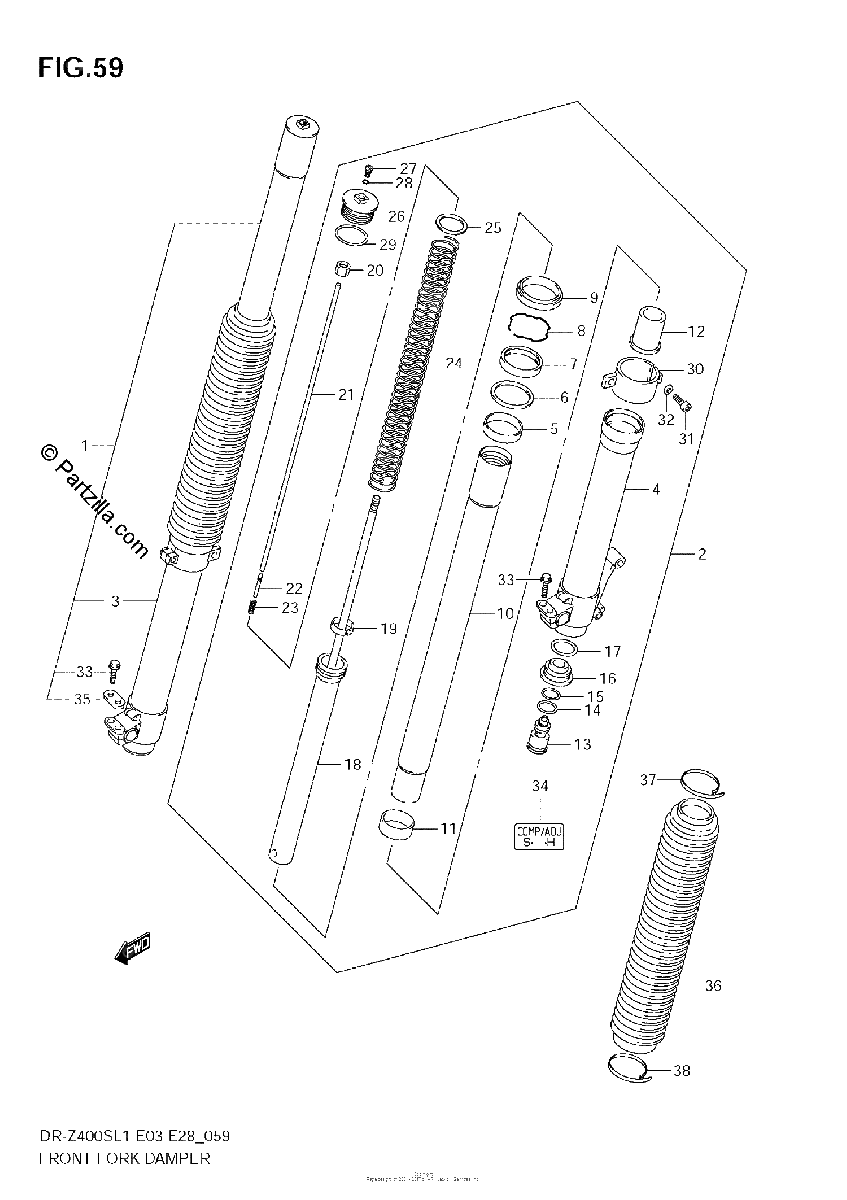

FRONT FORK DAMPER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
DAMPER ASSY, FRONT FORK RH
No Disponible
#2
DAMPER ASSY, FRONT FORK LH
$3653.96¢1 826 981
#3
.TUBE, OUTER RH
$1492.54¢746 269
#4
.TUBE, OUTER LH
$1492.54¢746 269
#5
.BUSH, GUIDE
$37.31¢18 656
#6
..SPACER, SEAL
$12.66¢6 331
#7
..SEAL, OIL
$48.85¢24 425
#8
..RING, OIL SEAL STOPPER
$11.40¢5 700
#9
.SEAL, DUST
$52.16¢26 081
#10
.TUBE, INNER
$870.77¢435 388
#11
.BUSH, SLIDE
$52.15¢26 075
#12
.PIECE, OIL LOCK
No Disponible
#13
.BOLT, CENTER
$419.69¢209 844
#14
..O RING
$7.90¢3 950
#15
..O RING
$7.90¢3 950
#16
.PLATE, END
No Disponible
#17
.O RING
$8.40¢4 200
#18
.ROD, FRONT DAMPER
No Disponible
#19
..BUSH, SLIDE
$30.56¢15 281
#20
..NUT
No Disponible
#21
..ROD, PUSH
No Disponible
#22
..NEEDLE
$29.02¢14 513
#23
..SPRING, PUSH ROD
$8.50¢4 250
#24
.SPRING, FR (K=8.63N/0.88KG)
No Disponible
#25
.JOINT, SPRING
No Disponible
#26
.BOLT, FORK
$213.75¢106 875
#27
..BOLT, PLUG
$19.41¢9 706
#28
...O RING
$5.79¢2 894
#29
.O RING
$9.38¢4 688
#30
.HOLDER, BOOT
$63.31¢31 656
#31
.BOLT
$3.98¢1 988
#32
.WASHER (5.5X10X1)
$2.52¢1 263
#33
.BOLT, HANDLE HOLDER
$6.08¢3 038
#34
.LABEL
$8.41¢4 206
#35
.COVER, AXLE HOLDER
$10.96¢5 481
#36
BOOT (BLACK)
$112.44¢56 219
#37
BAND, BOOT UPPER
$29.47¢14 737
#38
BAND, BOOT LOWER
$26.81¢13 406
