REAR SWINGING ARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

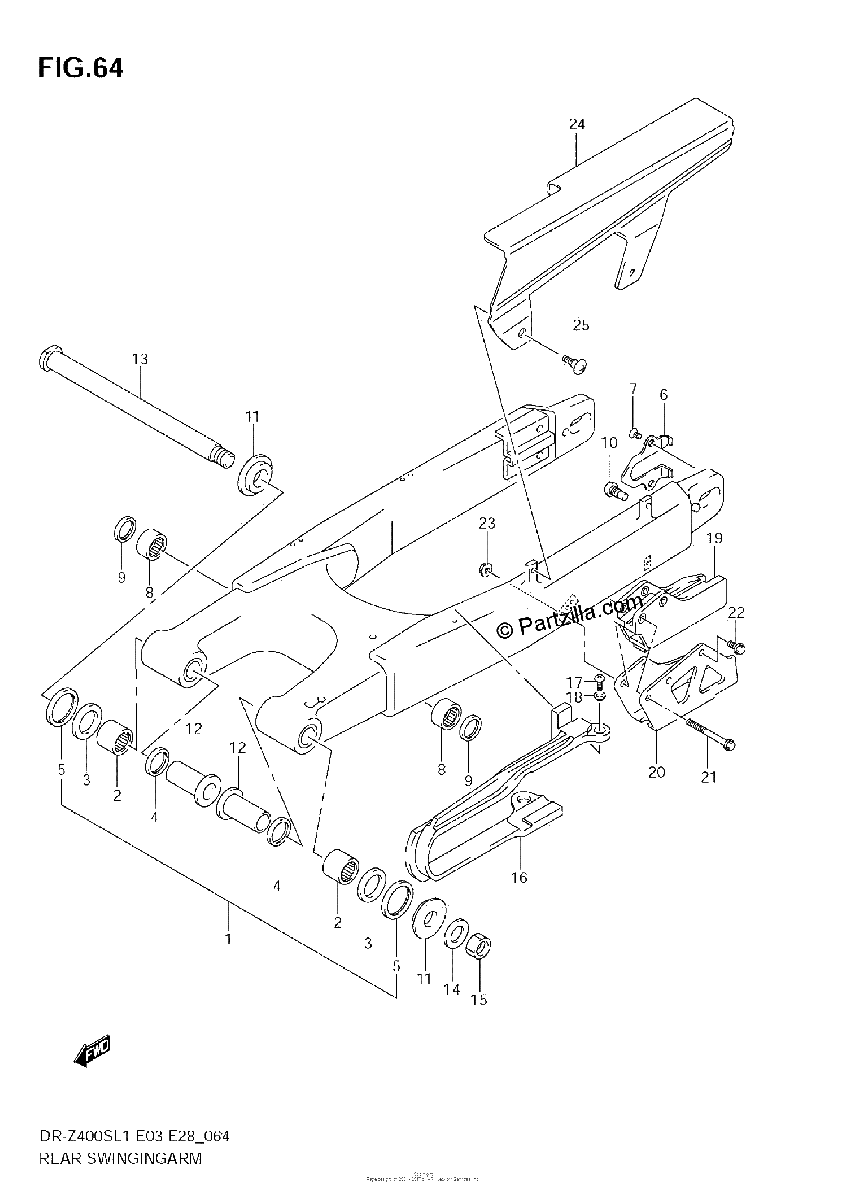

Diagrama de REAR SWINGING ARM

Repuestos

#1
61000-29F10
SWINGING ARM ASSY, REAR
No Disponible
1
#2
09263-22017
.BEARING (22X29X30)
$24.43¢12 213
1
#3
09263-22064
.BEARING (22X35X2)
$33.46¢16 732
1
#4
09285-22001
.OIL SEAL (22X29X4)
$4.14¢2 070
1
#5
61262-36E00
.SEAL (29.2X37X4)
$7.81¢3 904
1
#6
61128-29E00
.PLATE, REAR SWINGING ARM AXL
$20.69¢10 344
1
#7
09126-05009
.SCREW (5X8)
$2.75¢1 374
1
#8
09263-20086
.BEARING (20X27X15)
$17.81¢8 907
1
#9
62624-14500
SEAL, DUST (19X27X4)
$6.77¢3 387
1
#10
61431-13E00
STOPPER, CHAIN ADJUSTER
$14.34¢7 170
1
#11
61250-44E00
SPACER, SWINGING ARM PIVOT
$24.30¢12 150
1
#12
61252-36E00
SPACER, SWINGING ARM PIVOT
$66.96¢33 482
1
#13
61211-29F00
SHAFT, REAR SWINGING ARM PIVO
$101.87¢50 933
1
#14
08322-0116B
WASHER
$3.28¢1 639
1
#15
09159-16007
NUT
$13.63¢6 814
1
#16
61273-29F00
BUFFER, CHAIN TOUCH DEFENSE
$72.55¢36 277
1
#17
02112-0508B
SCREW
$2.22¢1 110
1
#18
09169-05022
WASHER
$3.85¢1 926
1
#19
61341-35G00
GUIDE, CHAIN
$52.72¢26 358
1
#20
61342-37F00
PLATE, CHAIN GUIDE
$80.06¢40 032
1
#21
01547-0650B
BOLT
$3.32¢1 662
1
#22
01547-0612B
BOLT
$1.46¢730
1
#23
08319-3106B
NUT
$2.96¢1 478
1
#24
61310-34E00
CASE, CHAIN
$117.64¢58 822
1
#25
09139-06083
SCREW (6X16)
$2.69¢1 346
1
