FRAME COVER VL800T E28

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

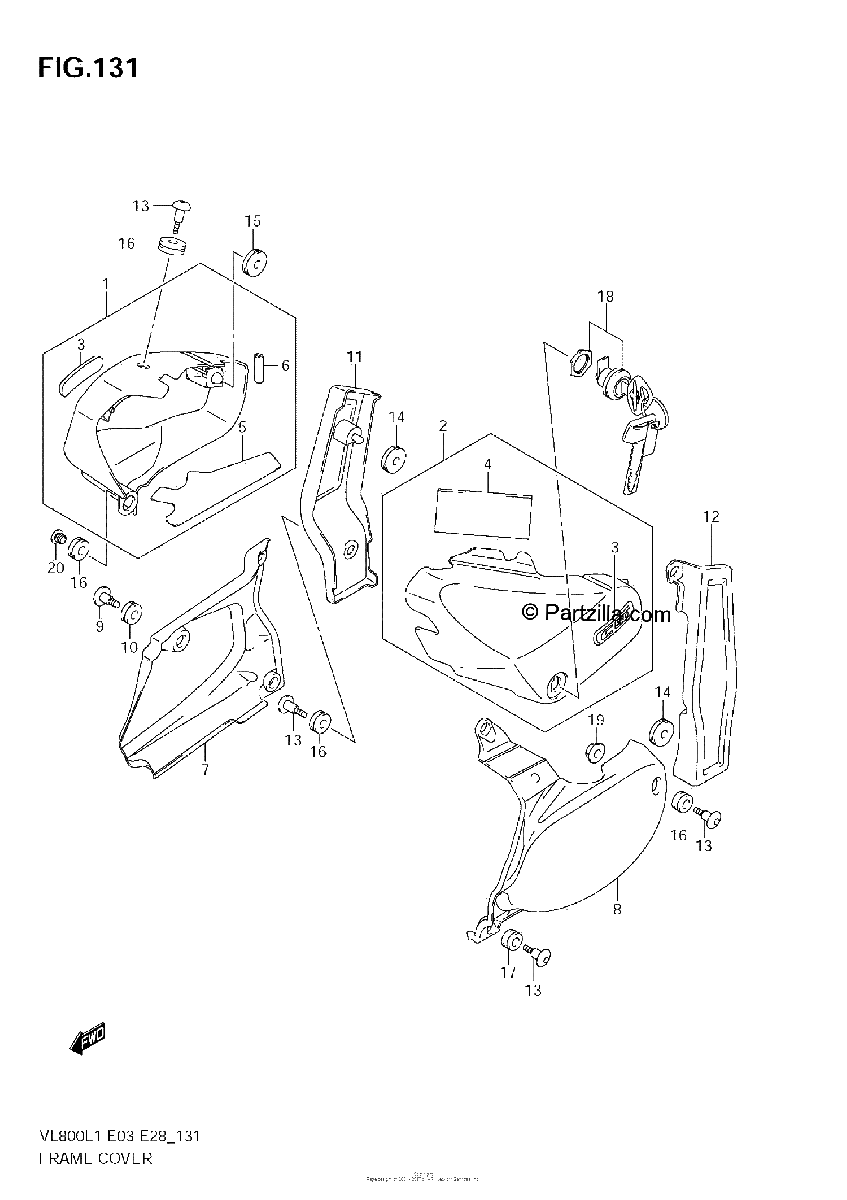

Diagrama de FRAME COVER VL800T E28

Repuestos

#1
47110-41FN0-YUE
COVER, FRAME RH (SILVER) | FOR JEY
No Disponible
1
#1
47110-41FN1-YVB
COVER, FRAME RH (BLACK) | FOR JEZ
$299.52¢149 759
1
#2
47210-41FM1-YVB
COVER, FRAME LH (BLACK) | FOR JEZ
No Disponible
1
#2
47210-41FM1-YUE
COVER,SIDE LH ( | FOR JEY
No Disponible
1
#3
68131-41F50
EMBLEM, C50T
$39.50¢19 751
1
#4
47217-41F00
.CUSHION, LH
$14.89¢7 446
1
#5
47166-41F00
.SHIELD, FRAME COVER RH
$22.16¢11 080
1
#6
94631-35F00
.MOLDING, RH
$9.18¢4 589
1
#7
47130-41F00
COVER, SIDE LOWER RH
$169.40¢84 698
1
#8
47231-41F00
COVER, SIDE LOWER LH
$474.63¢237 314
1
#9
47133-43H00
SCREW
$6.80¢3 398
1
#10
09320-08021
CUSHION | RH
$2.04¢1 018
1
#11
47141-41F01-019
COVER, SIDE REAR RH (BLACK)
$171.29¢85 646
1
#12
47241-41F00-019
COVER, SIDE REAR LH (BLACK)
$171.29¢85 646
1
#13
09139-06126
SCREW (6X20)
$4.37¢2 185
1
#14
09320-08018
CUSHION | LH
$3.36¢1 679
1
#15
09320-08028
CUSHION
$3.36¢1 679
1
#16
09320-09501
CUSHION | RH
$2.47¢1 236
1
#17
09320-09045
CUSHION
$2.48¢1 242
1
#18
95700-07860
LOCK SET, FUEL LID
$83.29¢41 647
1
#19
08316-1006B
NUT
$2.99¢1 495
1
#20
09250-09001
CAP (OD:14)
$1.86¢932
1
