TURNSIGNAL LAMP VL800T E3

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

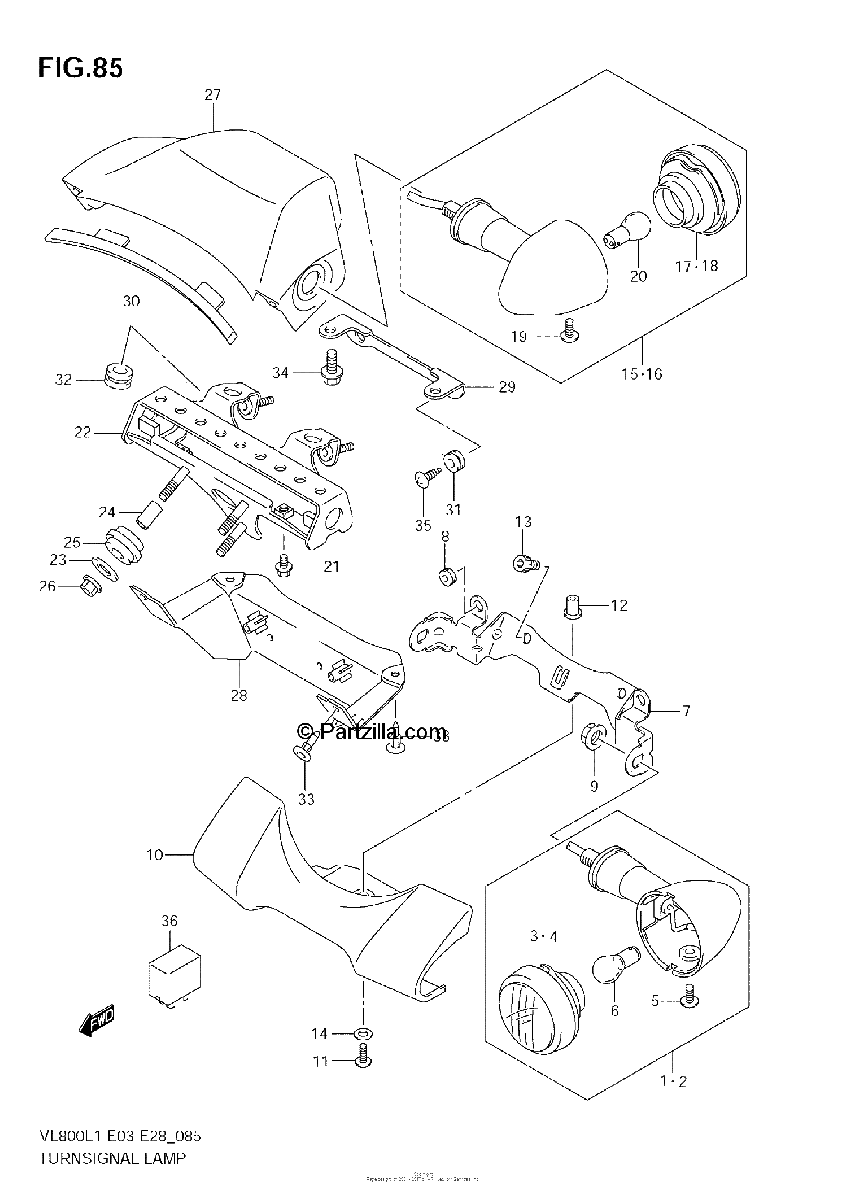

Diagrama de TURNSIGNAL LAMP VL800T E3

Repuestos

#1
35601-41FC0
FRONT TURNSIGNAL ASSY, RH
$183.02¢91 512
1
#2
35602-41FC0
FRONT TURNSIGNAL ASSY, LH
$182.13¢91 063
1
#3
35610-38AA0
.LENS
$37.51¢18 756
1
#4
35630-38AA0
.LENS
$38.05¢19 025
1
#5
35623-38AA0
.SCREW (4X10)
$6.09¢3 044
1
#6
09471-12128
BULB (12V,21/5W)
$7.92¢3 963
1
#7
35616-41FA2
BRACKET
$81.85¢40 925
1
#8
09320-06016
CUSHION
$2.76¢1 381
1
#9
08310-0010B
NUT
$3.56¢1 781
1
#10
35641-41F02
COVER, FRONT TURNSIGNAL
$121.78¢60 888
1
#11
09139-05042
SCREW (5X16)
$3.39¢1 694
1
#12
09159-05019
NUT
$8.39¢4 194
1
#13
07130-0812B
BOLT
$5.38¢2 688
1
#14
09160-05048
WASHER (5.5X14X1.2)
$2.29¢1 144
1
#15
35603-38AH0
LAMP ASSY, REAR RH
$189.21¢94 606
1
#16
35604-38AH0
LAMP ASSY, REAR LH
$182.13¢91 063
1
#17
35610-38AH0
.LENS, RH
$52.65¢26 325
1
#18
35630-38AH0
.LENS, LH
$52.65¢26 325
1
#19
35623-38AA0
.SCREW (4X10)
$6.09¢3 044
1
#20
09471-12045
.BULB (12V,21W) | FOR CLEAR
$3.85¢1 925
1
#21
09103-06507
BOLT (6X14)
$5.66¢2 831
1
#22
35620-43H01
BRACKET, RR TURN
$72.88¢36 438
1
#23
09160-06077
WASHER (6.5X20X1.2)
$2.46¢1 231
1
#24
09180-06195
SPACER (6.4X10X18)
$3.43¢1 713
1
#25
09320-10504
CUSHION
$7.60¢3 800
1
#26
08316-1006A
NUT
$2.85¢1 425
1
#27
35621-43H00
COVER, RR TURN UPPER
$150.06¢75 031
1
#28
35622-06J00
COVER, RR TURN LOWER
$57.73¢28 863
1
#29
35623-43H00
BRACKET, RR TURN COVER
$14.28¢7 138
1
#30
35657-43H00
GASKET, RR TURN COVER
$11.19¢5 594
1
#31
09320-06016
CUSHION
$2.76¢1 381
1
#32
09320-08066
CUSHION
$9.69¢4 844
1
#33
09409-06314-5PK
CLIP (BLACK)
$3.60¢1 800
1
#34
01550-0612A
BOLT
$2.56¢1 281
1
#35
03541-0510A
SCREW
$1.86¢931
1
#36
38610-03F00
RELAY ASSY, TURNSIGNAL LAMP
$106.81¢53 406
1
