ELECTRICAL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

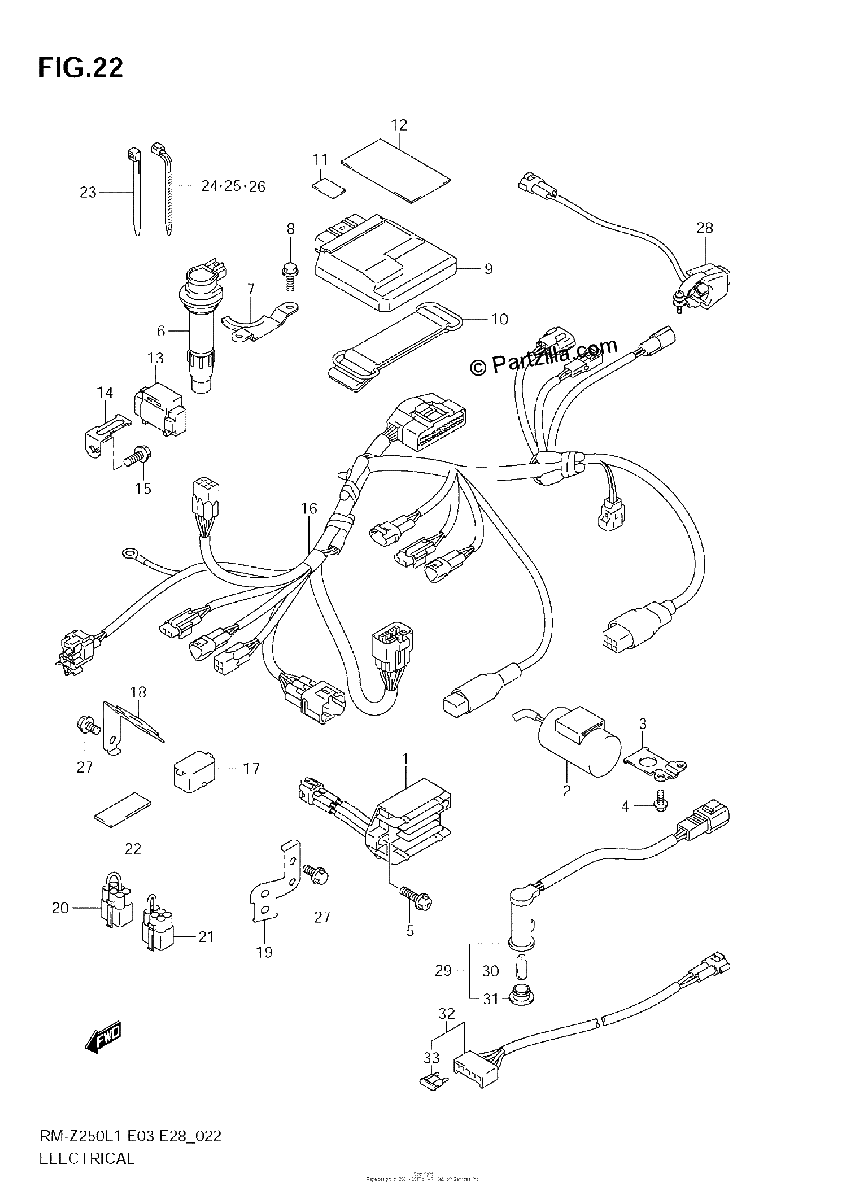

Diagrama de ELECTRICAL

Repuestos

#1
32800-28H00
RECTIFIER ASSY
$224.02¢112 010
1
#2
33640-28H00
CONDENSER ASSY
$176.05¢88 027
1
#3
33641-28H00
BRACKET, CONDENSER
No Disponible
1
#4
09103-06188
BOLT (6X10)
$3.51¢1 754
1
#5
02162-0620C
BOLT
$2.07¢1 035
1
#6
33410-49H00
COIL ASSY, IGNITION
$214.53¢107 266
1
#7
33414-49H00
RETAINER, SPARK PLUG CAP
$13.42¢6 710
1
#8
01550-0610B
BOLT
$2.91¢1 455
1
#9
32920-49H20
CONTROL UNIT, FI
$842.41¢421 205
1
#10
32942-14301
BAND, FI CONTROL UNIT
$13.05¢6 526
1
#11
33652-36000
PROTECTOR (30X50X3.0)
$2.85¢1 426
1
#12
33652-36000
PROTECTOR (30X50X3.0)
$2.85¢1 426
1
#13
33960-06G10
SENSOR ASSY, FUEL CUT
$98.64¢49 318
1
#14
33961-49H00
BRACKET, FUEL CUT SENSOR
$8.54¢4 272
1
#15
02162-0616B
BOLT, ADJUST
$2.47¢1 236
1
#16
36610-49H10
HARNESS, WIRING
$552.98¢276 489
1
#17
36654-46H00
CAP, TS
$15.66¢7 831
1
#18
36672-49H00
BRACKET, COUPLER
No Disponible
1
#19
36672-49H10
BRACKET, COUPLER
$11.76¢5 882
1
#20
36852-28H00
WIRE, SHORT
$16.36¢8 182
1
#21
36852-49H00
WIRE, SHORT
$12.58¢6 290
1
#22
36920-45G00
PROTECTOR, WIRING HARNESS
$3.77¢1 886
1
#23
09407-10403
CLAMP (L:95)
No Disponible
1
#24
09407-11401
CLAMP (L:95)
$3.19¢1 593
1
#25
09407-14403
CLAMP (L:125)
$2.69¢1 346
1
#26
09407-18402
CLAMP (L:165)
$2.66¢1 328
1
#27
01550-0610A
.BOLT
$2.36¢1 179
1
#28
37820-49H00
SWITCH ASSY, ENGINE STOP
$73.68¢36 840
1
#29
36380-28H00
LAMP ASSY, FI INDICATOR | OPT
$96.31¢48 156
1
#30
09471-12028
.BULB (12V,3.4W) | OPT
$2.37¢1 185
1
#31
36321-28H00
.LENS (RED) | OPT
$13.13¢6 567
1
#32
36890-28H00
WIRE, BATTERY | OPT
$57.16¢28 578
1
#33
09481-10101
.FUSE (10A) | OPT
$2.50¢1 248
1
