FUEL TANK RM Z450 K8 K9 L0

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

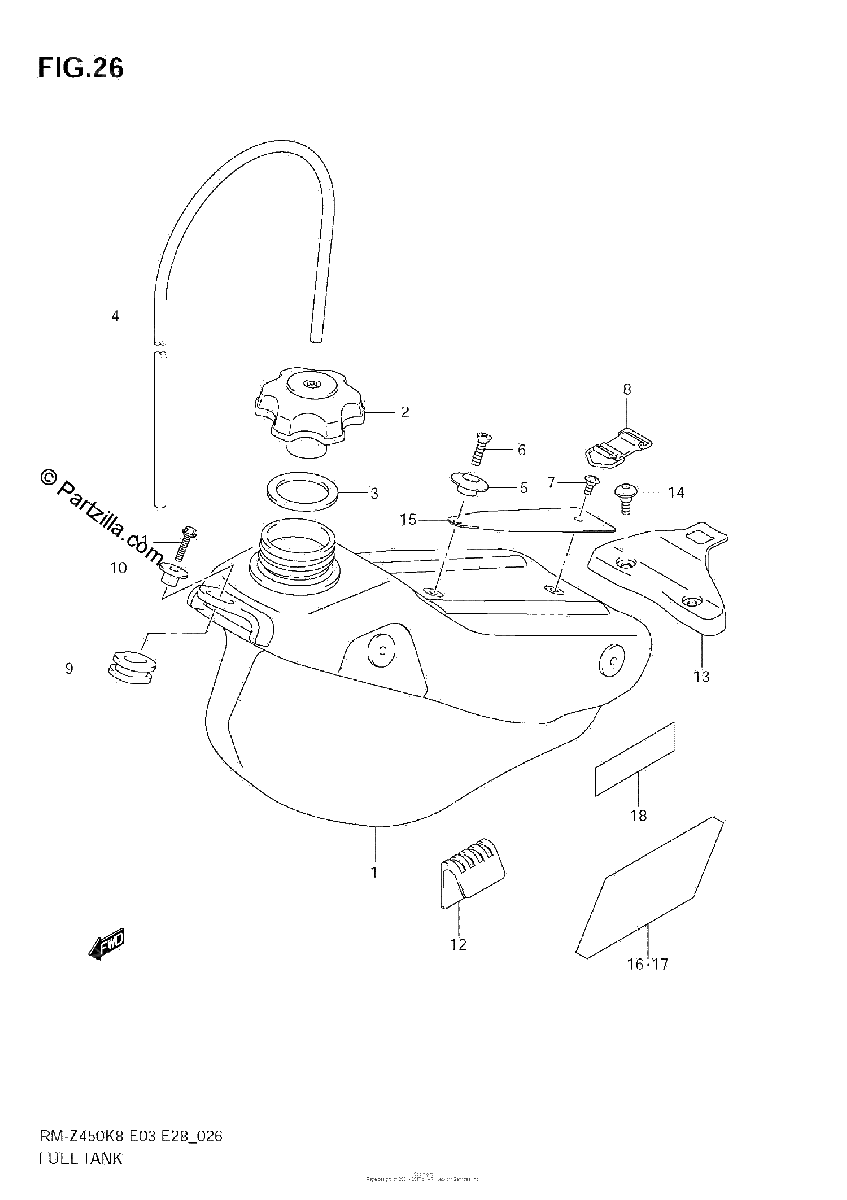

Diagrama de FUEL TANK RM Z450 K8 K9 L0

Repuestos

#1
44110-28H01
TANK, FUEL
No Disponible
1
#2
44210-37F00
CAP, FUEL TANK FILLER
$42.92¢21 459
1
#3
44248-27C00
GASKET
$4.75¢2 375
1
#4
44420-44AR0
HOSE,5X8.2X600 | L:600-260
No Disponible
1
#5
44132-37F10
HOOK, SEAT FRONT
$14.34¢7 170
1
#6
02122-0620B
SCREW
$2.33¢1 167
1
#7
09139-06134
SCREW (6X13.5)
$3.19¢1 593
1
#8
44560-27C00
BAND, FUEL TANK REAR
$8.44¢4 220
1
#9
44541-28H00
CUSHION, TANK FRONT
$6.27¢3 134
1
#10
44134-35G02
SPACER
$26.91¢13 455
1
#11
09103-06213
BOLT (6X30)
$2.93¢1 466
1
#12
44543-35G00
CUSHION, TANK SIDE
$11.60¢5 802
1
#13
44542-28H00
CUSHION, REAR | K8/K9
No Disponible
1
#13
44542-28H10
CUSHION, TANK REAR
$15.18¢7 590
1
#14
09139-05074
BOLT (5X13)
$3.09¢1 547
1
#15
44280-28H00
PROTECTOR, FUEL TANK
$56.37¢28 187
1
#16
17795-28H00
PROTECTOR, TANK COVER RH
$25.39¢12 696
1
#17
17796-28H00
PROTECTOR, TANK COVER LH
$25.39¢12 696
1
#18
17797-28H00
PROTECTOR, TANK COVER
$16.39¢8 194
1
