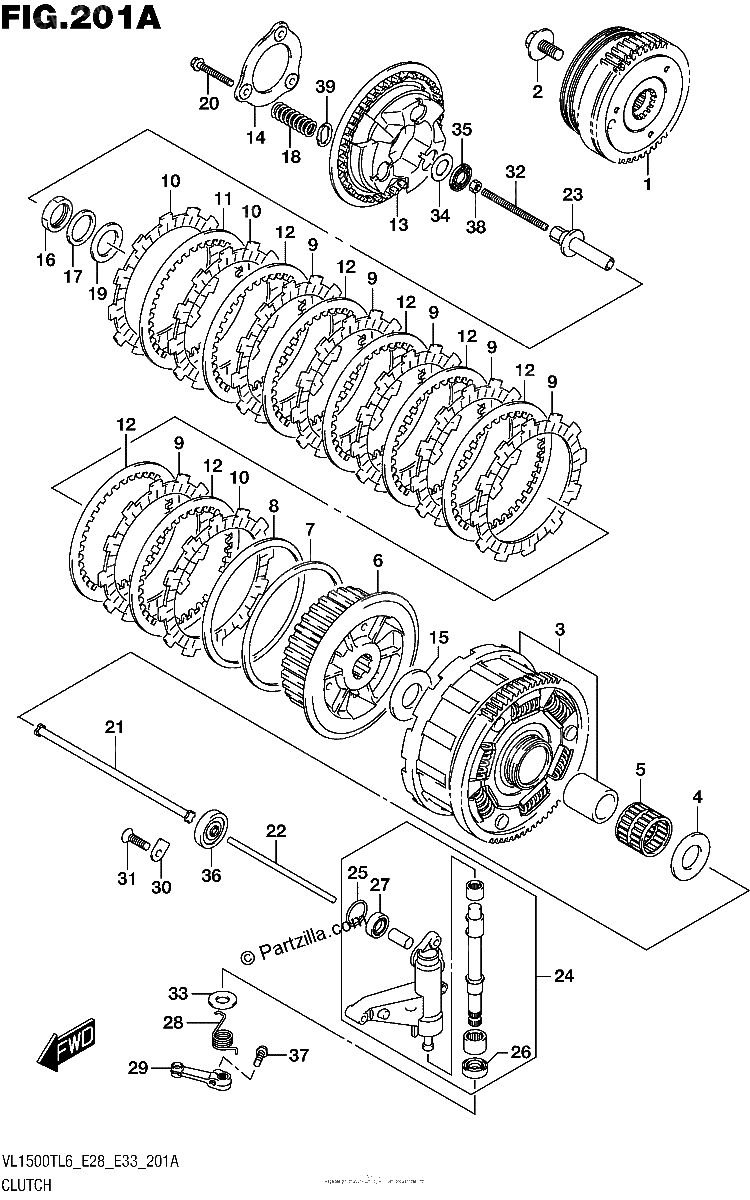

CLUTCH
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
GEAR, PRIMARY DRIVE (NT:54)
No Disponible
#2
BOLT (14X28)
$21.14¢10 568
#3
GEAR ASSY,PRIMA
$679.21¢339 607
#4
WASHER (25X52X2.5)
$8.58¢4 289
#5
BEARING (35X40X39.8)
$38.44¢19 222
#6
HUB, CLUTCH SLEEVE
$199.78¢99 889
#7
SEAT, WAVE WASHER
$15.64¢7 820
#8
WASHER, CLUTCH PLATE WAVE
$17.49¢8 746
#9
PLATE, CLUTCH DRIVE NO.1
$27.24¢13 622
#10
PLATE, CLUTCH DRIVE NO.2
$27.24¢13 622
#11
PLATE, CLUTCH DRIVEN (T:2.0)
$18.32¢9 160
#12
PLATE, CLUTCH DRIVEN (T:2.0)
$12.72¢6 360
#13
DISC, CLUTCH PRESSURE
$122.84¢61 421
#14
WASHER
$24.13¢12 064
#15
WASHER (25X50X2.5)
$12.74¢6 371
#16
NUT
$14.28¢7 142
#17
WASHER
$5.55¢2 777
#18
SPRING, CLUTCH
$7.80¢3 899
#19
SHIM (25X38X1)
$3.47¢1 737
#20
BOLT, SPRING SUPPORT
$5.09¢2 547
#21
ROD, CLUTCH
$25.08¢12 541
#22
ROD, CLUTCH PUSH LH
No Disponible
#23
PIECE, CLUTCH PUSH
$60.87¢30 435
#24
CAMSHAFT SET, CLUTCH RELEASE
No Disponible
#25
.O RING (D:2.5, ID:21) | NOT ILLUSTRATED
$2.27¢1 133
#26
OIL SEAL (10X20X6)
$8.63¢4 313
#27
OIL SEAL (10X17X5)
$3.65¢1 823
#28
SPRING, CLUTCH RELEASE RETURN
$4.91¢2 455
#29
ARM, CLUTCH RELEASE
$113.16¢56 580
#30
RETAINER, BEARING
$3.36¢1 679
#31
SCREW (6X12)
$2.42¢1 208
#32
SCREW (6X73)
$7.44¢3 720
#33
WASHER (10.5X24X1)
$2.23¢1 116
#34
WASHER (15.5X28X1)
$4.21¢2 105
#35
BEARING (15X28X2)
$8.97¢4 485
#36
OIL SEAL (6X18X5)
$13.63¢6 814
#37
BOLT
$2.42¢1 208
#38
NUT
$2.20¢1 098
#39
SEAT, CLUTCH SPRING
$19.18¢9 591
