FRAME COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

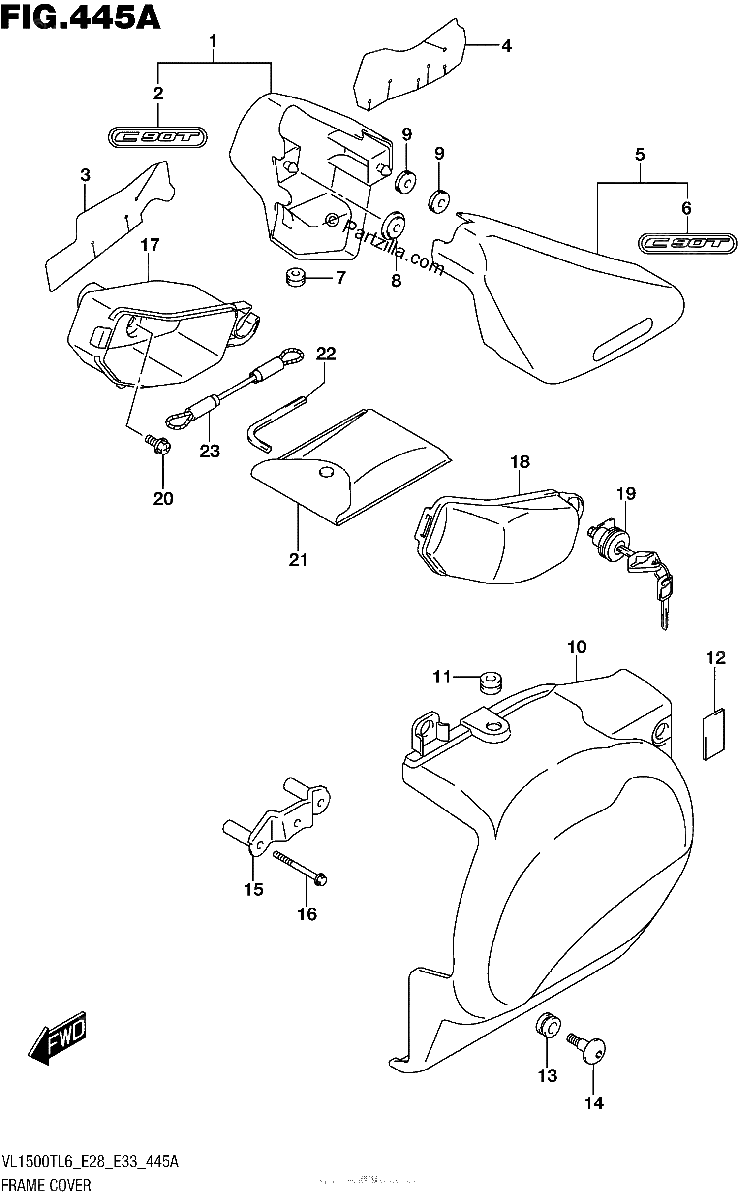

Diagrama de FRAME COVER

Repuestos

#1
47110-06JA0-YVB
COVER, SIDE RH (BLACK)
$135.38¢67 688
1
#2
68131-06JA0-YES
.EMBLEM, in.C90Tin. (SILVER)
$25.10¢12 550
1
#3
47166-06J10
SHIELD, SIDE COVER RH
No Disponible
1
#4
47166-06J20
SHIELD, SIDE COVER RH
$7.63¢3 813
1
#5
47210-06JA0-YVB
COVER, SIDE LH (BLACK)
$142.16¢71 081
1
#6
68131-06JA0-YES
.EMBLEM, in.C90Tin. (SILVER)
$25.10¢12 550
1
#7
47167-06J00
CUSHION, SIDE COVER LOWER RH
$10.31¢5 156
1
#8
47191-06J00
CUSHION, SIDE COVER FRONT
$6.54¢3 269
1
#9
09320-08018
CUSHION | LH
$3.65¢1 825
1
#10
47231-40H00
COVER, LOWER LH
$432.78¢216 388
1
#11
09320-06504
CUSHION
$5.83¢2 913
1
#12
51827-01A00
CUSHION | LH
$8.31¢4 156
1
#13
09320-09016
CUSHION
$2.56¢1 281
1
#14
09139-06190
BOLT (6X20)
$4.91¢2 456
1
#15
47250-06J00
BRACKET, LOWER COVER LH
$39.35¢19 675
1
#16
01547-0650A
.BOLT
$3.15¢1 575
1
#17
92211-06J00
BODY, LUGGAGE BOX
No Disponible
1
#18
92212-06J00
LID
No Disponible
1
#19
95700-07860
LOCK SET, FUEL LID
$90.54¢45 269
1
#20
09111-06107
BOLT (6X12)
$3.36¢1 681
1
#21
09800-21056
TOOL ASSY
$53.56¢26 781
1
#22
09816-00050
SPANNER, 6 HEXAGON
$6.60¢3 300
1
#23
95740-06G00
CABLE, HELMET LOCK
$33.13¢16 563
1
