FRAME CENTER COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

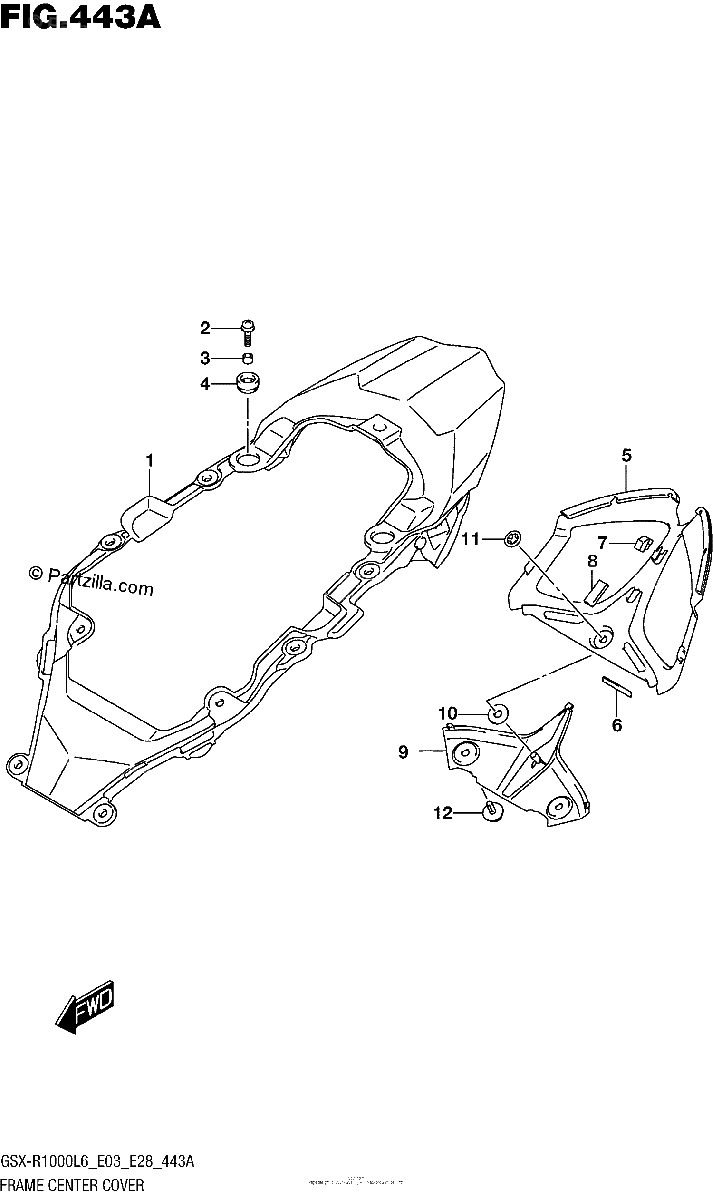

Diagrama de FRAME CENTER COVER

Repuestos

#2
09136-06056
SCREW (6X16)
$2.74¢1 369
1
#3
09180-06283
SPACER (6.5X10X7)
$2.46¢1 231
1
#4
47312-37H00
CUSHION
$3.65¢1 825
1
#6
47912-47H00
CUSHION
$10.13¢5 063
1
#7
47913-37H00
CUSHION
$7.46¢3 731
1
#8
94413-08F00
CUSHION
$4.63¢2 313
1
#10
09320-06501
CUSHION
$4.72¢2 363
1
#1-1
47310-47H00-YSF
COVER, FRAME CENTER (BLUE) | FOR YSF
No Disponible
1
#11
09148-05012
NUT
$2.30¢1 150
1
#1-2
47310-47H00-YWW
COVER, FRAME CENTER (WHITE) | FOR AJP
$402.85¢201 425
1
#12
09409-06328
CLIP
$3.80¢1 900
1
#1-3
47310-47H00-YVB
COVER, FRAME CENTER (BLACK) | FOR JSP
$458.90¢229 450
1
#13
SPECIAL-NOTE
COLOR :
No Disponible
1
#5-1
47911-47H00-YKV
COVER, REAR CENTER (BLACK) | FOR YSF
$128.59¢64 294
1
#5-2
47911-47H00-YVZ
COVER, REAR CENTER (BLACK) | FOR AJP,JSP
$125.04¢62 519
1
#9-1
47921-47H00-YSF
COVER, REAR LOWER (BLUE) | FOR YSF
$116.15¢58 075
1
#9-2
47921-47H00-YWW
COVER, REAR LOWER (RED) | FOR AJP
$112.96¢56 481
1
#9-3
47921-47H00-YVB
COVER, REAR LOWER (BLACK) | FOR JSP
$112.69¢56 344
1
