FRAME COVER YSF

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

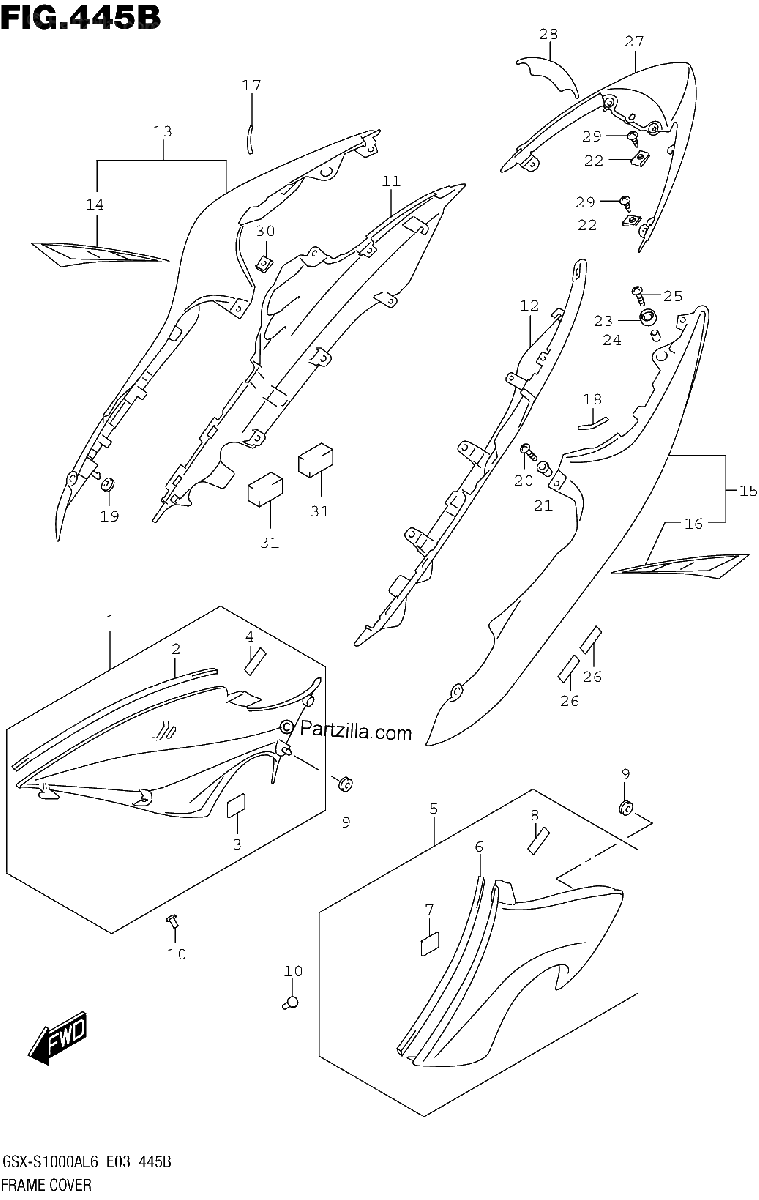

Diagrama de FRAME COVER YSF

Repuestos

#1
47110-04K00
COVER, FRAME FRONT RH
$90.29¢45 144
1
#2
44277-37H00
.CUSHION, SIDE COVER
$6.35¢3 175
1
#3
44572-13G00
FASTENER
$13.19¢6 594
1
#4
94476-38C00
CUSHION, HEAT SHIELD
No Disponible
1
#5
47210-04K00
COVER, FRAME FRONT LH
$69.84¢34 919
1
#6
44277-37H00
.CUSHION, SIDE COVER
$6.35¢3 175
1
#7
44572-13G00
FASTENER
$13.19¢6 594
1
#8
94476-38C00
CUSHION, HEAT SHIELD
No Disponible
1
#9
09320-06504
CUSHION
$5.83¢2 913
1
#10
09409-10314
CLIP
$2.59¢1 294
1
#11
47131-04K00
COVER, FRAME REAR LOWER RH
$33.09¢16 544
1
#12
47231-04K00
COVER, FRAME REAR LOWER LH
$33.69¢16 844
1
#13
47120-04K00-YSF
COVER, FRAME REAR UPPER RH (BLUE)
$254.65¢127 325
1
#14
68135-04K10-A3F
.TAPE, FRAME COVER RH
$21.72¢10 862
1
#15
47220-04K00-YSF
COVER, FRAME REAR UPPER LH (BLUE)
$249.94¢124 969
1
#16
68145-04K10-A3F
.TAPE, FRAME COVER LH
$21.72¢10 862
1
#17
47313-04K01
TAPE, FRAME COVER RH
No Disponible
1
#18
47314-04K01
TAPE, FRAME COVER LH
$17.19¢8 594
1
#19
09320-08028
CUSHION
$3.65¢1 825
1
#20
02142-1520A
SCREW
No Disponible
1
#21
09159-05019
NUT
$8.39¢4 194
1
#22
09148-05047
NUT
$2.64¢1 319
1
#23
47312-37H00
CUSHION
$3.65¢1 825
1
#24
09180-06283
SPACER (6.5X10X7)
$2.46¢1 231
1
#25
09136-06105
SCREW (6X20)
$2.59¢1 294
1
#26
94443-06G00
TAPE, REAR FENDER
$3.88¢1 938
1
#27
47311-04K00-YKV
COVER, FRAME CENTER (BLACK) *{FOR PGZ}*
$149.34¢74 669
1
#28
47312-04K00
TAPE, FRAME COVER CTR
$17.19¢8 594
1
#29
03541-0512B
SCREW
$2.30¢1 150
1
#30
09148-05047
NUT
$2.64¢1 319
1
#31
17798-39G00
CUSHION, CENTER
$7.97¢3 988
1
