WIRING HARNESS VL800L6 E03

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

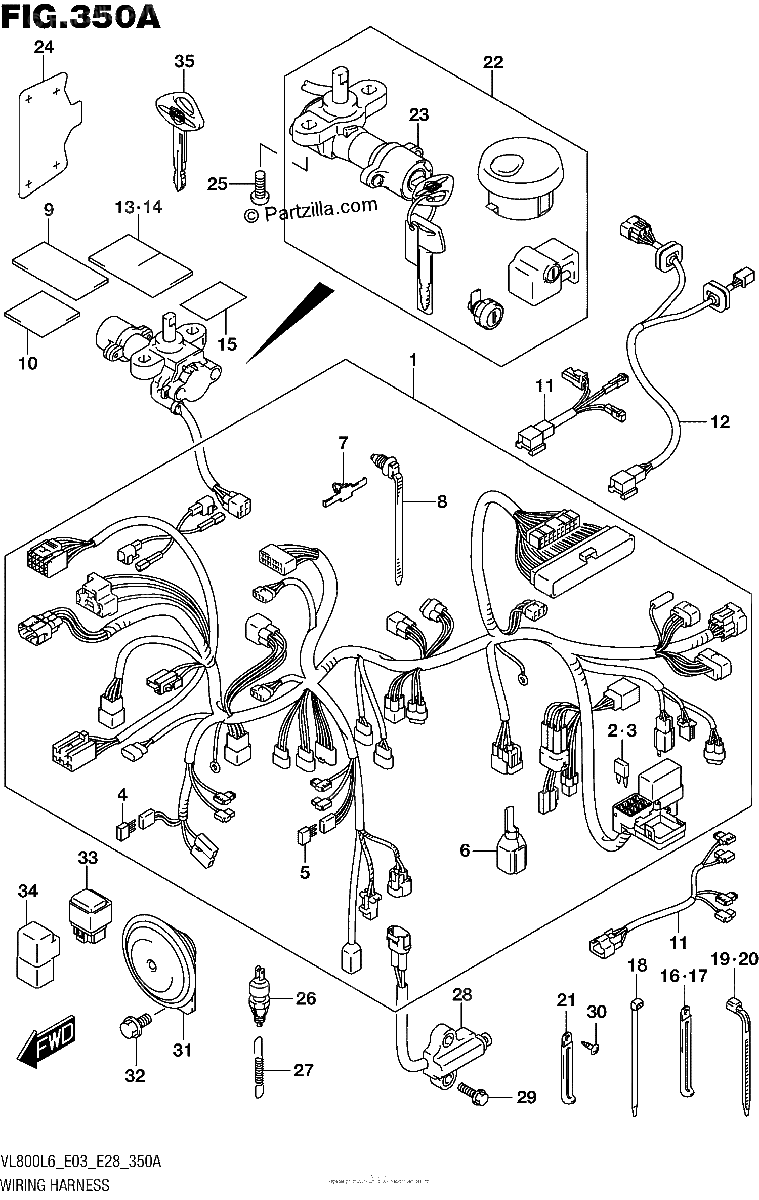

Diagrama de WIRING HARNESS VL800L6 E03

Repuestos

#1
36610-43H60
HARNESS, WIRING
$953.02¢476 513
1
#2
09481-10501
.FUSE (10A)
$2.70¢1 350
1
#3
09481-20501
.FUSE (20A)
No Disponible
1
#4
32800-16A00
.RECTIFIER ASSY
$27.51¢13 756
1
#5
36611-38A10
.DIODE
$16.14¢8 069
1
#6
36717-41F00
.BOOT
No Disponible
1
#7
09407-05410
.CLAMP
No Disponible
1
#8
09407-17403
CLAMP (L:154)
$6.03¢3 013
1
#9
36611-16G00
TAPE, WIRING HARNESS
$4.10¢2 050
1
#10
36611-41F00
TAPE WIRING (30X50X3)
No Disponible
1
#11
36856-41F00
WIRE, REARCOMBINATIONNO.2
$49.69¢24 844
1
#12
36858-41F00
WIRE, REARCOMBINATION
$44.06¢22 031
1
#13
36920-33C00
PROTECTOR, HARNESS (30X50X3)
No Disponible
1
#14
36920-33C00
PROTECTOR, HARNESS (30X50X3)
No Disponible
1
#15
94474-17H00
PROTECTOR, WIRING HARNESS
$6.19¢3 094
1
#16
09404-06434
CLAMP (L:80 T:1.0) | SHIELD
$2.29¢1 144
1
#17
09404-06435
CLAMP (L:135)
$4.84¢2 419
1
#18
09407-14407
CLAMP (L:145)
$3.65¢1 825
1
#19
09407-18402
CLAMP (L:165)
$2.89¢1 444
1
#20
09407-19401
CLAMP (L:190)
$4.00¢2 000
1
#21
09404-06429
CLAMP (L:45)
$2.33¢1 163
1
#22
37102-41870
LOCK SET
$439.91¢219 956
1
#23
37100-41F70
.LOCK ASSY, STEERING
$204.06¢102 031
1
#24
37187-41F10
PROTECTOR, IGNITION SWITCH
$16.41¢8 206
1
#25
09139-08016
BOLT (8X20)
$3.96¢1 981
1
#26
37740-24A00
SWITCH ASSY, STOP LAMP
$21.70¢10 850
1
#27
09443-06073
SPRING
$4.07¢2 037
1
#28
37840-41F00
SWITCH ASSY, SIDE STAND
$81.48¢40 738
1
#29
01550-0620B
BOLT (6X20)
$3.10¢1 550
1
#30
03541-0512A
SCREW
$1.79¢894
1
#31
38500-41F30
HORN ASSY
$118.41¢59 206
1
#32
01550-0816A
BOLT
$3.01¢1 506
1
#33
38740-24A00
RELAY ASSY, HEADLAMP
$85.44¢42 719
1
#34
38740-24X50
RELAY ASSY, FAN MOTOR
$53.90¢26 950
1
#35
37146-41FA0
KEY, BLANK in.BOULEVARDin. | OPT
$68.35¢34 175
1
