CRANKCASE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

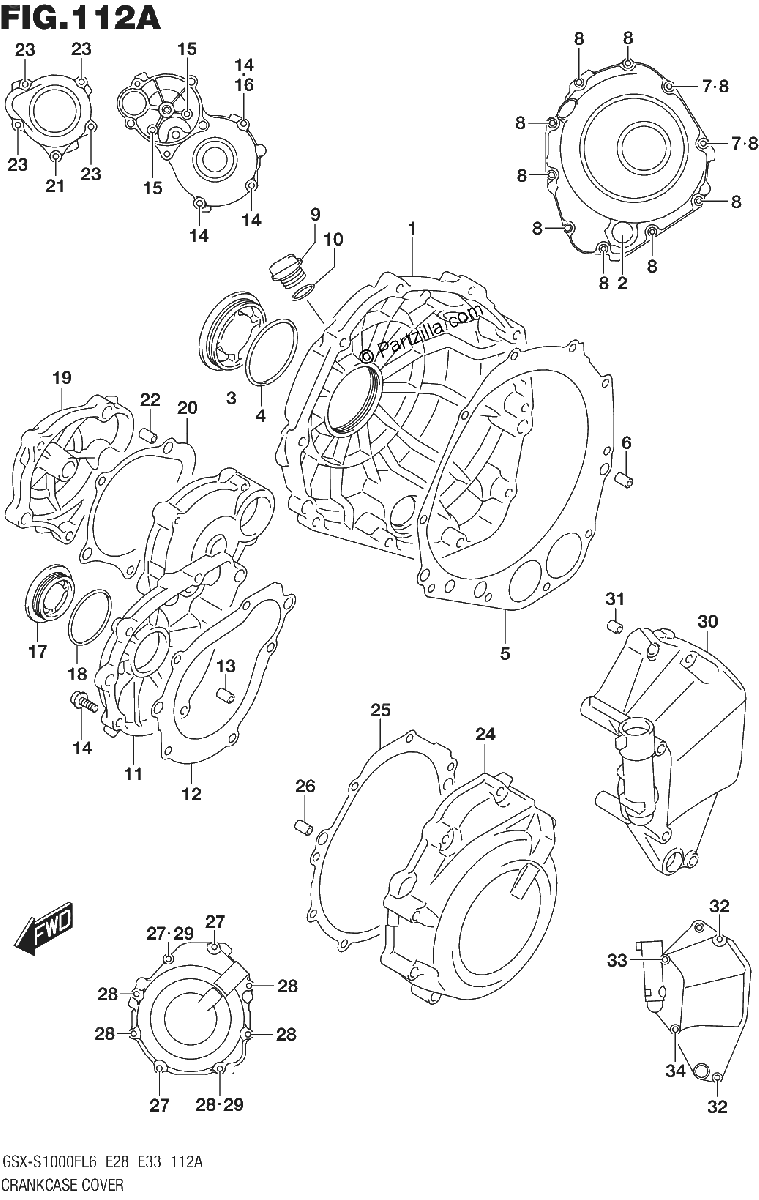

Diagrama de CRANKCASE COVER

Repuestos

#1
11340-04K00
COVER, CLUTCH
$325.28¢162 638
1
#2
11971-33210
.LENS, OIL LEVEL CHECK
$21.70¢10 850
1
#3
11342-41G10
CAP, CLUTCH RELEASE ADJUST
$29.86¢14 931
1
#4
31156-17E00
O RING
$5.49¢2 744
1
#5
11482-40F10
GASKET, CLUTCH COVER
$18.71¢9 356
1
#6
04211-09189
PIN
$2.14¢1 069
1
#7
09168-06023
GASKET (5.8X13X1.2)
$2.63¢1 313
1
#8
09103-06213
BOLT (6X30)
$3.19¢1 594
1
#9
11971-25D00
PLUG, ENGINE OIL FILLER
$6.09¢3 044
1
#10
09280-17003
O RING (D:3.1,ID:16.8)
$2.14¢1 069
1
#11
11381-04K00
COVER, STARTER CLUTCH
$230.15¢115 075
1
#12
11491-33E02
GASKET, STARTER CLUTCH COVER
$10.41¢5 206
1
#13
04211-09149
PIN
$2.14¢1 069
1
#14
09103-06212
BOLT (6X25)
$3.19¢1 594
1
#15
09103-06214
BOLT (6X35)
$3.24¢1 619
1
#16
09168-06023
GASKET (5.8X13X1.2)
$2.63¢1 313
1
#17
09259-36021
PLUG
$16.23¢8 113
1
#18
09280-33004
O RING (D:3.1,ID:32.7)
$2.92¢1 463
1
#19
11382-04K00
CAP, STARTER IDLE GEAR
$65.84¢32 919
1
#20
11492-04K00
GASKET
$8.60¢4 300
1
#21
09103-06261
BOLT (6X60)
$3.77¢1 888
1
#22
04211-09149
PIN
$2.14¢1 069
1
#23
09103-06214
BOLT (6X35)
$3.24¢1 619
1
#24
11351-04K00
COVER, MAGNETO
$190.19¢95 094
1
#25
11483-18G00
GASKET, MAGNETO COVER
$13.19¢6 594
1
#26
04211-09149
PIN
$2.14¢1 069
1
#27
09103-06213
BOLT (6X30)
$3.19¢1 594
1
#28
09103-06215
BOLT (6X40)
$3.64¢1 819
1
#29
09168-06023
GASKET (5.8X13X1.2)
$2.63¢1 313
1
#30
11361-04K00
COVER, ENGINE SPROCKET
$242.73¢121 363
1
#31
04211-09129
PIN
$2.14¢1 069
1
#32
09103-06216
BOLT (6X55)
$3.60¢1 800
1
#33
09103-06227
BOLT (6X95)
$5.47¢2 738
1
#34
09103-06263
BOLT (6X80)
$5.13¢2 563
1
