TRANSMISSION RM85L6 P03

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

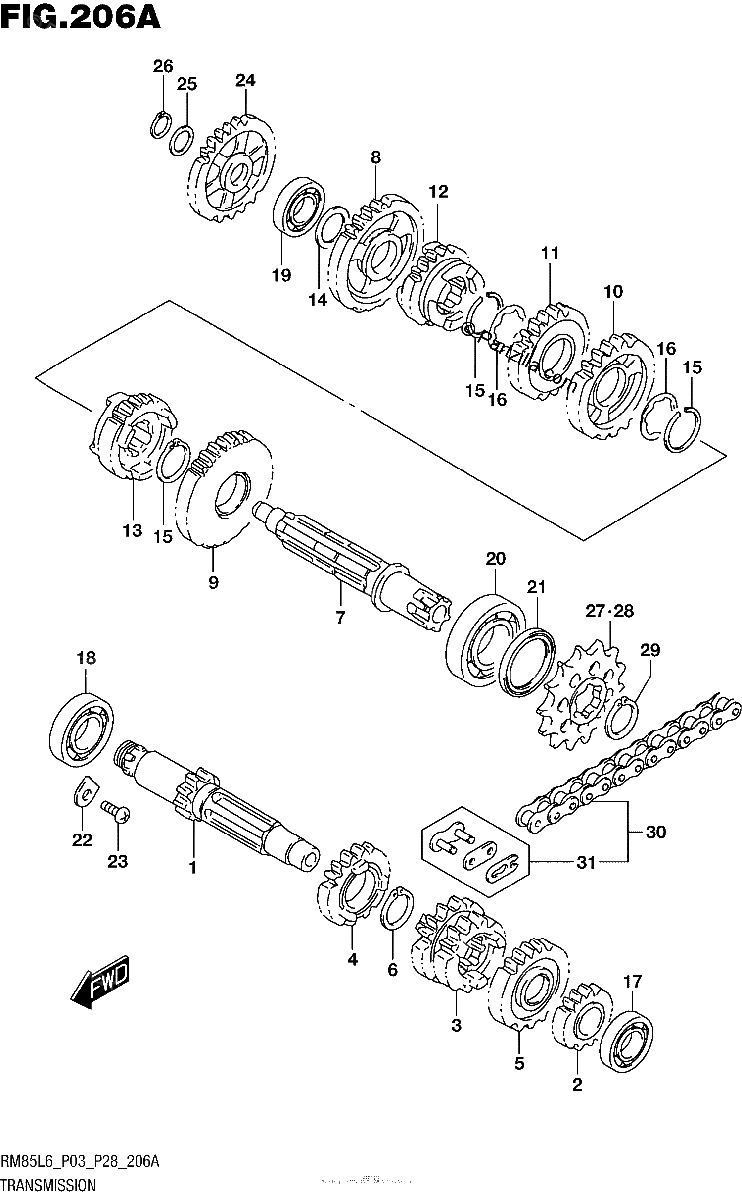

Diagrama de TRANSMISSION RM85L6 P03

Repuestos

#1
24121-02B42
COUNTERSHAFT (NT:11)
$210.93¢105 463
1
#2
24221-02B02
GEAR, 2ND DRIVE (NT:15)
$48.04¢24 019
1
#3
24231-02B03
GEAR, 3/4 DRIVE (NT:14/15)
$147.27¢73 637
1
#4
24251-02B02
GEAR, 5TH DRIVE (NT:18)
$108.71¢54 356
1
#5
24260-02B01
GEAR, 6TH DRIVE (NT:22)
$118.41¢59 206
1
#6
09380-20009
CIRCLIP
$2.60¢1 300
1
#7
24131-02B01
DRIVE SHAFT
$233.16¢116 581
1
#8
24311-02B02
GEAR, 1ST DRIVEN (NT:28)
$152.90¢76 450
1
#9
24321-02B02
GEAR, 2ND DRIVEN (NT:29)
No Disponible
1
#10
24331-03B02
GEAR, 3RD DRIVEN (NT:22)
$113.28¢56 638
1
#11
24341-03B02
GEAR, 4TH DRIVEN (NT:20)
$108.71¢54 356
1
#12
24351-02B02
GEAR, 5TH DRIVEN (NT:21)
$118.41¢59 206
1
#13
24361-02B03
GEAR, 6TH DRIVEN (NT:23)
$65.13¢32 563
1
#14
09181-15195
SHIM (15X26X1)
$3.38¢1 688
1
#15
09380-22006
CIRCLIP
$3.65¢1 825
1
#16
09167-22011
LOCK WASHER
$3.85¢1 925
1
#17
08113-62027
BEARING
$16.91¢8 456
1
#18
09262-20106
BEARING (20X42X12) | RH
$38.52¢19 263
1
#19
08113-62027
BEARING
$16.91¢8 456
1
#20
09262-20069
BEARING (20X47X14) | RH
$27.36¢13 681
1
#21
09283-20057
OIL SEAL (20X35X5)
$7.18¢3 588
1
#22
24741-21A00
RETAINER, BEARING
$3.65¢1 825
1
#23
02112-0612A
SCREW
$1.86¢931
1
#24
26260-02B40
GEAR, KICK STARTER IDLE | NT:24
$103.46¢51 731
1
#25
09181-12158
SHIM (12X20X0.5)
$2.92¢1 463
1
#26
08331-3112A
CIRCLIP
$2.30¢1 150
1
#27
27511-20421
SPROCKET, ENGINE (NT:14)
$31.48¢15 738
1
#28
27511-20401
SPROCKET, ENGINE (NT:13) | OPT
$36.31¢18 156
1
#29
09380-20009
CIRCLIP
$2.60¢1 300
1
#30
27600-05350
CHAIN ASSY, DRIVE (118L)
$247.73¢123 863
1
#31
27620-03B00
.JOINT SET, CHAIN | OPT
$15.09¢7 544
1
