TRANSMISSION RM85L6 P28

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

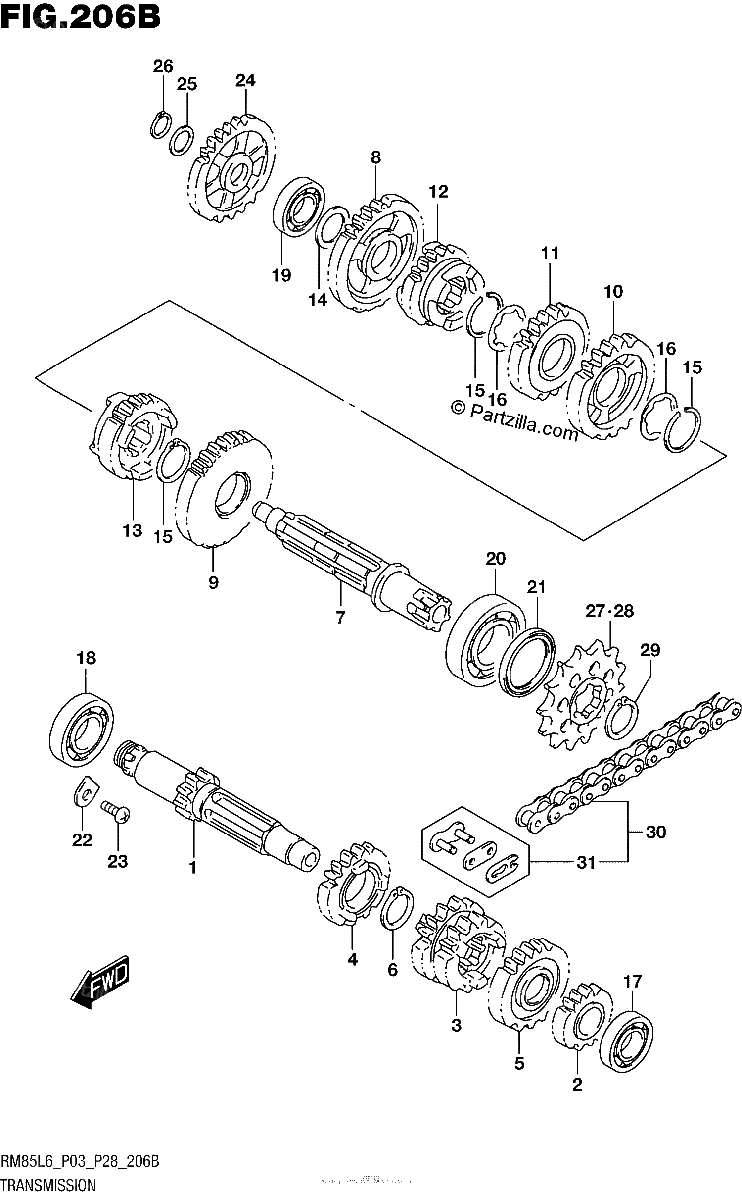

Diagrama de TRANSMISSION RM85L6 P28

Repuestos

#1
24121-02B42
COUNTERSHAFT (NT:11)
$194.05¢97 026
1
#2
24221-02B02
GEAR, 2ND DRIVE (NT:15)
$44.19¢22 097
1
#3
24231-02B03
GEAR, 3/4 DRIVE (NT:14/15)
$135.49¢67 747
1
#4
24251-02B02
GEAR, 5TH DRIVE (NT:18)
$100.02¢50 008
1
#5
24260-02B01
GEAR, 6TH DRIVE (NT:22)
$108.94¢54 470
1
#6
09380-20009
CIRCLIP
$2.39¢1 196
1
#7
24131-02B01
DRIVE SHAFT
$214.51¢107 255
1
#8
24311-02B02
GEAR, 1ST DRIVEN (NT:28)
$140.67¢70 334
1
#9
24321-02B02
GEAR, 2ND DRIVEN (NT:29)
No Disponible
1
#10
24331-03B02
GEAR, 3RD DRIVEN (NT:22)
$104.21¢52 107
1
#11
24341-03B02
GEAR, 4TH DRIVEN (NT:20)
$100.02¢50 008
1
#12
24351-02B02
GEAR, 5TH DRIVEN (NT:21)
$108.94¢54 470
1
#13
24361-02B03
GEAR, 6TH DRIVEN (NT:23)
$59.91¢29 958
1
#14
09181-15195
SHIM (15X26X1)
$3.10¢1 553
1
#15
09380-22006
CIRCLIP
$3.36¢1 679
1
#16
09167-22011
LOCK WASHER
$3.54¢1 771
1
#17
08113-62027
BEARING
$15.56¢7 780
1
#18
09262-20106
BEARING (20X42X12) | RH
$35.44¢17 722
1
#19
08113-62027
BEARING
$15.56¢7 780
1
#20
09262-20069
BEARING (20X47X14) | RH
$25.17¢12 587
1
#21
09283-20057
OIL SEAL (20X35X5)
$6.60¢3 301
1
#22
24741-21A00
RETAINER, BEARING
$3.36¢1 679
1
#23
02112-0612A
SCREW
$1.71¢857
1
#24
26260-02B40
GEAR, KICK STARTER IDLE | NT:24
$95.19¢47 593
1
#25
09181-12158
SHIM (12X20X0.5)
$2.69¢1 346
1
#26
08331-3112A
CIRCLIP
$2.12¢1 058
1
#27
27511-20421
SPROCKET, ENGINE (NT:14)
$28.96¢14 478
1
#28
27511-20401
SPROCKET, ENGINE (NT:13) | OPT
$33.41¢16 704
1
#29
09380-20009
CIRCLIP
$2.39¢1 196
1
#30
27600-05350
CHAIN ASSY, DRIVE (118L)
$227.91¢113 953
1
#31
27620-03B00
.JOINT SET, CHAIN | OPT
$13.88¢6 940
1
