MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

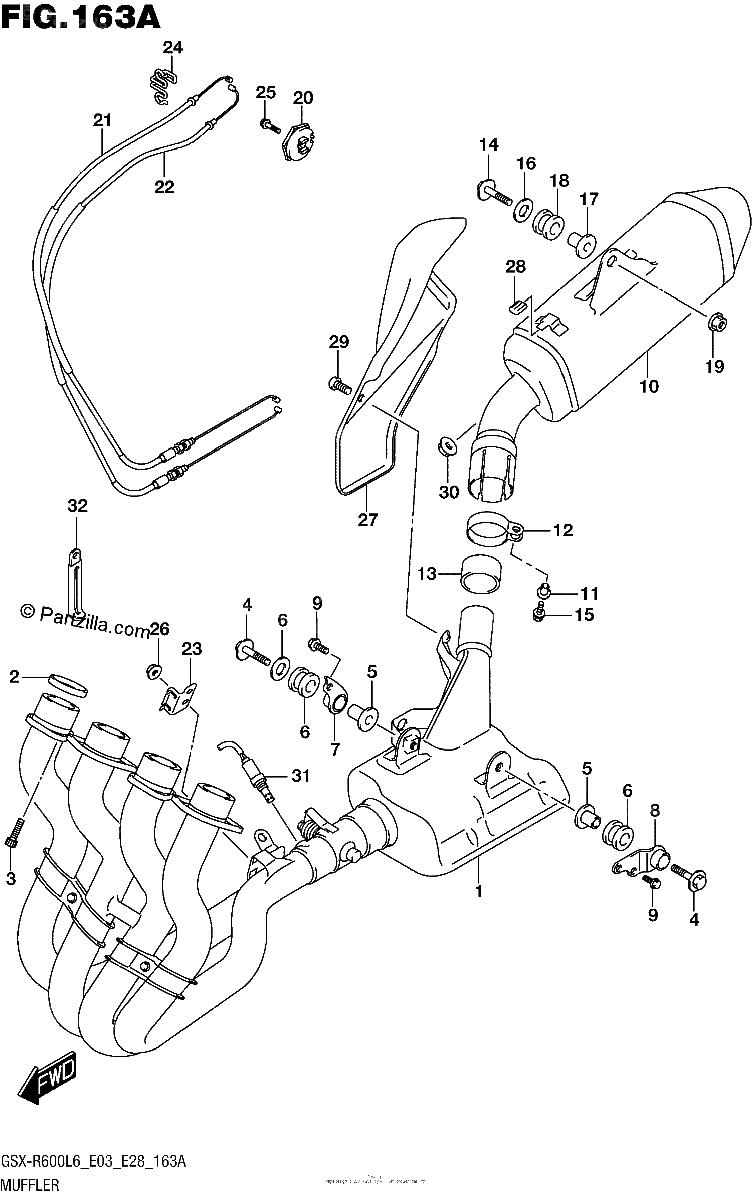

Diagrama de MUFFLER

Repuestos

#1
14100-14J00
EXHAUST
No Disponible
1
#2
14181-46E10
GASKET, EXHAUST PIPE | NOT ILLUSTRATED
$7.92¢3 962
1
#3
09106-08178
BOLT (8X25)
$3.56¢1 783
1
#4
09118-08152-A05
BOLT (8X45)
$5.67¢2 835
1
#5
09180-08152
SPACER (8.6X12X24.2)
$6.30¢3 151
1
#6
09320-12077
CUSHION
$12.93¢6 463
1
#7
14770-14J00
BRACKET, CHAMBER SPRT RH
$22.46¢11 230
1
#8
14773-14J00
BRACKET, CHAMBER SPRT LH
$22.21¢11 103
1
#9
01550-0816A
BOLT
$2.77¢1 386
1
#10
14310-14J00-H01
BODY, MUFFLER
$2501.96¢1 250 981
1
#11
14458-14J00
SPACER, MUFFLER CLAMP
$9.14¢4 571
1
#12
14459-21H40
CLAMP, MUFFLER CONNECTOR
$32.28¢16 140
1
#13
14771-42F10
CONNECTOR, MUFFLER
$25.37¢12 684
1
#14
09103-08358
BOLT (8X45)
$3.15¢1 576
1
#15
09103-08392
BOLT (8X40)
$4.08¢2 041
1
#16
09160-08142
WASHER (8.5X28X1.5)
$3.33¢1 667
1
#17
09180-08152
SPACER (8.6X12X24.2)
$6.30¢3 151
1
#18
09320-12048
CUSHION
$5.53¢2 766
1
#19
08361-2508A
NUT
$2.36¢1 179
1
#20
11269-18G01
PULLEY, CONTROLLER
$35.77¢17 883
1
#21
11276-14J00
CABLE, EXH VALVE NO.1
$98.38¢49 191
1
#22
11277-14J00
CABLE, EXH VALVE NO.2
$98.38¢49 191
1
#23
14250-21H00
BRACKET, EXHAUST VALVE CABLE
$12.30¢6 152
1
#24
14252-14J00
GUIDE, EXHAUST VALVE CABLE
$9.14¢4 571
1
#25
01547-0516A
BOLT
$1.87¢937
1
#26
08316-1006A
NUT
$2.62¢1 311
1
#27
14780-14J00
COVER, MUF FR
$329.99¢164 996
1
#28
14795-10FA0
.GROMMET
$6.30¢3 151
1
#29
09139-06172
SCREW (6X10)
$3.36¢1 679
1
#30
09320-08066
CUSHION
$8.91¢4 456
1
#31
18213-23H01
SENSOR, OXYGEN
$487.16¢243 581
1
#32
09404-06429
CLAMP (L:45)
$2.14¢1 070
1
