CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

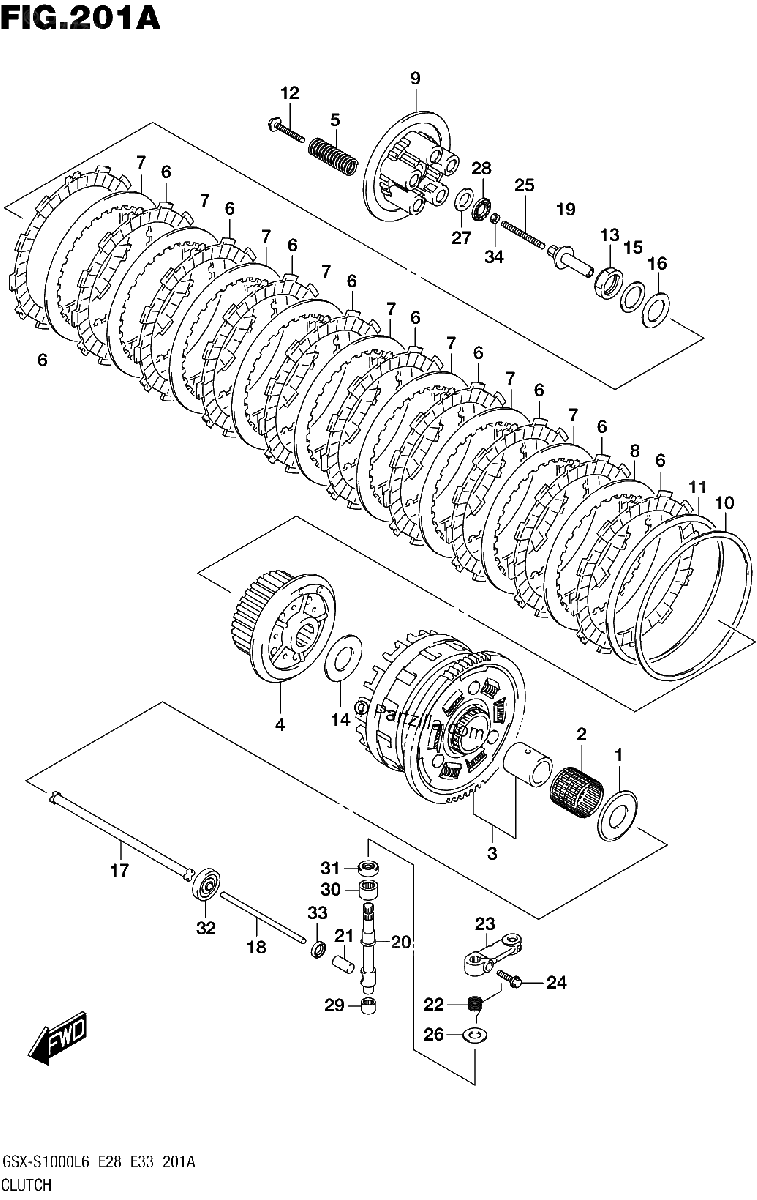

Diagrama de CLUTCH

Repuestos

#1
09160-25073
WASHER (25X54X2.4)
$17.50¢8 752
1
#2
09263-35017
BEARING (35X40X35.8)
$44.48¢22 241
1
#3
21200-40880
GEAR ASSY, PRIMARY DRIVEN (NT:73)
$640.06¢320 028
1
#4
21410-40F01
HUB, CLUTCH SLEEVE
$139.93¢69 966
1
#5
21413-04K00
SPRING, CLUTCH
$11.58¢5 790
1
#6
21441-40F20
PLATE, CLUTCH DRIVE (T:2.8)
$29.46¢14 731
1
#7
21451-40F00
PLATE, CLUTCH DRIVEN NO.1 (T:2.3)
$13.40¢6 699
1
#8
21451-40F30
PLATE, CLUTCH DRIVEN NO.4 (T:2.3)
$14.58¢7 291
1
#9
21462-40F00
DISC, CLUTCH PRESSURE
$79.60¢39 802
1
#10
21471-40F00
SEAT, WAVE WASHER
$16.18¢8 090
1
#11
21472-40F00
WASHER, CLUTCH PLATE WAVE
$22.14¢11 069
1
#12
21412-04K00
BOLT, CLUTCH SPRING
$4.71¢2 357
1
#13
09159-24010
NUT
$14.28¢7 142
1
#14
09160-25056
WASHER (25X50X2.5)
$12.74¢6 371
1
#15
09164-24008
WASHER
$5.55¢2 777
1
#16
09181-25223
SHIM (25X38X1)
$3.47¢1 737
1
#17
23110-38B00
ROD, CLUTCH PUSH RH
$25.44¢12 719
1
#18
23111-05A01
ROD, CLUTCH PUSH, LH
$15.51¢7 757
1
#19
23121-41G00
PIECE, CLUTCH PUSH
$60.87¢30 435
1
#20
23122-41G00
CAMSHAFT, CLUTCH RELEASE
$70.67¢35 334
1
#21
23123-41G00
CAP, CLUTCH PUSH ROD
$11.99¢5 997
1
#22
23125-41G00
SPRING, CLUTCH RELEASE RETURN
$3.56¢1 783
1
#23
23271-41G00
ARM, CLUTCH RELEASE
$58.39¢29 193
1
#24
09103-06223
BOLT (6X20)
$2.98¢1 489
1
#25
09134-06015
SCREW (6X73)
$7.44¢3 720
1
#26
09160-10020
WASHER (10.5X24X1)
$2.23¢1 116
1
#27
09160-15045
WASHER (15.5X28X1)
$4.21¢2 105
1
#28
09263-15003
BEARING (15X28X2)
$8.97¢4 485
1
#29
09263-10014
BEARING (10X14X10)
$14.63¢7 314
1
#30
09263-12027
BEARING (12X18X12)
$7.90¢3 950
1
#31
09282-10012
OIL SEAL (10X20X6)
$8.63¢4 313
1
#32
09283-06010
OIL SEAL (6X34X10.5)
$18.17¢9 085
1
#33
09285-10004
OIL SEAL (10X17X5)
$3.65¢1 823
1
#34
08310-0006A
NUT
$2.20¢1 098
1
