CRANKCASE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

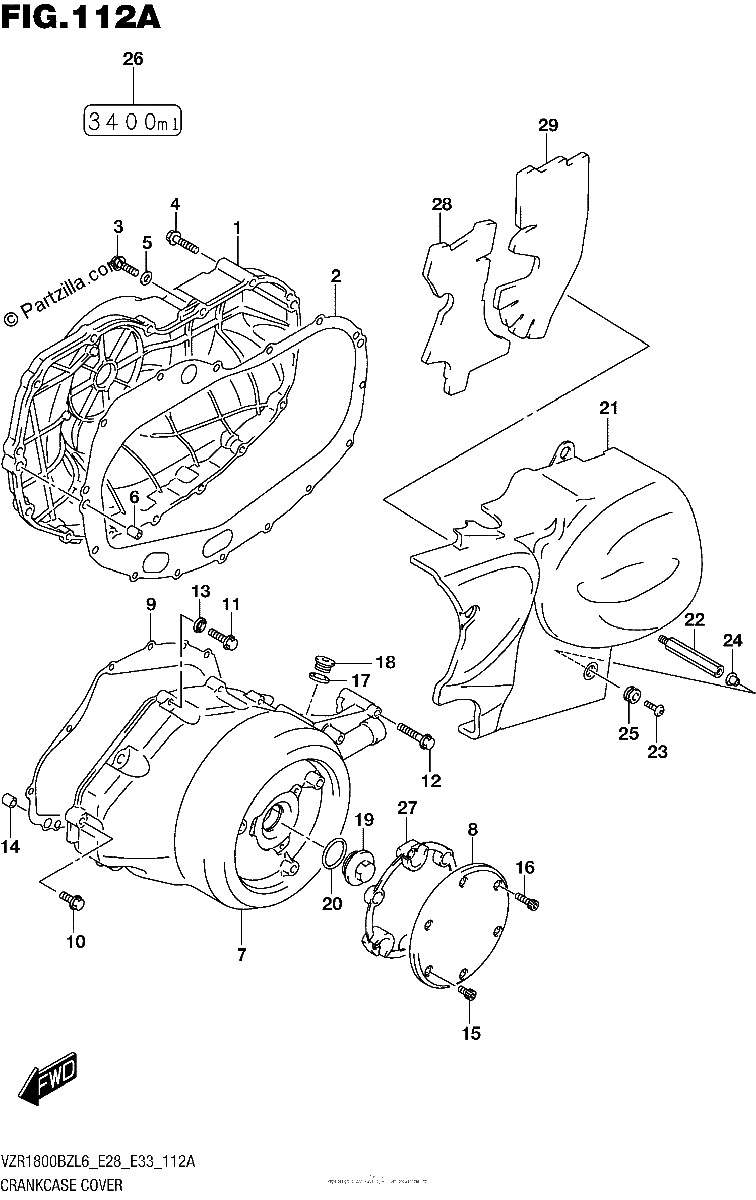

Diagrama de CRANKCASE COVER

Repuestos

#1
11341-48G10
COVER, CLUTCH
$1420.10¢710 050
1
#2
11482-48G00
GASKET, CL COVER
$27.06¢13 530
1
#3
09103-06213
BOLT (6X30)
$2.93¢1 466
1
#4
09103-06261
BOLT (6X60)
$3.47¢1 737
1
#5
09168-06023
GASKET (5.8X13X1.2)
$2.42¢1 208
1
#6
04211-09189
PIN
$1.97¢983
1
#7
11351-48G10
COVER, MAGNETO
$1425.52¢712 758
1
#8
11352-48G00
CAP, MAGNETO COVER
$240.09¢120 043
1
#9
11483-48G00
GASKET, MAGNETO COVER
$20.88¢10 442
1
#10
09103-06213
BOLT (6X30)
$2.93¢1 466
1
#11
09103-06238
BOLT (6X50)
$3.17¢1 587
1
#12
09103-06225
BOLT (6X70)
$3.47¢1 737
1
#13
09168-06023
GASKET (5.8X13X1.2)
$2.42¢1 208
1
#14
04211-09149
PIN
$1.97¢983
1
#15
09106-06076
BOLT
$3.61¢1 805
1
#16
09106-06123
BOLT (6X20)
$2.91¢1 455
1
#17
09168-16002
GASKET (16X22X2)
$2.27¢1 133
1
#18
09248-16012
.PLUG (16X8)
$5.03¢2 513
1
#19
09259-30005
CAP
$11.75¢5 877
1
#20
09280-26006
.O RING (D:3.1,ID:26.4)
$3.32¢1 662
1
#21
11361-48G30
COVER, SECONDARY DRIVE UNIT
$842.26¢421 130
1
#22
11372-48G00
BOLT, SEC DRIVE UNIT COVER
$19.57¢9 786
1
#23
09139-06028
SCREW (6X20)
$3.99¢1 995
1
#24
09169-06062
WASHER
$2.99¢1 495
1
#25
09320-09501
CUSHION | RH
$2.47¢1 236
1
#26
68322-48G00
NOTE, ENGINE OIL
No Disponible
1
#27
11353-48G00
DAMPER, MAGNETO COVER CAP
$29.75¢14 875
1
#28
11363-48G20
DAMPER, SEC DRIVE UNIT COVER
$25.01¢12 506
1
#29
11364-48G00
DAMPER, SEC DRIVE UNIT COVER
$43.50¢21 752
1
