CARBURETOR DR Z400SL6 E33

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

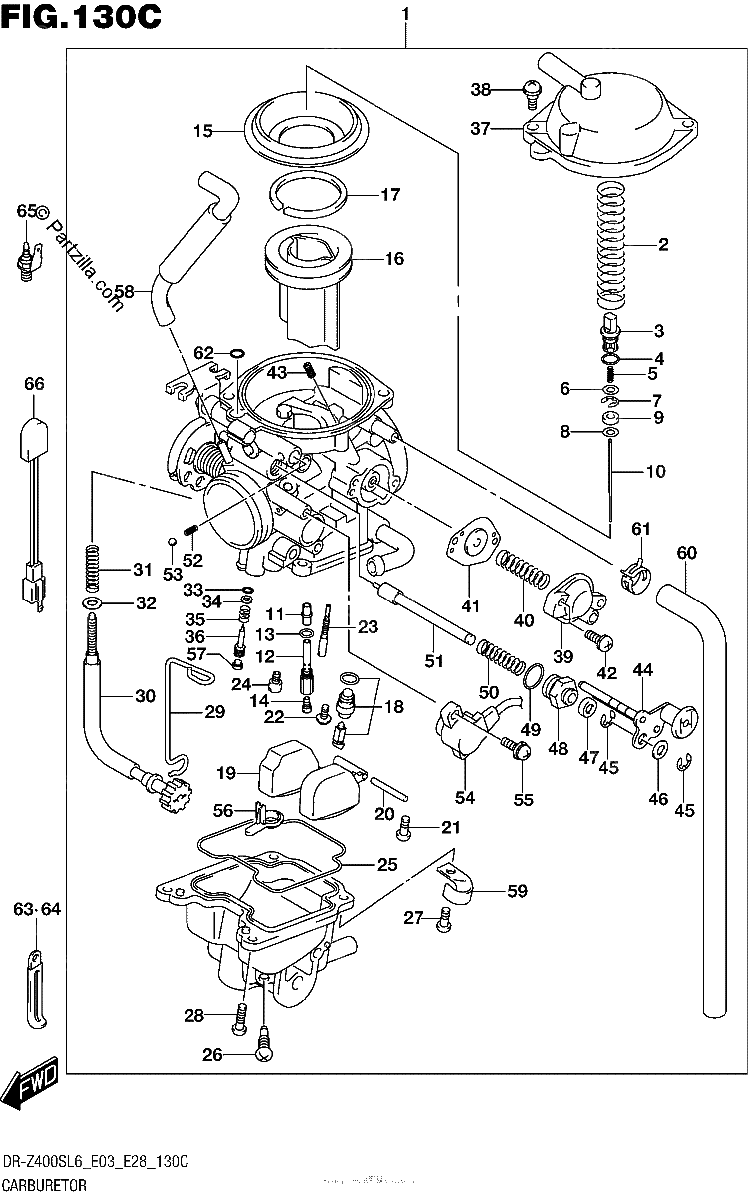

Diagrama de CARBURETOR DR Z400SL6 E33

Repuestos

#1
13200-29FC3
CARBURETOR ASSY
$1089.65¢544 825
1
#2
13573-07F00
.SPRING
$18.46¢9 231
1
#3
13418-33E00
.HOLDER
$6.78¢3 388
1
#4
09280-05004
.O RING (D:1.9,ID:4.8)
$2.74¢1 369
1
#5
13481-04F00
.SPRING
$4.25¢2 125
1
#6
13382-19E00
.WASHER
$4.36¢2 181
1
#7
13394-17E60
.E RING, MULTIPLE JET NOZZLE
$2.36¢1 181
1
#8
13387-13F00
.RING
$12.60¢6 300
1
#9
13291-29FA0
.WASHER
$3.65¢1 825
1
#10
13383-29FB0
.NEEDLE, JET (5DH37-1)
$26.60¢13 300
1
#11
09494-00939
.JET
$68.16¢34 081
1
#12
13385-29FA0
.HOLDER, JET
$46.10¢23 050
1
#13
13246-43010
.O RING
$5.17¢2 588
1
#14
09491-28012
.JET, MAIN (142.5)
$14.88¢7 438
1
#15
13507-17C01
.DIAPHRAGM
$35.29¢17 644
1
#16
13501-29FA0
.VALVE, PISTON
$86.41¢43 206
1
#17
13504-14E00
.RING
$6.26¢3 131
1
#18
13370-29FA0
.VALVE ASSY, NEEDLE
$65.70¢32 850
1
#19
13250-04F00
.FLOAT ASSY
$41.42¢20 713
1
#20
13254-01010
.PIN, FLOAT
$4.44¢2 219
1
#21
02112-0408A
.SCREW
$1.42¢712
1
#22
13602-05A10
.SCREW
$4.25¢2 125
1
#23
09492-22014
.JET, PILOT (22.5)
$16.70¢8 350
1
#24
09491-62006
.JET, MAIN (62.5)
$14.94¢7 469
1
#25
13258-04F00
.GASKET
$11.80¢5 900
1
#26
13247-02340
SCREW, DRAIN
$5.94¢2 969
1
#27
02112-04107
.SCREW
$2.01¢1 006
1
#28
02112-0412A
SCREW
$1.63¢813
1
#29
13671-29FA0
.CLIP
$25.10¢12 550
1
#30
13267-29FA0
.ADJUST SCREW ASSY
$84.13¢42 063
1
#31
13268-37420
.SPRING, THROTTLE SCREW
$7.16¢3 581
1
#32
13615-43010
.WASHER
$4.38¢2 188
1
#33
13295-29900
.O RING
$5.17¢2 588
1
#34
13291-29900
.WASHER
$2.34¢1 169
1
#35
13268-48700
.SPRING
$5.17¢2 588
1
#36
13279-33E00
.ADJUSTER
$16.85¢8 425
1
#37
13502-29FA0
.COVER ASSY, DIAPHRAGM
$67.98¢33 988
1
#38
13247-33E00
.SCREW
$3.65¢1 825
1
#39
13596-93010
.STEEL BALL
$5.98¢2 988
1
#39
13502-08F00
.COVER ASSY
$69.28¢34 638
1
#40
13481-41F20
.SPRING
$4.63¢2 313
1
#41
13480-10F00
.DIAPHRAGM ASSY
$20.02¢10 013
1
#42
13601-04148
.SCREW
$3.65¢1 825
1
#43
09492-27010
.JET, POWER (135)
$23.65¢11 825
1
#44
13420-29FA0
.PLATE ASSY
$98.31¢49 156
1
#45
13415-38300
.E RING
$2.42¢1 213
1
#46
13427-38300
.WASHER
$2.59¢1 294
1
#47
13682-31210
.CAP, STARTER VALVE
$5.21¢2 606
1
#48
13418-44080
.HOLDER, GUIDE
$12.26¢6 131
1
#49
13278-47090
.O RING
$2.46¢1 231
1
#50
13417-43010
.SPRING, STARTER VALVE
$5.17¢2 588
1
#51
13411-29FA0
.PLUNGER ASSY
$42.15¢21 075
1
#52
13434-43010
.SPRING
$8.47¢4 238
1
#54
13580-21F00
.SENSOR ASSY
$103.40¢51 700
1
#55
13602-19B50
.SCREW
$4.09¢2 044
1
#56
13387-29FA1
.RING
$18.77¢9 388
1
#57
13281-05A00
.PLUG
$5.49¢2 744
1
#58
13683-29FB0
.HOSE
$28.48¢14 238
1
#59
13671-14D00
.PLATE
$5.63¢2 813
1
#60
13684-29FB0
.HOSE, AIR VENT (6.5X10.5)
$41.63¢20 813
1
#61
13671-19F00
.CLIP
$6.94¢3 469
1
#62
13295-33010
.O RING
$5.34¢2 669
1
#63
09404-06429
CLAMP (L:45)
$2.33¢1 163
1
#64
09404-08420
CLAMP (L:120 T:1.0)
$3.77¢1 888
1
#65
13650-25E01
HEATER ASSY, CARBURETOR | OPT
$60.04¢30 019
1
#66
13655-16F00
SWITCH, CARB HEATER THERMO | OPT
$89.10¢44 550
