CRANKSHAFT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

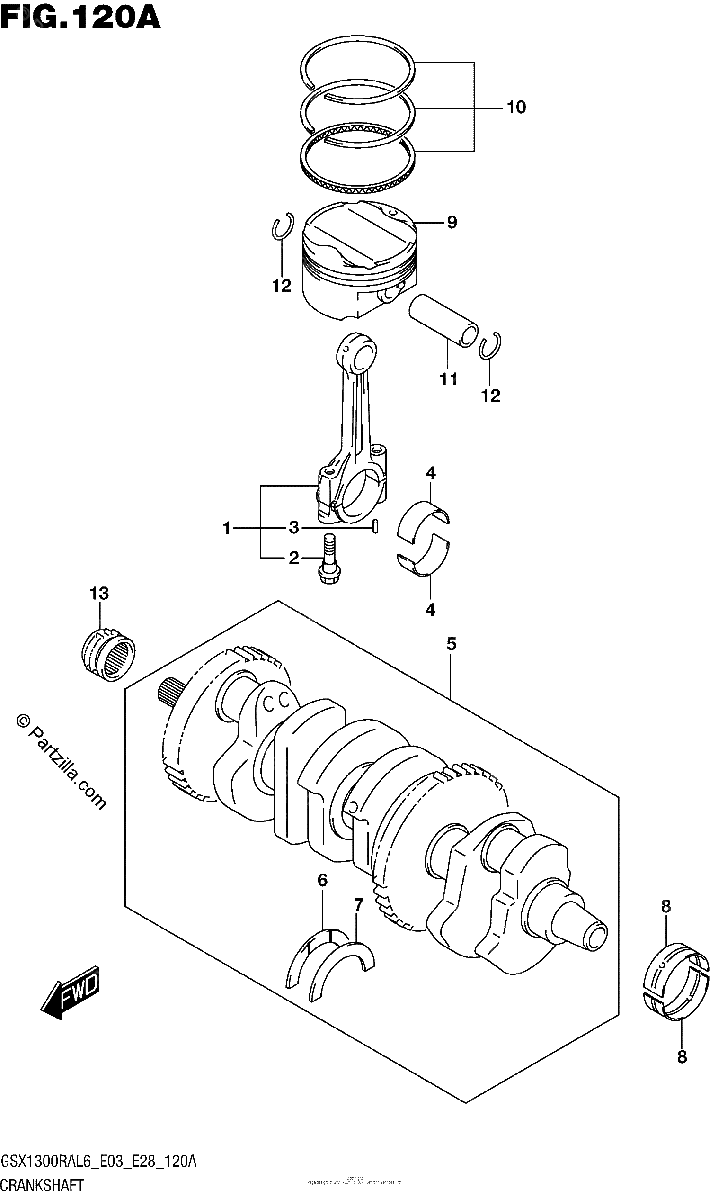

Diagrama de CRANKSHAFT

Repuestos

#1
12160-15H00
ROD ASSY, CONNECTING
$320.40¢160 200
1
#2
12163-24F10
.BOLT, CONNECTING ROD
$19.60¢9 800
1
#3
04221-04089
.PIN
$1.44¢719
1
#5
12000-15810
CRANKSHAFT SET
$2760.88¢1 380 438
1
#6
12228-24F00-0D0
.BEARING, CRANK THRUST (GREEN
$13.26¢6 631
1
#9
12111-15H00-0F0
PISTON
$331.25¢165 625
1
#10
12140-15H10
RING SET, PISTON
$115.72¢57 863
1
#11
12151-07D00
PIN, PISTON
$24.90¢12 450
1
#12
09381-18005
CIRCLIP
$2.49¢1 244
1
#13
12731-24F10
SPROCKET, CAM CHAIN
$85.84¢42 919
1
#4-1
12164-46E01-0A0
BEARING, CRANK PIN (GREEN)
$20.04¢10 019
1
#4-2
12164-46E01-0B0
BEARING, CRANK PIN (BLACK)
$20.04¢10 019
1
#4-3
12164-46E01-0C0
BEARING, CRANK PIN (BROWN)
$26.71¢13 356
1
#4-4
12164-46E01-0D0
BEARING, CRANK PIN (YELLOW)
$20.63¢10 313
1
#7-1
12228-24F00-0A0
.BEARING, CRANK THRUST (RED) | LH
$17.29¢8 644
1
#7-2
12228-24F00-0B0
.BEARING, CRANK THRUST (BLACK
$17.16¢8 581
1
#7-3
12228-24F00-0C0
.BEARING, CRANK THRUST (BLUE)
$17.16¢8 581
1
#7-4
12228-24F00-0D0
.BEARING, CRANK THRUST (GREEN
$13.26¢6 631
1
#7-5
12228-24F00-0E0
.BEARING, CRANK THRUST
$17.94¢8 969
1
#7-6
12228-24F00-0F0
.BEARING, CRANK THRUST (WHITE
$17.94¢8 969
1
#8-1
12229-15H10-0A0
BEARING, CRANKSHAFT (GREEN)
$16.35¢8 175
1
#8-2
12229-15H10-0B0
BEARING, CRANKSHAFT (BLACK)
$17.04¢8 519
1
#8-3
12229-15H10-0C0
BEARING, CRANKSHAFT (BROWN)
$21.44¢10 719
1
#8-4
12229-15H10-0D0
BEARING, CRANKSHAFT (YELLOW)
$16.56¢8 281
1
#8-5
12229-15H10-0E0
BEARING, CRANKSHAFT (BLUE)
$17.63¢8 813
1
