ELECTRICAL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

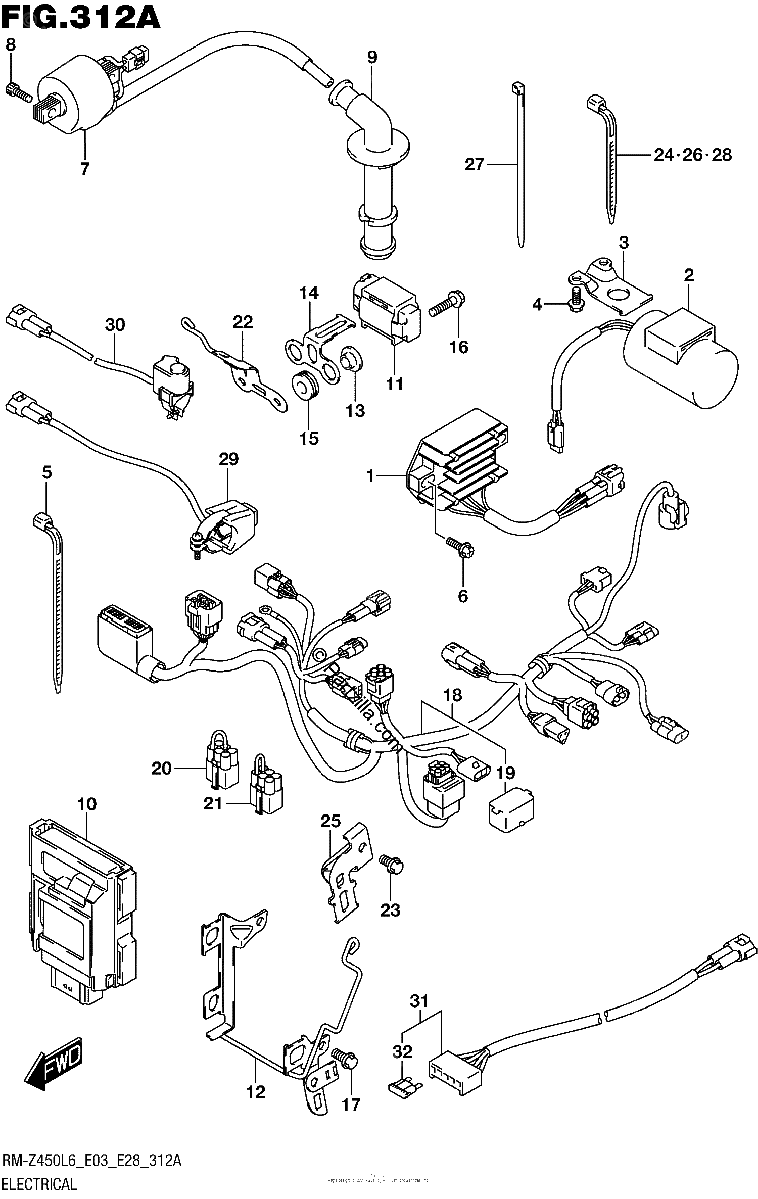

Diagrama de ELECTRICAL

Repuestos

#1
32800-28H00
RECTIFIER ASSY
$224.02¢112 010
1
#2
33640-28H00
CONDENSER ASSY
$176.05¢88 027
1
#3
33641-28H00
BRACKET, CONDENSER
No Disponible
1
#4
09103-06188
BOLT (6X10)
$3.51¢1 754
1
#5
09407-25401
CLAMP (L:235)
$5.05¢2 524
1
#6
02162-0620C
BOLT
$2.07¢1 035
1
#7
33410-28H00
COIL ASSY, IGNITION
$108.57¢54 286
1
#8
07130-0620A
BOLT
$2.99¢1 495
1
#9
33510-28H00
CAP ASSY, SPARK PLUG
$74.27¢37 134
1
#10
32920-28HG0
CONTROL UNIT, FI
$726.49¢363 245
1
#11
33960-06G10
SENSOR ASSY, FUEL CUT
$98.64¢49 318
1
#12
32931-28H00
BRACKET, FI CONTROL UNIT
$49.01¢24 506
1
#13
09180-06331
.SPACER (6.2X8.4X10.9)
$5.75¢2 875
1
#14
33961-28HA0
BRACKET, FUEL CUT SENSOR
$8.37¢4 186
1
#15
09320-08501
CUSHION
$3.54¢1 771
1
#16
01500-0630A
BOLT
$2.66¢1 328
1
#17
01547-0612A
BOLT
$2.42¢1 208
1
#18
36610-28H60
HARNESS, WIRING
$406.20¢203 102
1
#19
36654-46H00
CAP, TS
$15.66¢7 831
1
#20
36852-28H00
WIRE, SHORT
$16.36¢8 182
1
#21
36852-49H00
WIRE, SHORT
$12.58¢6 290
1
#22
36672-28H30
BRACKET, COUPLER
$23.83¢11 914
1
#23
01547-0610A
BOLT
$1.63¢816
1
#24
09407-11401
CLAMP (L:95)
$3.19¢1 593
1
#25
36672-28H20
BRACKET, COUPLER
No Disponible
1
#26
09407-14403
CLAMP (L:125)
$2.69¢1 346
1
#27
09407-14407
CLAMP (L:145)
$3.36¢1 679
1
#28
09407-18402
CLAMP (L:165)
$2.66¢1 328
1
#29
37820-36E00
SWITCH ASSY, ENGINE STOP
$26.60¢13 300
1
#30
37820-28H01
SWITCH ASSY, START DASH
$159.62¢79 810
1
#31
36890-28H00
WIRE, BATTERY | OPT
$57.16¢28 578
1
#32
09481-10101
.FUSE (10A) | OPT
$2.50¢1 248
1
