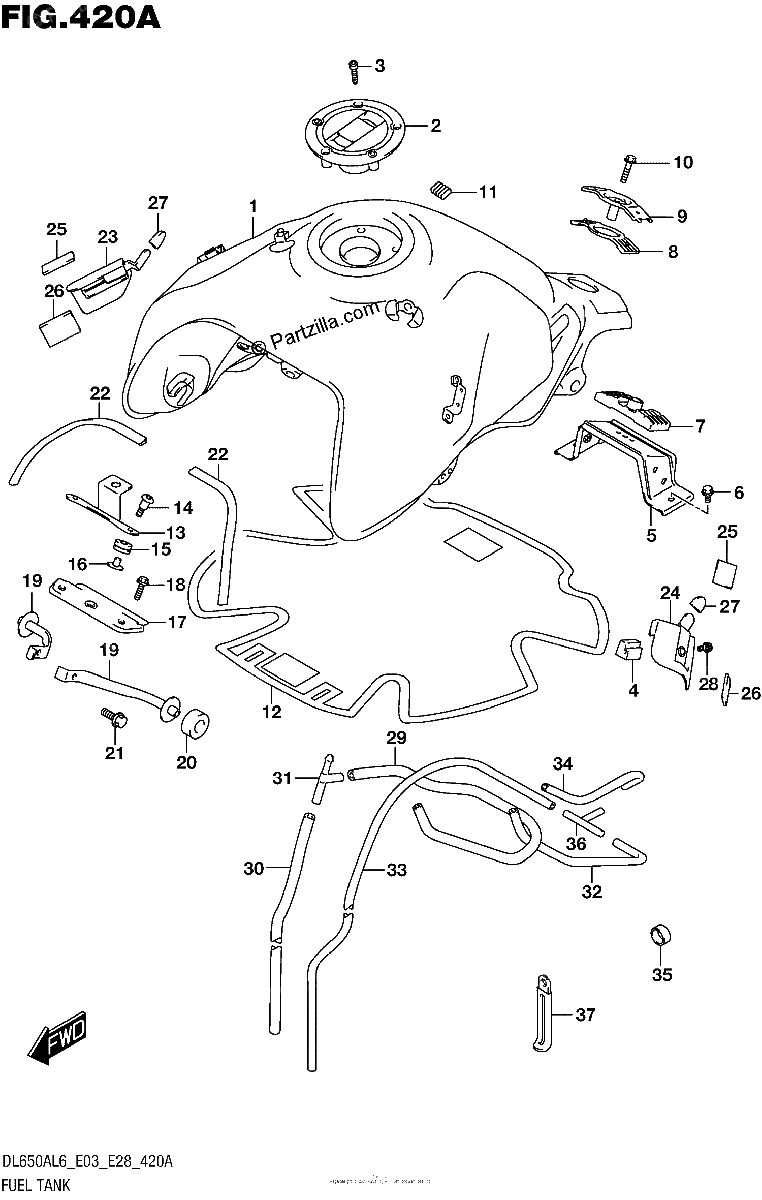

FUEL TANK DL650AL6 E28
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
TANK, FUEL (BLACK)
$1564.20¢782 098
#2
CAP SET, FUEL TANK
$129.67¢64 837
#3
BOLT
$4.51¢2 254
#4
CUSHION, SIDE
$6.36¢3 180
#5
BRACKET, REAR LOWER
No Disponible
#6
BOLT
$2.77¢1 386
#7
CUSHION, LOWER
$22.65¢11 327
#8
CUSHION, UPPER
$20.84¢10 419
#9
BRACKET, UPPER
No Disponible
#10
BOLT
$3.36¢1 679
#11
FASTENER
$11.17¢5 583
#12
SHIELD, TANK CENTER
$100.48¢50 238
#13
BRACKET, FRONT COVER
$13.65¢6 825
#14
SCREW (6X25)
$3.50¢1 748
#15
CUSHION, FUEL TANK FRONT
$4.52¢2 260
#16
SPACER, FUEL TANK FRONT
$8.15¢4 077
#17
BRACKET, FUEL TANK FRONT
No Disponible
#18
BOLT (6X20)
$2.85¢1 426
#19
BRACKET, FRONT SIDE
No Disponible
#20
CUSHION, FRONT SIDE BRACKET
$6.06¢3 030
#21
BOLT
$2.36¢1 179
#22
MOLDING, FUEL TANK
$22.29¢11 143
#23
BRACKET, FUEL TANK COVER RH
$6.50¢3 249
#24
BRACKET, FUEL TANK COVER LH
$3.58¢1 788
#25
FASTENER
$12.13¢6 066
#26
CUSHION, FUEL TANK SIDE COVER
$16.10¢8 050
#27
CUSHION
$2.27¢1 133
#28
BOLT
$2.99¢1 495
#29
HOSE, FUEL TANK DRAIN NO.1
No Disponible
#30
HOSE, FUEL TANK DRAIN NO.2
No Disponible
#31
3 WAY
$5.84¢2 921
#32
HOSE, FUEL TANK BREATHER NO.1
$11.96¢5 980
#33
HOSE (5X8.2X2000) | L:2000-690
$15.08¢7 538
#34
HOSE,5X8.2X600 | L:600-260
No Disponible
#35
HOSE (12X16X600) | L:600-10
No Disponible
#36
3 WAY
$3.81¢1 903
#37
CLAMP (L:80 T:1.0) | SHIELD
$2.10¢1 052
