COWLING BODY DL650AL6 E03

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

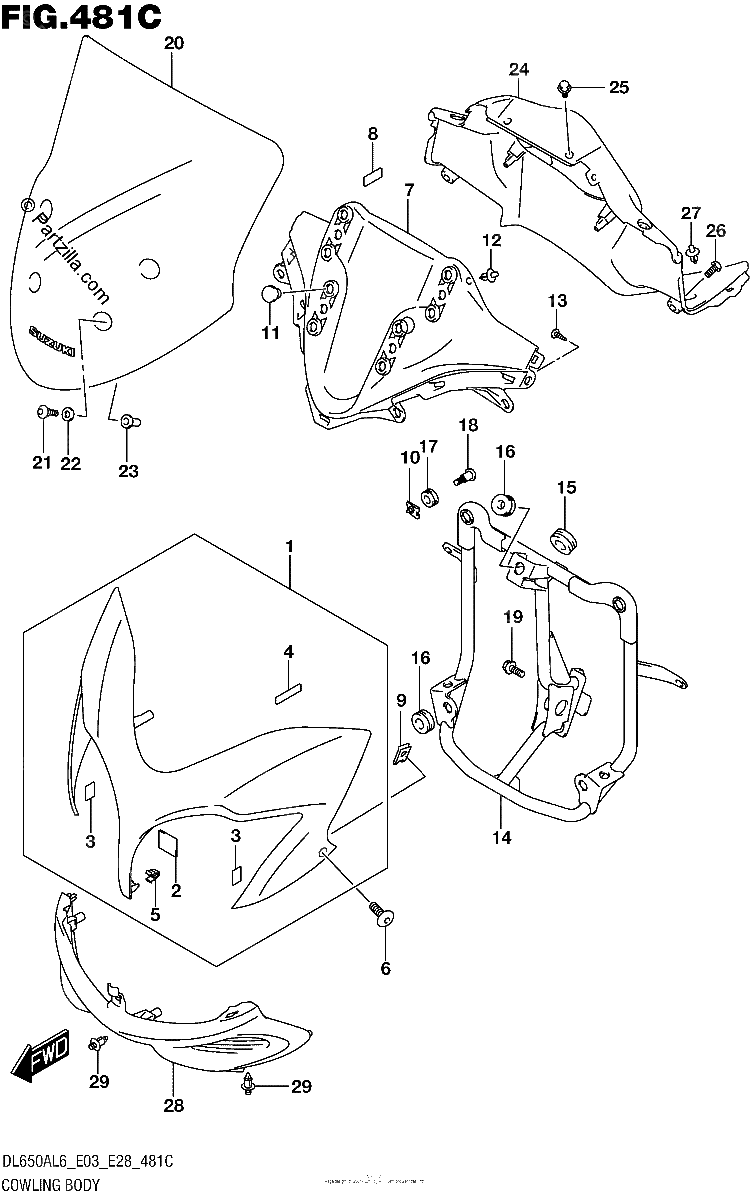

Diagrama de COWLING BODY DL650AL6 E03

Repuestos

#2
44572-02F01
.FASTENER
$12.13¢6 066
1
#3
44572-37H00
.FASTENER, COWLING
$10.80¢5 399
1
#4
94443-06G00
TAPE, REAR FENDER
$3.56¢1 783
1
#5
09409-08326
CLIP
$2.93¢1 466
1
#6
09139-05064
SCREW (5X13)
$3.06¢1 529
1
#7
94414-11J00
PANEL, FRONT
$44.24¢22 120
1
#8
94612-31F00
CUSHION, FRONT PANEL
$6.19¢3 093
1
#9
09148-05052
NUT
$3.65¢1 823
1
#10
09148-06020
NUT
$4.81¢2 403
1
#1-1
94410-11J00-YYG
BODY, COWLING (RED)
$271.97¢135 987
1
#11
09250-10010
CAP (OD:15)
$2.00¢1 001
1
#1-2
94410-11J00-PGZ
BODY, COWLING (GRAY)
$266.95¢133 475
1
#12
09409-06329
CLIP
$3.36¢1 679
1
#1-3
94410-11J00-YVB
BODY, COWLING (BLACK)
$271.97¢135 987
1
#13
03241-0512A
SCREW
$1.63¢816
1
#1-4
94410-11J00-YMD
BODY, COWLING (SILVER)
$266.32¢133 159
1
#14
94510-11J01
BRACE, COWLING
$387.53¢193 764
1
#15
34955-13E00
CUSHION
$3.36¢1 679
1
#16
09320-08028
CUSHION
$3.36¢1 679
1
#17
09320-09016
CUSHION
$2.36¢1 179
1
#18
09139-06126
SCREW (6X20)
$4.37¢2 185
1
#19
01550-0820A
BOLT
$2.70¢1 351
1
#20
94611-11J00
WINDSCREEN
$299.61¢149 805
1
#21
09139-05032
SCREW (5X18)
$2.01¢1 006
1
#22
09160-05048
WASHER (5.5X14X1.2)
$2.10¢1 052
1
#23
09159-05019
NUT
$7.72¢3 858
1
#24
94631-11J00
PANEL, METER
$105.02¢52 509
1
#25
09139-05074
BOLT (5X13)
$3.09¢1 547
1
#26
09139-06120
SCREW (6X16)
$3.36¢1 679
1
#27
09409-06329
CLIP
$3.36¢1 679
1
#28
94461-11J00
COVER, COWLING INNER
$137.05¢68 523
1
#29
09409-06329
CLIP
$3.36¢1 679
1
