COWLING BODY DL650AL6 E33

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

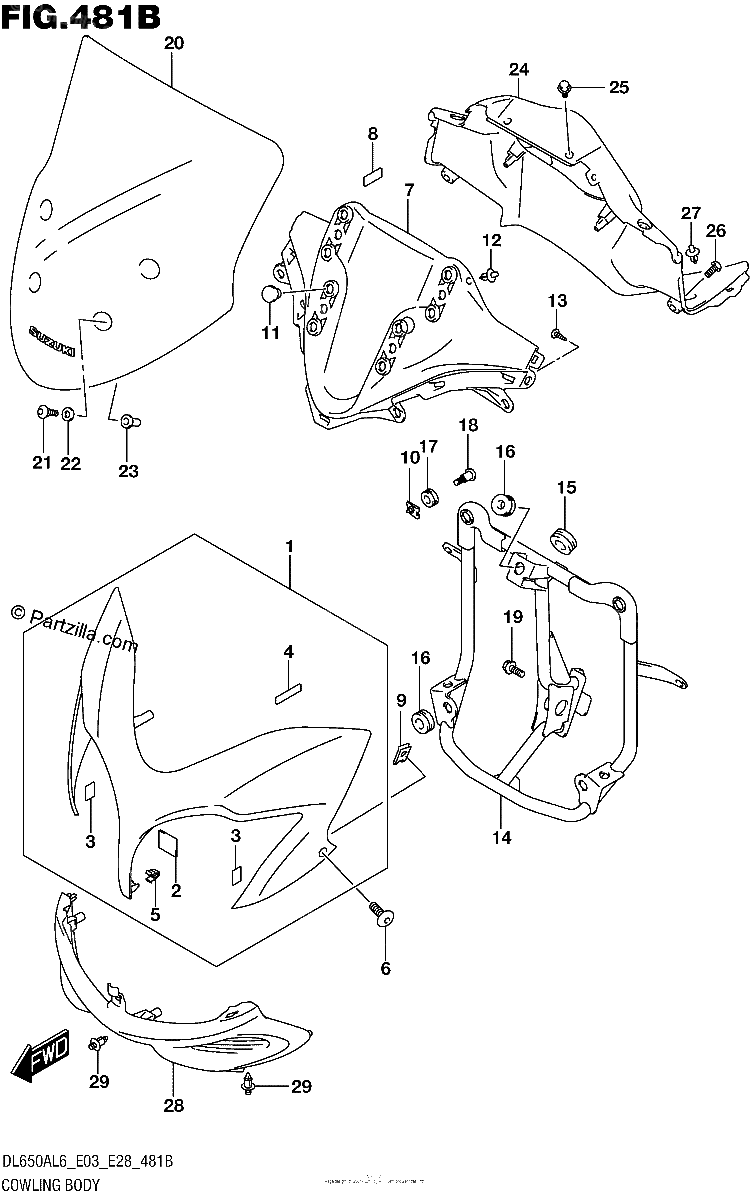

Diagrama de COWLING BODY DL650AL6 E33

Repuestos

#2
44572-02F01
.FASTENER
$13.19¢6 594
1
#3
44572-37H00
.FASTENER, COWLING
$11.74¢5 869
1
#4
94443-06G00
TAPE, REAR FENDER
$3.88¢1 938
1
#5
09409-08326
CLIP
$3.19¢1 594
1
#6
09139-05064
SCREW (5X13)
$3.33¢1 663
1
#7
94414-11J00
PANEL, FRONT
$48.09¢24 044
1
#8
94612-31F00
CUSHION, FRONT PANEL
$6.72¢3 363
1
#9
09148-05052
NUT
$3.96¢1 981
1
#10
09148-06020
NUT
$5.22¢2 613
1
#1-1
94410-11J00-YYG
BODY, COWLING (RED)
$295.63¢147 813
1
#11
09250-10010
CAP (OD:15)
$2.17¢1 088
1
#1-2
94410-11J00-PGZ
BODY, COWLING (GRAY)
$290.16¢145 081
1
#12
09409-06329
CLIP
$3.65¢1 825
1
#1-3
94410-11J00-YVB
BODY, COWLING (BLACK)
$295.63¢147 813
1
#13
03241-0512A
SCREW
$1.77¢888
1
#1-4
94410-11J00-YMD
BODY, COWLING (SILVER)
$289.48¢144 738
1
#14
94510-11J01
BRACE, COWLING
$421.23¢210 613
1
#15
34955-13E00
CUSHION
$3.65¢1 825
1
#16
09320-08028
CUSHION
$3.65¢1 825
1
#17
09320-09016
CUSHION
$2.56¢1 281
1
#18
09139-06126
SCREW (6X20)
$4.75¢2 375
1
#19
01550-0820A
BOLT
$2.94¢1 469
1
#20
94611-11J00
WINDSCREEN
$325.66¢162 831
1
#21
09139-05032
SCREW (5X18)
$2.19¢1 094
1
#22
09160-05048
WASHER (5.5X14X1.2)
$2.29¢1 144
1
#23
09159-05019
NUT
$8.39¢4 194
1
#24
94631-11J00
PANEL, METER
$114.15¢57 075
1
#25
09139-05074
BOLT (5X13)
$3.36¢1 681
1
#26
09139-06120
SCREW (6X16)
$3.65¢1 825
1
#27
09409-06329
CLIP
$3.65¢1 825
1
#28
94461-11J00
COVER, COWLING INNER
$148.96¢74 481
1
#29
09409-06329
CLIP
$3.65¢1 825
1
