REAR COMBINATION LAMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

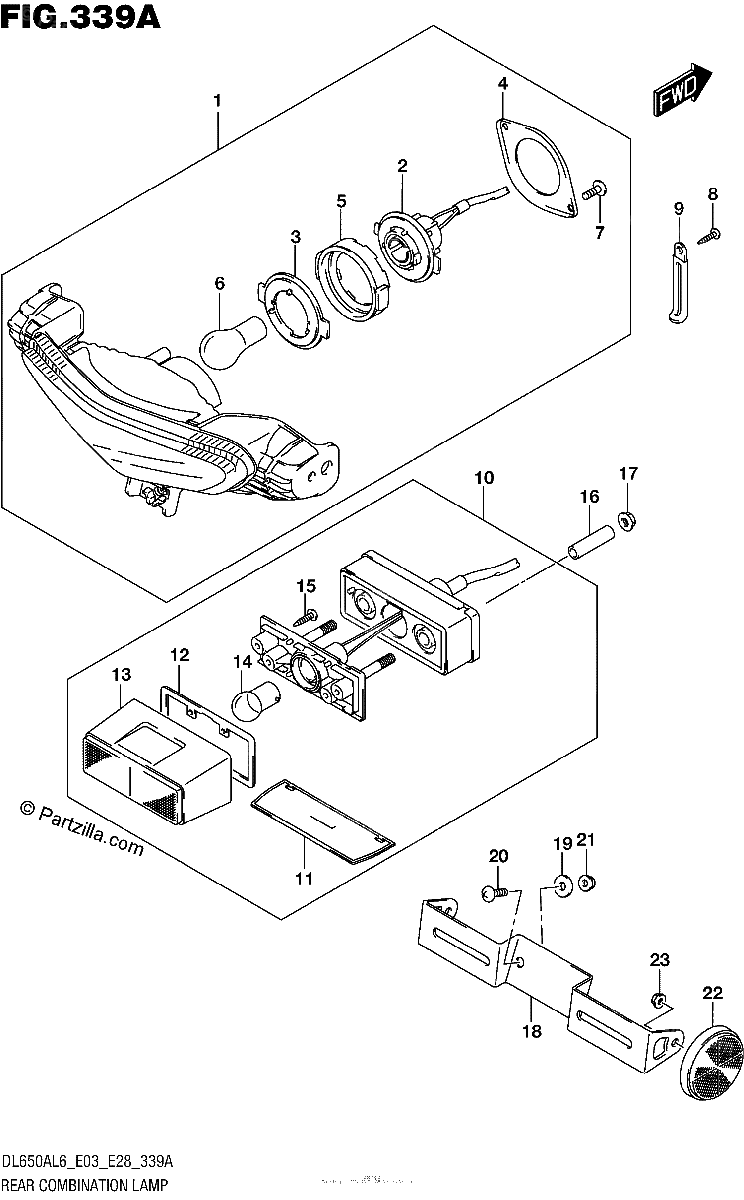

Diagrama de REAR COMBINATION LAMP

Repuestos

#1
35710-11J01
LAMP ASSY, REAR COMBINATION
$251.10¢125 551
1
#2
35718-11J01
.SOCKET CORD
$74.27¢37 134
1
#3
35716-48B21
.PLATE, NO.1
$25.10¢12 552
1
#4
35736-48B21
.PLATE, NO.2
$27.22¢13 610
1
#5
35765-48B21
CUSHION
$16.10¢8 050
1
#6
09471-12128
BULB (12V,21/5W)
$7.29¢3 645
1
#7
03211-0412A
.SCREW
$2.42¢1 208
1
#8
03541-0616A
SCREW
$2.32¢1 162
1
#9
09404-06429
CLAMP (L:45)
$2.14¢1 070
1
#10
35910-41G31
LAMP ASSY, LICENSE
$109.86¢54 930
1
#11
35912-41G01
.LENS, LICENSE
$16.50¢8 251
1
#12
35913-41G00
.GASKET
$17.68¢8 838
1
#13
35917-41G00
.COVER, LICENSE LAMP
$43.85¢21 925
1
#14
09471-12058
BULB (12V,5W)
$1.92¢960
1
#15
03211-0416A
.SCREW
$1.71¢857
1
#16
09180-06278
SPACER (6.5X9X33.3)
$5.46¢2 731
1
#17
09159-06096
NUT
$3.79¢1 897
1
#18
35927-14J30
BRACKET, LICENSE PLATE
$19.49¢9 746
1
#19
09160-06077
WASHER (6.5X20X1.2)
$2.27¢1 133
1
#20
02142-0616A
SCREW
$1.64¢822
1
#21
08316-1006A
NUT
$2.62¢1 311
1
#22
35970-14A20
REFLECTOR ASSY, REAR SIDE
$17.05¢8 527
1
#23
08316-1005A
NUT
$2.62¢1 311
1
