FRONT FORK DAMPER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

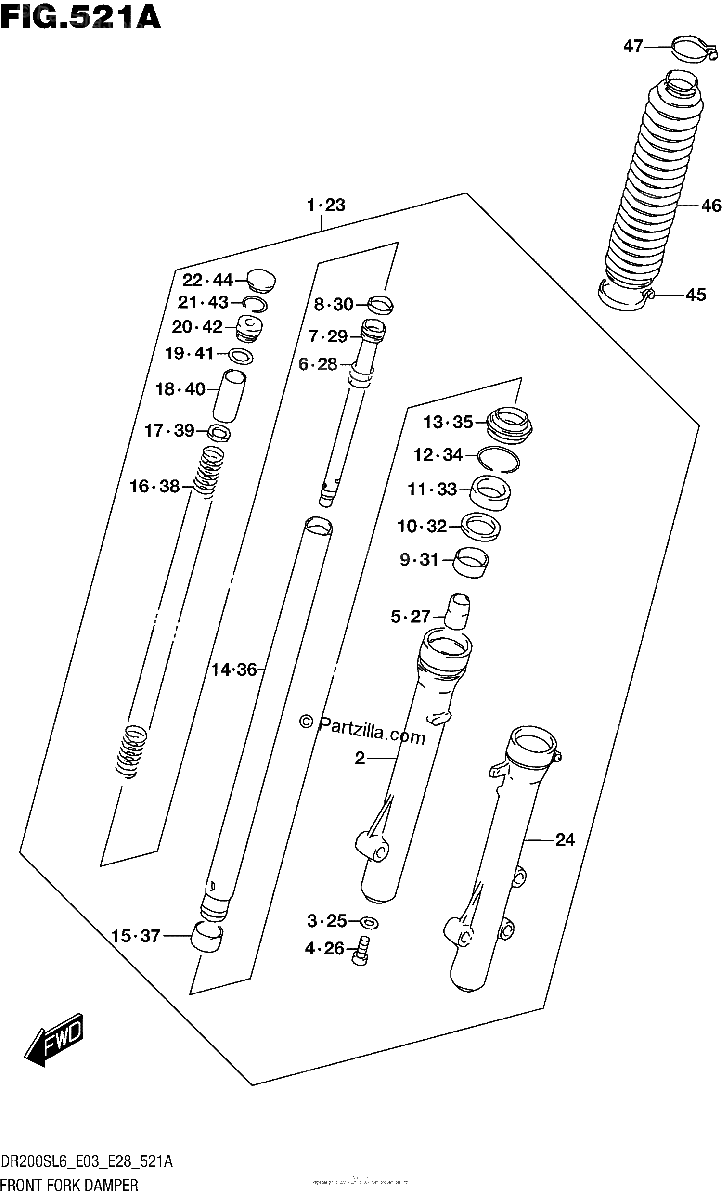

Diagrama de FRONT FORK DAMPER

Repuestos

#1
51103-42AA0
DAMPER ASSY, FRONT FORK RH
No Disponible
1
#2
51131-01A01
.TUBE, OUTER RH
No Disponible
1
#3
51148-36011
.GASKET
$4.25¢2 125
1
#4
51147-06F10
.BOLT
$8.09¢4 044
1
#5
51195-43530
.PIECE, OIL LOCK
$27.41¢13 706
1
#6
51177-01A00
.SPRING, REBOUND
No Disponible
1
#7
51146-42AA0
.CYLINDER
No Disponible
1
#8
51196-45200
.RING, PISTON
$11.38¢5 688
1
#9
51152-33300
.BUSH, GUIDE
$18.44¢9 219
1
#10
51168-30B00
.SPACER, SEAL
$7.75¢3 875
1
#11
51153-19D10
.SEAL, OIL
$28.16¢14 081
1
#12
51156-01A00
.RING, OIL SEAL STOPPER
$5.34¢2 669
1
#13
51173-01A00
.SEAL, DUST
$23.88¢11 938
1
#14
51110-01A30
.TUBE, INNER
No Disponible
1
#15
51121-33300
.PISTON
$34.19¢17 094
1
#16
51171-42AA0
.SPRING, MAIN
No Disponible
1
#17
51192-20510
.SEAT, SPRING
No Disponible
1
#18
51176-42AA0
.SPACER, SPRING
No Disponible
1
#19
51181-31030
.O RING
$5.36¢2 681
1
#20
51175-47400
.BOLT, SPRING
No Disponible
1
#21
51169-47400
.RING, STOPPER
$3.65¢1 825
1
#22
51189-31230
.CAP
$12.66¢6 331
1
#23
51104-42AA0
DAMPER ASSY, FRONT FORK LH
No Disponible
1
#24
51141-01A01
.TUBE, OUTER LH
No Disponible
1
#25
51148-36011
.GASKET
$4.25¢2 125
1
#26
51147-06F10
.BOLT
$8.09¢4 044
1
#27
51195-43530
.PIECE, OIL LOCK
$27.41¢13 706
1
#28
51177-01A00
.SPRING, REBOUND
No Disponible
1
#29
51146-42AA0
.CYLINDER
No Disponible
1
#30
51196-45200
.RING, PISTON
$11.38¢5 688
1
#31
51152-33300
.BUSH, GUIDE
$18.44¢9 219
1
#32
51168-30B00
.SPACER, SEAL
$7.75¢3 875
1
#33
51153-19D10
.SEAL, OIL
$28.16¢14 081
1
#34
51156-01A00
.RING, OIL SEAL STOPPER
$5.34¢2 669
1
#35
51173-01A00
.SEAL, DUST
$23.88¢11 938
1
#36
51110-01A30
.TUBE, INNER
No Disponible
1
#37
51121-33300
.PISTON
$34.19¢17 094
1
#38
51171-42AA0
.SPRING, MAIN
No Disponible
1
#39
51192-20510
.SEAT, SPRING
No Disponible
1
#40
51176-42AA0
.SPACER, SPRING
No Disponible
1
#41
51181-31030
.O RING
$5.36¢2 681
1
#42
51175-47400
.BOLT, SPRING
No Disponible
1
#43
51169-47400
.RING, STOPPER
$3.65¢1 825
1
#44
51189-31230
.CAP
$12.66¢6 331
1
#45
51576-42AA0
BAND, BOOT LOWER
$17.94¢8 969
1
#46
51571-01A00-019
BOOT (BLACK)
$61.34¢30 669
1
#47
51575-01A00
BAND, BOOT UPPER
$14.94¢7 469
1
