WIRING HARNESS VL800TL6 E28

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

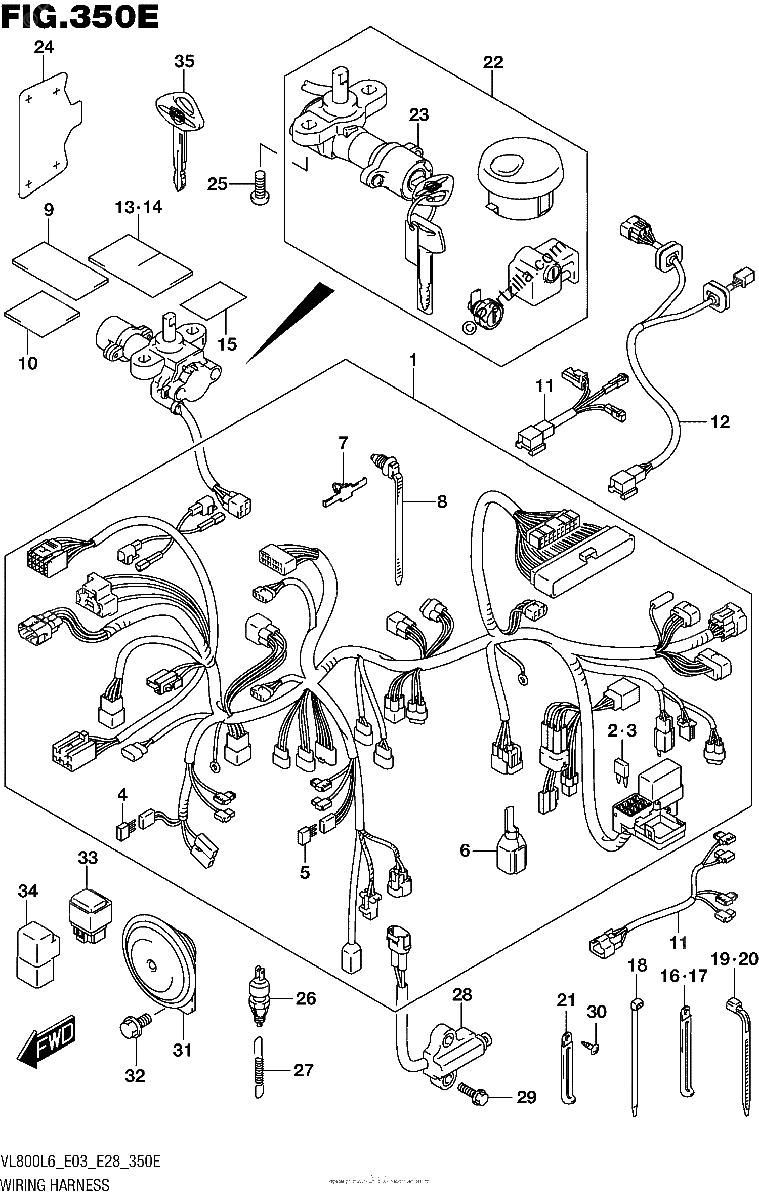

Diagrama de WIRING HARNESS VL800TL6 E28

Repuestos

#1
36610-43H60
HARNESS, WIRING
$876.78¢438 391
1
#2
09481-10501
.FUSE (10A)
$2.48¢1 242
1
#3
09481-20501
.FUSE (20A)
No Disponible
1
#4
32800-16A00
.RECTIFIER ASSY
$25.31¢12 656
1
#5
36611-38A10
.DIODE
$14.85¢7 423
1
#6
36717-41F00
.BOOT
No Disponible
1
#7
09407-05410
.CLAMP
No Disponible
1
#8
09407-17403
CLAMP (L:154)
$5.54¢2 772
1
#9
36611-16G00
TAPE, WIRING HARNESS
$3.77¢1 886
1
#10
36611-41F00
TAPE WIRING (30X50X3)
No Disponible
1
#11
36856-41F00
WIRE, REARCOMBINATIONNO.2
$45.71¢22 856
1
#12
36858-41F00
WIRE, REARCOMBINATION
$40.54¢20 269
1
#13
36920-33C00
PROTECTOR, HARNESS (30X50X3)
No Disponible
1
#14
36920-33C00
PROTECTOR, HARNESS (30X50X3)
No Disponible
1
#15
94474-17H00
PROTECTOR, WIRING HARNESS
$5.69¢2 846
1
#16
09404-06434
CLAMP (L:80 T:1.0) | SHIELD
$2.10¢1 052
1
#17
09404-06435
CLAMP (L:135)
$4.45¢2 225
1
#18
09407-14407
CLAMP (L:145)
$3.36¢1 679
1
#19
09407-18402
CLAMP (L:165)
$2.66¢1 328
1
#20
09407-19401
CLAMP (L:190)
$3.68¢1 840
1
#21
09404-06429
CLAMP (L:45)
$2.14¢1 070
1
#22
37102-41870
LOCK SET
$404.72¢202 360
1
#23
37100-41F70
.LOCK ASSY, STEERING
$187.74¢93 869
1
#24
37187-41F10
PROTECTOR, IGNITION SWITCH
$15.10¢7 550
1
#25
09139-08016
BOLT (8X20)
$3.65¢1 823
1
#26
37740-24A00
SWITCH ASSY, STOP LAMP
$19.96¢9 982
1
#27
09443-06073
SPRING
$3.75¢1 874
1
#28
37840-41F00
SWITCH ASSY, SIDE STAND
$74.96¢37 479
1
#29
01550-0620B
BOLT (6X20)
$2.85¢1 426
1
#30
03541-0512A
SCREW
$1.64¢822
1
#31
38500-41F30
HORN ASSY
$108.94¢54 470
1
#32
01550-0816A
BOLT
$2.77¢1 386
1
#33
38740-24A00
RELAY ASSY, HEADLAMP
$78.60¢39 301
1
#34
38740-24X50
RELAY ASSY, FAN MOTOR
$49.59¢24 794
1
#35
37146-41FA0
KEY, BLANK in.BOULEVARDin. | OPT
$62.88¢31 441
1
