REAR MASTER CYLINDER GSX S750L6 E03

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

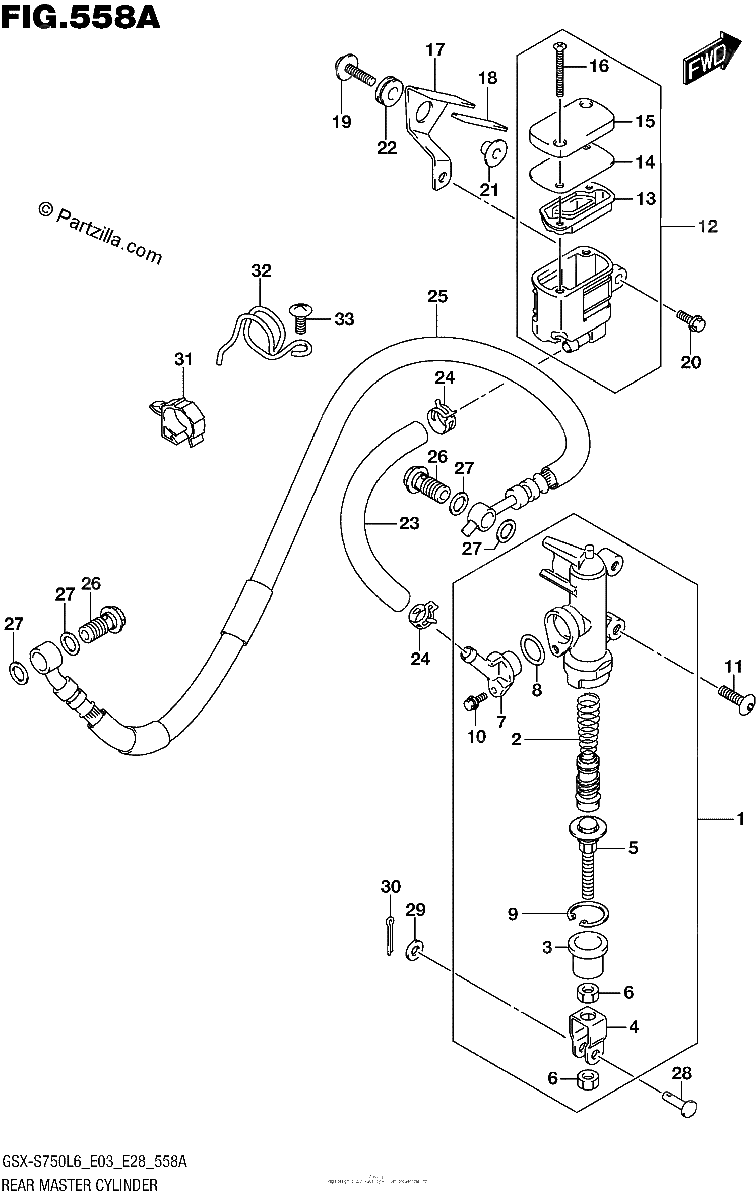

Diagrama de REAR MASTER CYLINDER GSX S750L6 E03

Repuestos

#1
69600-08J00
CYLINDER ASSY, REAR MASTER
$338.58¢169 291
1
#2
69600-34810
.PISTON/CAP SET
$70.17¢35 087
1
#3
69691-00A00
..BOOT
$5.99¢2 996
1
#4
69692-44H00
.YOKE
$20.95¢10 476
1
#5
69670-27A30
.ROD, PUSH
$32.58¢16 290
1
#6
69693-05A00
.NUT
$2.13¢1 064
1
#7
69672-08J10
.CONNECTOR
$10.15¢5 077
1
#8
69686-34200
.O RING
$3.36¢1 679
1
#9
69665-47H00
.CIRCLIP
$6.23¢3 117
1
#10
02112-7412A
.SCREW
$2.55¢1 277
1
#11
09139-06028
SCREW (6X20)
$3.99¢1 995
1
#12
69740-18K00
TANK ASSY, RESERVOIR
$30.82¢15 410
1
#13
69667-01H00
.DIAPHRAGM
$7.82¢3 910
1
#14
69668-01H00
.PLATE, DIAPHRAGM
$7.44¢3 720
1
#15
69669-01H00
.CAP
No Disponible
1
#16
69689-01H00
.SCREW
$5.52¢2 760
1
#17
69750-08J00
BRACKET, REAR RESERVOIR TANK
No Disponible
1
#18
69752-08J00
CUSHION, BRACKET NO.2
No Disponible
1
#19
09116-06202
BOLT (6X25)
$3.83¢1 915
1
#20
01547-0612A
BOLT
$2.42¢1 208
1
#21
09180-06325
SPACER (6.2X8.4X6.9)
$4.15¢2 076
1
#22
09320-08066
CUSHION
$8.91¢4 456
1
#23
69731-08J00
HOSE, REAR RESERVOIR TANK
$23.37¢11 684
1
#24
09401-12404
CLIP
$2.84¢1 420
1
#25
69480-08J00
HOSE, REAR BRAKE
$101.17¢50 583
1
#26
09360-10062
UNION
$6.97¢3 484
1
#27
09161-10009
WASHER (10X15X1.5)
$2.20¢1 098
1
#28
09200-06068
PIN (6X18.2)
$4.45¢2 225
1
#29
08322-0106A
WASHER
$2.20¢1 098
1
#30
04111-2015A
COTTER PIN
$1.46¢730
1
#31
09403-17306
CLAMP
$3.16¢1 581
1
#32
61196-08J00
GUIDE, REAR BRAKE HOSE
No Disponible
1
#33
02142-0616A
SCREW
$1.64¢822
1
