FRAME COVER FOR YKV AJX

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

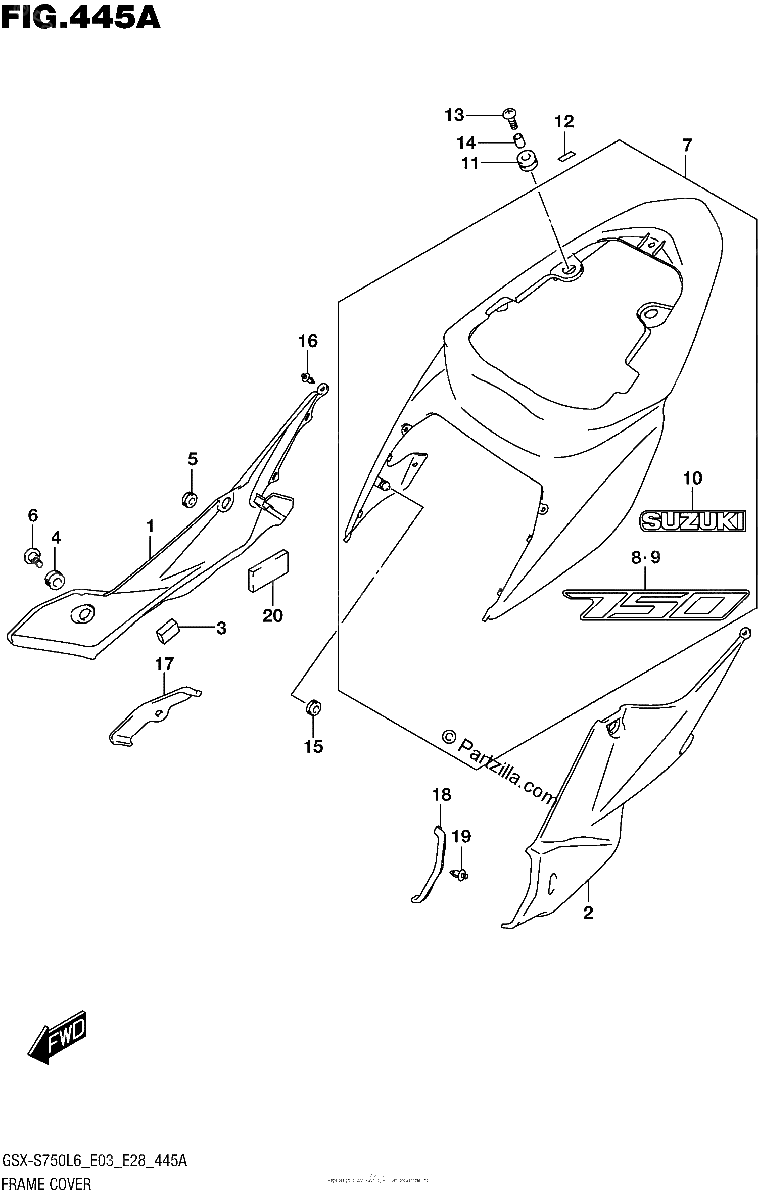

Diagrama de FRAME COVER FOR YKV AJX

Repuestos

#1
47511-08J00-291
COVER, FRAME FRONT RH (BLACK)
$114.66¢57 331
1
#2
47611-08J00-291
COVER, FRAME FRONT LH (BLACK)
$104.41¢52 206
1
#3
94422-06G00
CUSHION
$7.85¢3 925
1
#4
09320-09016
CUSHION
$2.56¢1 281
1
#5
47113-37H00
CUSHION
$5.98¢2 988
1
#6
47118-08J00
SCREW, FRAME COVER FRONT
$5.88¢2 938
1
#11
47312-37H00
CUSHION
$3.65¢1 825
1
#12
94443-06G00
TAPE, REAR FENDER
$3.88¢1 938
1
#13
09136-06105
SCREW (6X20)
$2.59¢1 294
1
#14
09180-06283
SPACER (6.5X10X7)
$2.46¢1 231
1
#15
09320-08018
CUSHION | LH
$3.65¢1 825
1
#16
09409-06314-5PK
CLIP (BLACK)
$3.60¢1 800
1
#17
47711-08J00
COVER, FRAME TOP RH
$9.94¢4 969
1
#18
47811-08J00
COVER, FRAME TOP LH
$9.94¢4 969
1
#19
09409-07333
CLIP
$2.99¢1 494
1
#20
33652-20C00
CUSHION (50X50X5)
$3.65¢1 825
1
#7-1
47310-08J00-AJX
COVER, FRAME CENTER (WHITE) | FOR AJX
No Disponible
1
#7-2
47310-08J20-4TX
COVER, FRAME CENTER (BLACK) | FOR YKV
No Disponible
1
#8-1
68161-08J00-AHS
.EMBLEM, in.750in. RH | FOR AJX
$18.38¢9 188
1
#8-2
68161-08J00-A39
.EMBLEM, in.750in. RH (RED/BLACK) | FOR 4TX
No Disponible
1
#9-1
68171-08J00-AHS
.EMBLEM, in.750in. LH | FOR AJX
$18.38¢9 188
1
#9-2
68171-08J00-A39
.EMBLEM, in.750in. LH (RED/BLACK) | FOR 4TX
$18.38¢9 188
1
#10-1
68171-28H00-YU8
.EMBLEM, in.SUZUKIin. (GRAY) | FOR AJX
$8.81¢4 406
1
#10-2
68171-28H10-CTY
.EMBLEM, in.SUZUKIin. | FOR 4TX
$10.97¢5 488
1
