CRANKCASE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

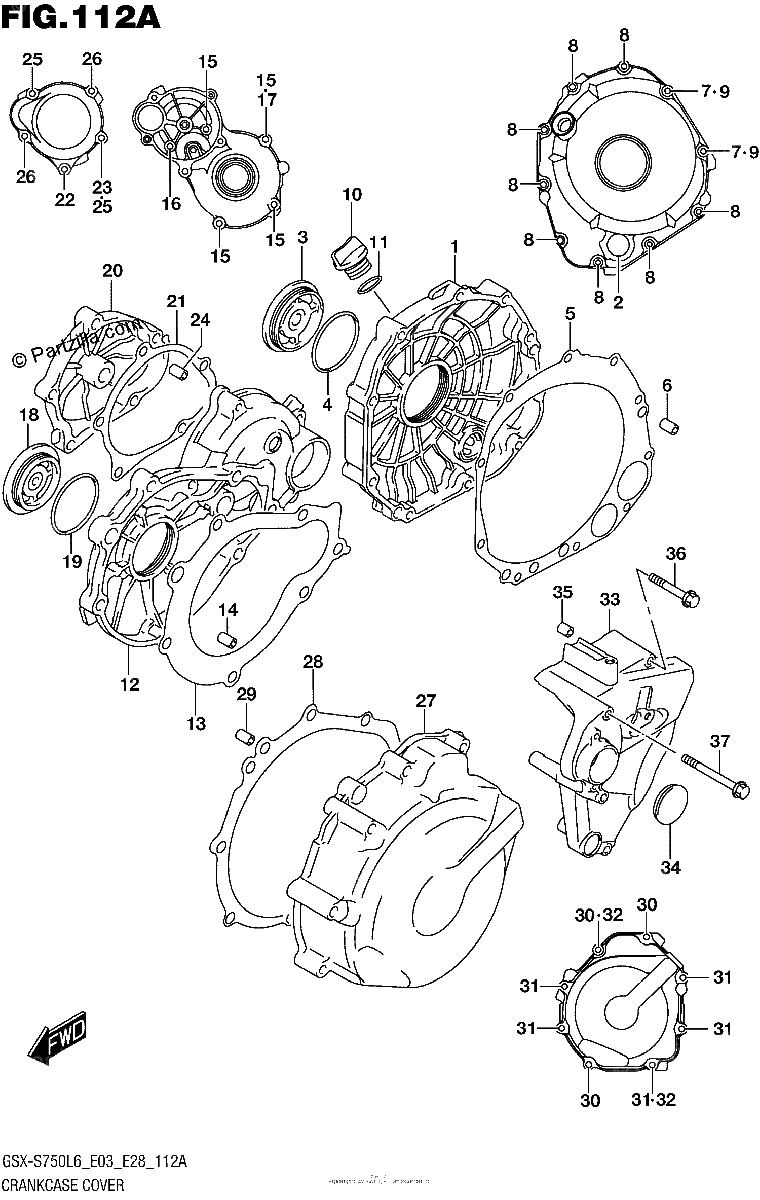

Diagrama de CRANKCASE COVER

Repuestos

#1
11340-44G10
COVER, CLUTCH
$317.71¢158 855
1
#2
11971-33210
.LENS, OIL LEVEL CHECK
$19.96¢9 982
1
#3
11342-41G10
CAP, CLUTCH RELEASE ADJUST
$27.47¢13 737
1
#4
31156-17E00
O RING
$5.05¢2 524
1
#5
11482-40F10
GASKET, CLUTCH COVER
$17.22¢8 608
1
#6
04211-09189
PIN
$1.97¢983
1
#7
09168-06023
GASKET (5.8X13X1.2)
$2.42¢1 208
1
#8
09103-06213
BOLT (6X30)
$2.93¢1 466
1
#9
09103-06215
BOLT (6X40)
$3.35¢1 673
1
#10
11971-25D00
PLUG, ENGINE OIL FILLER
$5.60¢2 800
1
#11
09280-17003
O RING (D:3.1,ID:16.8)
$1.97¢983
1
#12
11381-35F10
COVER, STARTER CLUTCH
$317.86¢158 930
1
#13
11491-33E02
GASKET, STARTER CLUTCH COVER
$9.58¢4 790
1
#14
04211-09149
PIN
$1.97¢983
1
#15
09103-06212
BOLT (6X25)
$2.93¢1 466
1
#16
09103-06214
BOLT (6X35)
$2.98¢1 489
1
#17
09168-06023
GASKET (5.8X13X1.2)
$2.42¢1 208
1
#18
09259-36021
PLUG
$14.93¢7 464
1
#19
09280-33004
O RING (D:3.1,ID:32.7)
$2.69¢1 346
1
#20
11382-33E10
CAP, STARTER IDLE GEAR
$85.59¢42 797
1
#21
11492-33E00
GASKET, STARTER IDLE GEAR CAP
$7.92¢3 962
1
#22
09103-06216
BOLT (6X55)
$3.31¢1 656
1
#23
09168-06023
GASKET (5.8X13X1.2)
$2.42¢1 208
1
#24
04211-09149
PIN
$1.97¢983
1
#25
09103-06212
BOLT (6X25)
$2.93¢1 466
1
#26
09103-06214
BOLT (6X35)
$2.98¢1 489
1
#27
11351-18G20
COVER, MAGNETO
$158.41¢79 206
1
#28
11483-18G00
GASKET, MAGNETO COVER
$12.13¢6 066
1
#29
04211-09149
PIN
$1.97¢983
1
#30
09103-06213
BOLT (6X30)
$2.93¢1 466
1
#31
09103-06224
BOLT (6X45)
$3.21¢1 604
1
#32
09168-06023
GASKET (5.8X13X1.2)
$2.42¢1 208
1
#33
11361-08J00
COVER, ENGINE SPROCKET
$182.59¢91 293
1
#34
09250-30003
CAP (OD:36)
$4.21¢2 105
1
#35
04211-09129
PIN
$1.97¢983
1
#36
01547-0665A
BOLT
$2.81¢1 403
1
#37
01547-0695A
BOLT
$3.68¢1 840
1
