FUEL TANK FOR YSF

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

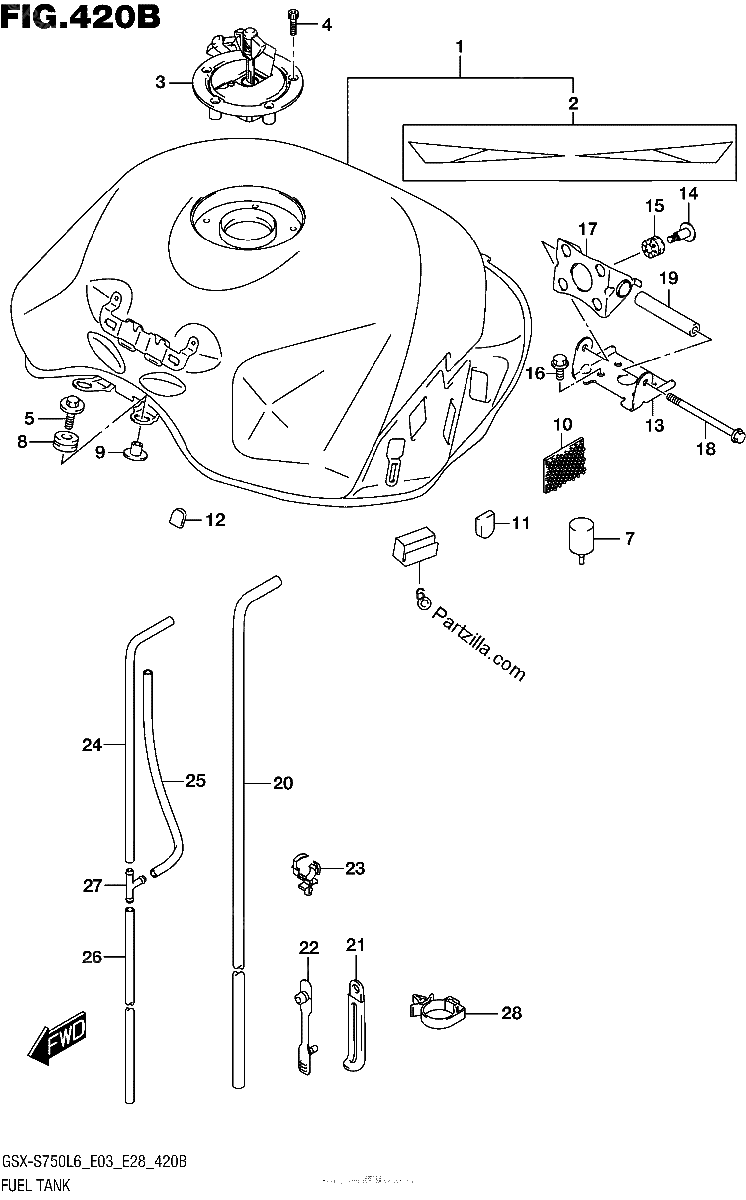

Diagrama de FUEL TANK FOR YSF

Repuestos

#1
44100-08J20-YSF
TANK ASSY, FUEL (BLUE)
No Disponible
1
#2
68110-08J00-A3F
.TAPE SET, FUEL TANK
No Disponible
1
#3
44200-16850
CAP SET, FUEL TANK
$129.67¢64 837
1
#4
09106-05017
BOLT (5X20)
$3.36¢1 679
1
#5
01560-0625A
BOLT
$3.30¢1 650
1
#6
44541-08J00
CUSHION, FUEL TANK SIDE
$6.76¢3 381
1
#7
44542-41G00
CUSHION, FUEL TANK REAR
$8.44¢4 220
1
#8
44511-16G00
CUSHION, FUEL TANK FRONT
$4.52¢2 260
1
#9
44512-16G00
SPACER, FUEL TANK FRONT
$8.15¢4 077
1
#10
44572-13G00
FASTENER
$12.13¢6 066
1
#11
44542-08J00
CUSHION, TANK COVER SIDE
$4.54¢2 271
1
#12
44543-08J00
CUSHION, TANK COVER CENTER
No Disponible
1
#13
44550-08J00
BRACKET, FUEL TANK REAR NO.2
$20.16¢10 080
1
#14
09139-06191
SCREW (6X22)
$4.42¢2 208
1
#15
09320-08071
CUSHION
$3.66¢1 829
1
#16
01550-0612A
BOLT
$2.36¢1 179
1
#17
44530-41G01
BRACKET, FUEL TANK REAR
$50.37¢25 185
1
#18
07120-0695A
BOLT
$2.79¢1 397
1
#19
44561-18G00
SPACER, FUEL TANK REAR
$18.61¢9 304
1
#20
44423-08J02
HOSE, FUEL TANK DRAIN
No Disponible
1
#21
09404-06434
CLAMP (L:80 T:1.0) | SHIELD
$2.10¢1 052
1
#22
09407-05406
CLAMP (L:118)
$1.64¢822
1
#23
09403-18307
CLAMP
$3.77¢1 886
1
#24
44424-08J01
HOSE, BREATHER NO.1
No Disponible
1
#25
44424-15H10
HOSE, BREATHER NO.3
$17.04¢8 522
1
#26
44420-44AR0
HOSE,5X8.2X600 | L:600-260
No Disponible
1
#27
09367-06007
3 WAY
$3.81¢1 903
1
#28
09403-18409
CLAMP
$2.67¢1 334
1
