TRANSMISSION SYSTEM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

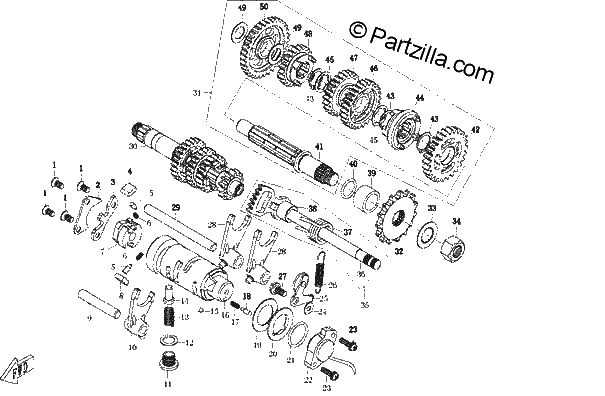

Diagrama de TRANSMISSION SYSTEM

Repuestos

#1
30107-060012410
SCREW M6X12
$2.29¢1 144
1
#2
0A70-060006
PAWL PLATE, GEARSHIFT
$4.59¢2 294
1
#3
0A70-060005
CAM GUIDE
$5.74¢2 869
1
#4
0A70-064005
RIGHT HAND PAWL
$3.44¢1 719
1
#5
0A70-064006
PIN, GEARSHIFT
$2.29¢1 144
1
#6
0A70-064007
SPRING
$1.25¢627
1
#7
0A70-064100
DRIVEN GEAR
$9.19¢4 594
1
#8
0A70-064008
LEFT HAND PAWL
$1.25¢627
1
#9
0A70-060001
FORK SHAFT, MIDDLE
$5.74¢2 869
1
#10
0A70-060002
FORK, MIDDLE
$6.89¢3 444
1
#11
0180-021008-00001
BOLT
$3.44¢1 719
1
#12
0180-011006
GASKET 14
$2.29¢1 144
1
#13
0A70-060012
SPRING, NEUTRAL
$1.14¢569
1
#14
0A70-060013
STOPPER, NEUTRAL
$3.44¢1 719
1
#15
30901-0400600
PIN
$1.25¢627
1
#16
0A70-064200
HUB, GEAR SHIFT DRUM
$34.49¢17 244
1
#17
0A70-064003
SPRING
$1.25¢627
1
#18
0A70-064004
CONTACTOR, GEAR SWITCH
$1.25¢627
1
#19
0A70-064001
WASHER
$1.25¢627
1
#20
0A70-064002
LOCATED PLATE, CAM
$3.44¢1 719
1
#21
0A70-060014
O RING
$1.25¢627
1
#22
0A70-066000
GEAR POSITION SENSOR
$11.49¢5 744
1
#23
30116-050020410
SCREW COMP
$1.25¢627
1
#24
0A70-065002
WASHER 6
$1.25¢627
1
#25
0A70-065100
STOPPER, CAM
$5.74¢2 869
1
#26
0A70-065003
GEARSHIFT LOCATED SPRIING
$1.14¢569
1
#27
0A70-065001
BOLT,CAM, M6
$1.14¢569
1
#28
0A70-060004
SHIFT FORK
$6.89¢3 444
1
#29
0A70-060003
FORK SHAFT
$4.59¢2 294
1
#30
0A70-061000
MAIN SHAFT
$91.99¢45 994
1
#31
0A70-062000
COUNTERSHAFT
$57.49¢28 744
1
#32
0A70-060007
FRONT SPROCKET
$6.89¢3 444
1
#33
0A70-060008
LOCK WASHER
$1.14¢569
1
#34
0A70-060009
NUT M16X1.5
$1.14¢569
1
#35
0A70-063000
GEARSHIFT ROD ASSEMBLY
$17.24¢8 619
1
#39
0A70-060010
BUSHING, DRIVE SPROCKET
$11.49¢5 744
1
#40
0A70-060011
O RING
$1.14¢569
1
