FRAME ASSY

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

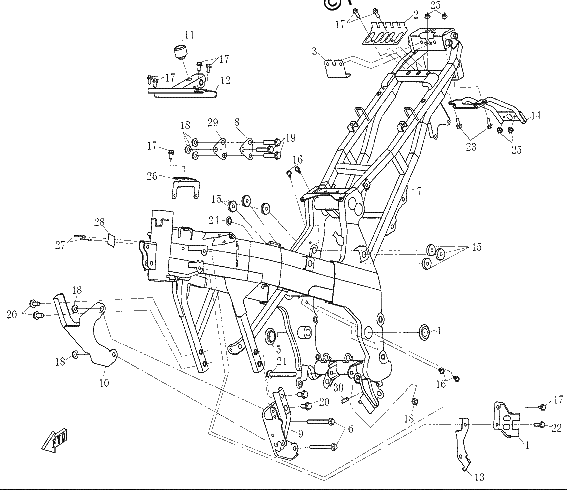

Diagrama de FRAME ASSY

Repuestos

#1
6100-030001
BRACKET, CANISTER
No Disponible
1
#2
6100-030002
MOUNT PLATE, RELAY
No Disponible
1
#3
6100-030003
BRACKET, SEAT LOCK
No Disponible
1
#4
6100-030004
RUBBER CAP, LEFT HAND
$1.14¢569
1
#5
6100-030005
RUBBER CAP, RIGHT HAND
$1.14¢569
1
#6
30006-080085810
BOLT M8X85
$2.29¢1 144
1
#7
6100-031000-0B00
FRAME ASSEMBLY
No Disponible
1
#8
6100-032001
UPPER JOINT(LEFT HAND), ENGINE
No Disponible
1
#9
6100-032020
LEFT HAND LOWER JOINT PLATE, ENGINE
No Disponible
1
#10
6100-032030
LOWER JOINT(RIGHT HAND), ENGINE
No Disponible
1
#11
A000-120001
RUBBER SUPPORT
$3.44¢1 719
1
#12
6100-032300
BRACKET, FUEL TANK
No Disponible
1
#13
6100-035000
MOUNT PLATE, HORN
No Disponible
1
#14
6100-036000
BRACKET, REAR FENDER
No Disponible
1
#15
6090-120001
RUBBER COLLAR
$3.44¢1 719
1
#16
A000-050015
WIRE CLIP, FRONT BRAKE FLUID HOSE
$1.25¢627
1
#17
30006-060012870
BOLT M6X12
$0.69¢345
1
#18
30204-080810
NUT M8
$1.25¢627
1
#19
30006-080055840
BOLT M8X55
$1.14¢569
1
#20
30006-080020810
BOLT M8X20
$1.25¢627
1
#21
30006-080090840
BOLT M8X90
$1.14¢569
1
#22
30006-060025810
BOLT M6X25
$3.44¢1 719
1
#23
30006-060016810
BOLT M6X16
$1.25¢627
1
#24
6100-030006
GASKET, ADJUST HOLE
$1.25¢627
1
#25
30204-060840
NUT M6
$1.25¢627
1
#26
610A-037010
BRACKET, IGNITION COIL
No Disponible
1
#27
30902-0401320
BLIND RIVET
$1.25¢627
1
#28
8010-030008
VIN PLATE
$1.14¢569
1
#28
610A-190010
VIN PLATE
No Disponible
1
#29
6100-032010
UPPER JOINT(RIGHT HAND), ENGINE
No Disponible
1
#30
6090-031241-1000
SPRING PILLAR, SIDE STAND
$4.59¢2 294
1
