PLASTIC PARTS II

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

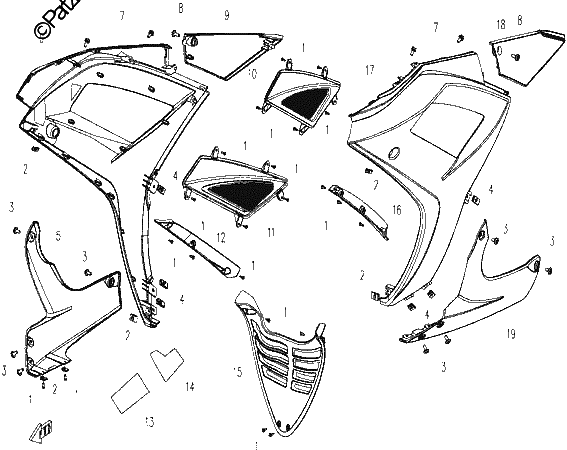

Diagrama de PLASTIC PARTS II

Repuestos

#1
30110-421130010
SELF TAPPING SCREW ST4.2X13
$2.05¢1 025
1
#2
8010-000002
CLAMP ST4.2
$2.49¢1 244
1
#3
6KM-040702-8000
INNER HEX SCREW M6X12
$1.36¢681
1
#4
5020-040051
NUT M6
$2.49¢1 244
1
#5
6100-041401
LOWER BASE PLATE, RIGHT HAND
$12.49¢6 244
1
#6
6100-041001-0E60
FRONT RIGHT HAND PANEL ROYAL BLUE
No Disponible
1
#6
6100-041001-0RC0
FRONT RIGHT HAND PANEL PEARL RED
No Disponible
1
#6
6100-041001-0V20
FRONT RIGHT HAND PANEL PEARL WHITE
No Disponible
1
#6
6100-041001-0Y60
FRONT RIGHT HAND PANEL CRYSTAL ORANGE
No Disponible
1
#6
6100-041001-0B30
FRONT RIGHT HAND PANEL PEARL BLACK
No Disponible
1
#6
6100-041001-0B80
FRONT RIGHT HAND PANEL MATTE PEARL BLACK
No Disponible
1
#7
30006-060012870
BOLT M6X12
$0.75¢375
1
#8
A000-060002
SCREW, CHAIN GUARD
$7.49¢3 744
1
#9
6100-041201-0B80
CONNECTING PLATE, RIGHT HAND MATTE PEARL BLACK
No Disponible
1
#9
6100-041201-0E60
CONNECTING PANEL, RIGHT HAND, ROYAL BLUE
No Disponible
1
#9
6100-041201-0Y60
CONNECTING PANEL, RIGHT HAND, CRYSTAL ORANGE
No Disponible
1
#9
6100-041201-0V20
CONNECTING PANEL, RIGHT HAND, PEARL WHITE
No Disponible
1
#9
6100-041201-0RC0
CONNECTING PANEL, RIGHT HAND, PEARL RED
No Disponible
1
#9
6100-041201-0B30
CONNECTING PANEL, RIGHT HAND, PEARL BLACK
No Disponible
1
#10
6100-040701
FRONT DECO COVER, LEFT HAND
$6.24¢3 119
1
#11
6100-040801
FRONT DECO COVER, RIGHT HAND
$6.24¢3 119
1
#12
6100-042501
INNER WINDSHIELD STRIP, RIGHT HAND
$6.24¢3 119
1
#13
6100-041402
HEAT INSULATOR, RIGHT PANEL
$1.86¢931
1
#14
6100-041403
HEAT INSULATOR, RIGHT LOWER
$3.74¢1 869
1
#15
6100-040601
FRONT GRILL
$7.49¢3 744
1
#16
6100-042401
LEFT HAND INNER DEFLECTOR
$1.86¢931
1
#17
6100-040901-0Y60
FRONT LEFT HAND PANEL CRYSTAL ORANGE
No Disponible
1
#17
6100-040901-0B30
FRONT LEFT HAND PANEL PEARL BLACK
No Disponible
1
#17
6100-040901-0E60
FRONT LEFT HAND PANEL ROYAL BLUE
No Disponible
1
#17
6100-040901-0RC0
FRONT LEFT HAND PANEL PEARL RED
No Disponible
1
#17
6100-040901-0B80
FRONT LEFT HAND PANEL MATTE PEARL BLACK
No Disponible
1
#17
6100-040901-0V20
FRONT LEFT HAND PANEL PEARL WHITE
No Disponible
1
#18
6100-041101-0V20
CONNECTING PANEL, LEFT HAND, PEARL WHITE
No Disponible
1
#18
6100-041101-0RC0
CONNECTING PANEL, LEFT HAND, PEARL RED
No Disponible
1
#18
6100-041101-0Y60
CONNECTING PANEL, LEFT HAND, CRYSTAL ORANGE
No Disponible
1
#18
6100-041101-0B30
CONNECTING PANEL, LEFT HAND, PEARL BLACK
No Disponible
1
#18
6100-041101-0B80
CONNECTING PLATE, LEFT HAND MATTE PEARL BLACK
No Disponible
1
#18
6100-041101-0E60
CONNECTING PANEL, LEFT HAND, ROYAL BLUE
No Disponible
1
#19
6100-041301
LOWER BASE PLATE, LEFT HAND
$16.24¢8 119
1
