FOOTREST REAR HANDRAIL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

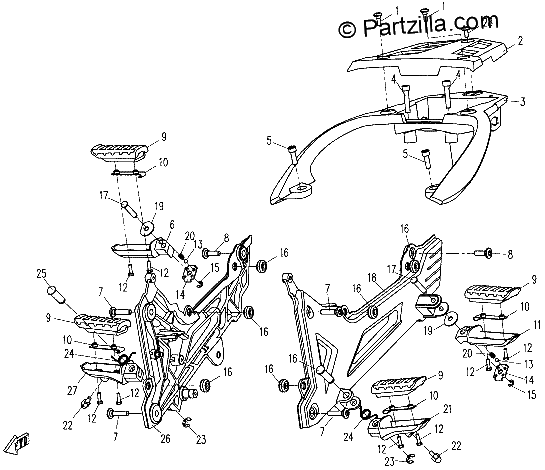

Diagrama de FOOTREST REAR HANDRAIL

Repuestos

#1
A000-060002
SCREW, CHAIN GUARD
$7.49¢3 744
1
#2
A010-140202
DECO COVER, REAR HANDRAIL
$9.99¢4 994
1
#3
A010-140201-0H30
REAR HANDRAIL
$162.49¢81 244
1
#3
A010-140201
REAR ARMREST
$162.49¢81 244
1
#4
30102-080045810
INNER HEX SCREW, M8X45
$2.49¢1 244
1
#5
30102-080030860
INNER HEX SCREW, M8X30
$3.74¢1 869
1
#6
A010-140151
REAR STEP SEAT,Right Hand
$18.74¢9 369
1
#7
6KM0-140107
BOLT M8
$2.49¢1 244
1
#8
A000-020008
BOLT M8X20
$7.49¢3 744
1
#9
A010-140122
PEDAL ERADER
$11.24¢5 619
1
#10
A010-140160
PEDAL JOINT PLATE COMP.
$21.24¢10 619
1
#11
A010-140141-1V100
REAR LEFT HAND FOOTREST SEAT SILVER WHITE
No Disponible
1
#12
30105-050016410
SCREW M5X16
$1.36¢681
1
#13
5190-037814
STEEL BALL
$1.24¢619
1
#14
A000-140104
LOCATING GASKET 1
$3.74¢1 869
1
#15
30802-00605
CIRCLIP
$1.36¢681
1
#16
A000-040302
RUBBER DAMPER
$3.74¢1 869
1
#17
A000-140142
PIN SHAFT 8
$3.74¢1 869
1
#18
A010-140101-0V10
BRACKET,LEFT HAND FOOTREST, SILVER WHITE
$113.31¢56 656
1
#18
A010-140101-1B800
LEFT HAND FOOTREST BRACKET MATTE PEARL BLACK
No Disponible
1
#19
A000-140106
LOCATING GASKET 2
$2.49¢1 244
1
#20
5190-037813
SPRING
$2.49¢1 244
1
#22
A010-140123
LIMIT BOLT
No Disponible
1
#23
30802-00903
SPLIT WASHER
$1.36¢681
1
#24
A000-140103-20000
SPRING
$2.49¢1 244
1
#25
A000-140141
PIN SHAFT 12
$6.24¢3 119
1
#26
A010-140110-1B800
RIGHT HAND FOOTREST BRACKET ASSEMBLY MATTE PEARL BLACK
No Disponible
1
#27
A010-140131-1V100
FRONT STEP SEAT, RIGHT HAND SILVER
No Disponible
1
#28
6KM-040702-8000
INNER HEX SCREW M6X12
$1.36¢681
1
