PLASTIC II

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

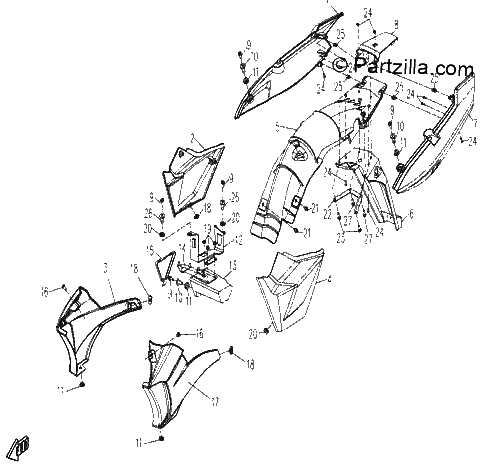

Diagrama de PLASTIC II

Repuestos

#1
6090-040602-0B50
RIGHT HAND REAR PANEL TITANIUM GREY
No Disponible
1
#1
6090-040602-0E70
RIGHT HAND REAR PANEL CRYSTAL BLUE
No Disponible
1
#1
6090-040602-0RA0
RIGHT HAND REAR PANEL SUZUKI RED
No Disponible
1
#1
6090-040602-0B30
RIGHT HAND REAR PANEL PEARL BLACK
No Disponible
1
#1
6090-040602-0E20
RIGHT HAND REAR PANEL SUZUKI BLUE
No Disponible
1
#1
6090-040602-0Y60
RIGHT HAND REAR PANEL CRYSTAL ORANGE
No Disponible
1
#2
6090-040402-0B30
MIDDLE PROTECTION PLATE ,RIGHT HAND, PEARL BLACK
No Disponible
1
#3
6090-041201-1B30
FRONT PROTECTION COVER (RIGHT HAND), PEARL BLACK
No Disponible
1
#4
6090-040401-0B30
LEFT HAND MIDDLE PANEL PEARL BLACK
No Disponible
1
#5
6090-040801
REAR INNER FENDER
$24.99¢12 494
1
#6
6090-040802
REAR FENDER
$12.49¢6 244
1
#7
6090-040601-0Y60
REAR LEFT HAND PANEL CRYSTAL ORANGE
No Disponible
1
#7
6090-040601-0B30
REAR LEFT HAND PANEL PEARL BLACK
No Disponible
1
#7
6090-040601-0B50
REAR LEFT HAND PANEL TITANIUM GREY
No Disponible
1
#7
6090-040601-0E20
REAR LEFT HAND PANEL SUZUKI BLUE
No Disponible
1
#7
6090-040601-0E70
REAR LEFT HAND PANEL CRYSTAL BLUE
No Disponible
1
#7
6090-040601-0RA0
REAR LEFT HAND PANEL SUZUKI RED
No Disponible
1
#8
6090-040701-0E20
UPPER COVER,TAIL LIGHT, DARK BLUE
No Disponible
1
#8
6090-040701-0Y60
UPPER COVER,TAIL LIGHT, CRYSTAL ORANGE
No Disponible
1
#8
6090-040701-0B50
UPPER COVER,TAIL LIGHT, TITANIUM GREY
No Disponible
1
#8
6090-040701-0RA0
UPPER COVER,TAIL LIGHT, SUZUKI RED
No Disponible
1
#8
6090-040701-0B30
UPPER COVER,TAIL LIGHT, PEARL BLACK
No Disponible
1
#8
6090-040701-0E70
UPPER COVER,TAIL LIGHT, CRYSTAL BLUE
No Disponible
1
#9
30006-060016810
BOLT M6X16
$1.36¢681
1
#10
6090-040303
BUSHING
$1.36¢681
1
#11
6090-040302
RUBBER DAMPER
$1.36¢681
1
#12
6090-032100
STAND COMP
No Disponible
1
#13
6090-040502
TOOL BOX
$6.24¢3 119
1
#14
6090-040510
MOUNTING PLATE,TOOL BOX
No Disponible
1
#15
6090-040501
TOOL BOX COVER
$1.24¢619
1
#16
30105-060012440
SCREW M6X12
$1.24¢619
1
#17
6090-041101-1B30
FRONT PROTECTION COVER (LEFT HAND), PEARL BLACK
No Disponible
1
#18
6090-040403
CUSHION CASE
$1.36¢681
1
#19
30202-060110
NUT M6
No Disponible
1
#20
5BY0-040010
RUBBER SLEEVE
$2.49¢1 244
1
#21
30006-060012870
BOLT M6X12
$0.75¢375
1
#22
6090-040803
REINFORCEMENT PLATE
No Disponible
1
#23
30102-080025840
INNER HEX SCREW, M8X25
$1.24¢619
1
#24
30110-421130010
SELF TAPPING SCREW ST4.2X13
$2.05¢1 025
1
#25
8010-000002
CLAMP ST4.2
$2.49¢1 244
1
#26
9010-160102
WASHER, HEADLIGHT
$1.36¢681
1
