REAR SUSPENSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

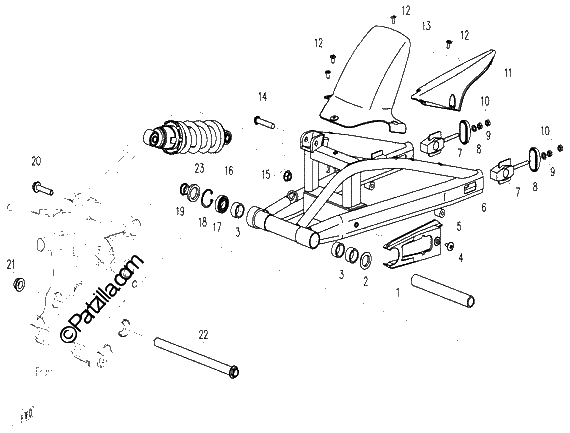

Diagrama de REAR SUSPENSION

Repuestos

#1
A000-060005
SLEEVE, REAR SWING ARM
$49.99¢24 994
1
#2
A000-060006
ANTI DUST RING
$3.74¢1 869
1
#3
30403-02800
NEEDLE BEARING HK28X35X16
$12.49¢6 244
1
#4
A000-060002
SCREW, CHAIN GUARD
$7.49¢3 744
1
#5
A000-060001
CHAIN GUARD
$12.49¢6 244
1
#6
A000-060300-0B30
REAR SWING ARM, PEARL BLACK
$187.49¢93 744
1
#7
A000-060210
ADJUSTER, CHAIN
$31.24¢15 619
1
#8
A000-060201-0B30
CAP, CHAIN ADJUSTER (PEARL BLACK)
No Disponible
1
#9
30306-080112
WASHER
$1.36¢681
1
#10
30200-080840
NUT M8
$2.49¢1 244
1
#11
A000-060009
CHAIN BOX
No Disponible
1
#12
A000-040703
INNER HEX SCREW
$2.49¢1 244
1
#13
A000-060008
FRONT PART, REAR FENDER
No Disponible
1
#14
30121-120060940
SCREW M12x1.75x60
$3.74¢1 869
1
#15
30204-120840
NUT M12X1.75
$2.49¢1 244
1
#16
A010-060100-0B00
REAR SHOCK ABSORBER
No Disponible
1
#17
30400-02004
BEARING 6004 2RZ
$12.49¢6 244
1
#18
30800-04205
CIRCLIP 42
$2.49¢1 244
1
#19
30500-030800N
OIL SEAL FB30X42X7
$3.74¢1 869
1
#20
30006-122060940
BOLT M12x1.25x60
No Disponible
1
#21
A000-060004
NUT, M20X1.5
$3.74¢1 869
1
#22
A000-060003
SHAFT, REAR FORK
$43.74¢21 869
1
#23
A000-060007
RIGHT HAND BUSHING, REAR SWING ARM
$16.24¢8 119
1
