FRAME ASSY

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

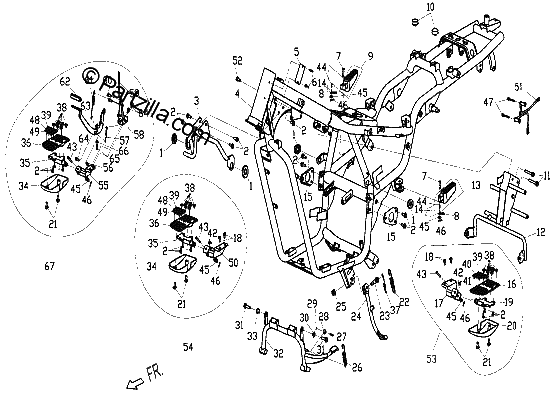

Diagrama de FRAME ASSY

Repuestos

#1
8010-180004
RUBBER CUSHION
$1.14¢569
1
#2
30006-060012870
BOLT M6X12
$0.69¢345
1
#3
8050-032900
FRONT BRACKET, FRONT PANEL
$11.49¢5 744
1
#4
8050-030100
FRAME WELDMENT
$1149.99¢574 994
1
#5
8010-030008
VIN PLATE
$1.14¢569
1
#6
30902-0401320
BLIND RIVET
$1.25¢627
1
#8
8030-034302
PEDAL FIXING PLATE
$4.59¢2 294
1
#9
8050-033600
FOOT PEDAL COMP.(Right Hand)
$45.99¢22 994
1
#10
8050-030001
RUBBER CUSHION, SEAT
$2.29¢1 144
1
#11
30006-060040840
BOLT, M6X40 (ARMY GREEN)
$1.14¢569
1
#12
805A-033000
REAR BRACKET, SPEAKER
$57.49¢28 744
1
#13
8050-033500
FOOT PEDAL COMP.(Left Hand)
$45.99¢22 994
1
#14
5190-037814
STEEL BALL
$1.14¢569
1
#15
8050-032800
REAR BRACKET ,FRONT PANEL
$5.74¢2 869
1
#16
8030-034101
FOOT REST (Left Hand)
$114.99¢57 494
1
#17
8050-034103
BRACKET,FOOT REST (Left Hand)
$17.24¢8 619
1
#18
30006-080014840
BOLT M8X14
$1.14¢569
1
#19
8050-034104
FIXTURE, FOOT REST (Left Hand)
$11.49¢5 744
1
#20
8030-044102
BOTTOM COVER ,FOOT REST (Left Hand)
$80.49¢40 244
1
#21
30112-060016410
SCREW (ARMY GREEN)
$2.29¢1 144
1
#22
8030-030003
SPRING, SIDE STAND
$1.14¢569
1
#23
8030-030016
BOLT, SIDE STAND
$4.59¢2 294
1
#24
8030-030002
SIDE STAND
$45.99¢22 994
1
#25
30204-102810
NUT M10X1.25
$1.25¢627
1
#26
8010-030007
RETURN SPRING, MAIN STAND
$4.59¢2 294
1
#27
30904-0501810
PIN SHAFT
No Disponible
1
#28
8030-030001
RUBBER RING,MAIN STAND
$1.14¢569
1
#29
30903-0121440
COTTER PIN. 1.2X14
$1.14¢569
1
#30
8030-030005
LEFT BUSH, MAIN STAND
$6.89¢3 444
1
#31
30006-102025810
BOLT M10X1.25X25 (ARMY GREEN)
$2.29¢1 144
1
#32
8030-034500
SIDE STAND
$114.99¢57 494
1
#33
6060-001001
RIGHT BUSH, MAIN STAND
$3.44¢1 719
1
#34
8030-044202
BOTTOM COVER ,FOOT REST (Right Hand)
$80.49¢40 244
1
#35
8050-034204
FIXTURE, FOOT REST (Right Hand)
$11.49¢5 744
1
#36
8050-0342C0-10000
FOOT PEDAL, RIGHT HAND
No Disponible
1
#37
8030-030004
SMALL SPRING, SIDE STAND
$1.14¢569
1
#38
8030-034105
ANTISKID RUBBER PIN
$1.14¢569
1
#39
8030-034106
ANTISKID RUBBER CUSHION
$1.14¢569
1
#40
8030-034107
ANTISKID CUSHION,FOOT PEDAL(Left Hand)
$0.56¢282
1
#41
8030-034108
ANTISKID CUSHION,FOOT PEDAL(Left Hand)
$0.56¢282
1
#42
8030-034102
TORSION SPRING,FOOTREST DECK
$11.49¢5 744
1
#43
30904-0804530
PIN SHAFT
$3.44¢1 719
1
#44
5190-037813
SPRING
$2.29¢1 144
1
#45
30306-080112
WASHER
$1.25¢627
1
#46
30903-0252040
COTTER PIN. 2.5X20
$1.14¢569
1
#47
30006-060050810
BOLT M6x50 (ARMY GREEN)
$1.25¢627
1
#48
8030-034206
ANTISKID CUSHION, FOOT PEDAL(Right Hand)
$0.56¢282
1
#49
8030-034205
ANTISKID CUSHION,FOOT PEDAL(Right Hand)
$0.56¢282
1
#50
8050-034203
MOUNTING BRACKET,FOOTREST DECK(Right Hand)
$17.24¢8 619
1
#51
8050-035600
MOUNTING BRACKET,RIGHT COVER
$11.49¢5 744
1
#52
30105-060016440
SCREW M6X16
$1.14¢569
1
#53
8050-0341C0-10000
FOOT PEDAL L/H
No Disponible
1
#54
8050-0342C0
FOOTREST PEDAL(Right Hand), DRIVER
$137.99¢68 994
1
#55
8050-034203-1000
MOUNT BRACKET, RIGHT FOOTSTEP (PEDAL BRAKE)
$45.99¢22 994
1
#56
8050-080303
BUSHING (PEDAL BRAKE)
$2.29¢1 144
1
#57
8010-090001
SPRING, REAR BRAKE SWITCH (PEDAL BRAKE)
$1.14¢569
1
#58
8050-080410
BRACKET, MASTER CYLINDER (PEDAL BRAKE)
$11.49¢5 744
1
#59
6090-150300
SWITCH
$9.19¢4 594
1
#60
30006-060020840
BOLT M6X20
$1.25¢627
1
#61
8050-080302
RETURN SPRING, REAR BRAKE (PEDAL BRAKE)
$3.44¢1 719
1
#62
8050-080304
RUBBER COLLAR, FOOTBRAKE LEVER (PEDAL BRAKE)
$9.19¢4 594
1
#63
8050-080510
LEVER, FOOT BRAKE (PEDAL BRAKE)
$45.99¢22 994
1
#64
30006-080020810
BOLT M8X20
$1.25¢627
1
#65
30102-060030840
INNER HEX SCREW M6X30
$1.25¢627
1
#66
30200-060810
NUT M6
$1.25¢627
1
#67
8050-0343C0
FOOTREST BOARD Assembly Right Hand
No Disponible
1
