MUFFLER REAR RACK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

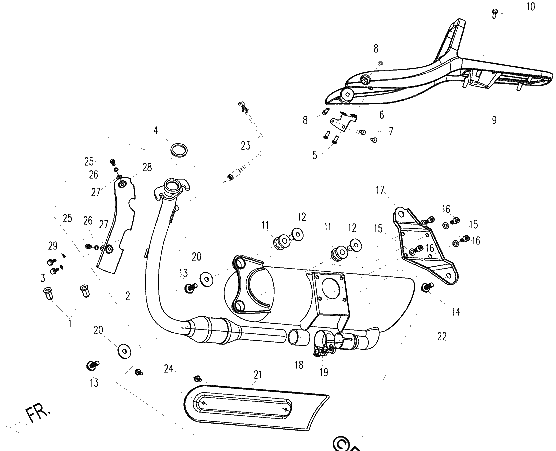

Diagrama de MUFFLER REAR RACK

Repuestos

#1
8010-020001
NUT M8
$1.36¢681
1
#2
803A-020500
EXHAUST PIPE COMP
$124.99¢62 494
1
#3
30006-060012870
BOLT M6X12
$0.75¢375
1
#4
8010-020003-A000
GASKET, EXHAUST PORT
$3.74¢1 869
1
#5
30105-050012410
SCREW M5X12
$1.36¢681
1
#6
8050-140110
BRACKET, HELMET LOCK
$2.49¢1 244
1
#8
30102-080020810
SCREW, M8X20
$1.36¢681
1
#9
8050-140001
REAR BRACKET
$162.75¢81 375
1
#10
30006-080025810
BOLT M8X25
$1.36¢681
1
#11
9010-020001
RUBBER CUSHION,MUFFLER
$6.24¢3 119
1
#12
8030-020300
BUSH,MUFFLER
$4.99¢2 494
1
#13
30006-102055810
BOLT M10X1.25X55
$2.49¢1 244
1
#14
30006-102025810
BOLT M10X1.25X25 (ARMY GREEN)
$2.49¢1 244
1
#15
30306-080112
WASHER
$1.36¢681
1
#16
30102-080016840
SCREW M8x16
$1.36¢681
1
#17
8030-020222
REAR SUSPENSION PLATE
$37.49¢18 744
1
#18
6060-020104
COLLAR
$19.99¢9 994
1
#19
6060-020140
CLAMP
$12.49¢6 244
1
#20
30301-100412
WASHER
$2.49¢1 244
1
#21
8030-020103
COVER, EXHAUST MUFFLER
$87.49¢43 744
1
#22
803A-020200-1000
MUFFLER ASSEMBLY
No Disponible
1
#23
0060-176000
OXYGEN SENSOR
No Disponible
1
#24
30105-060012440
SCREW M6X12
$1.24¢619
1
#25
30105-060010440
SCREW M6X10
$2.49¢1 244
1
#27
30306-060142
WASHER
$1.36¢681
1
#28
8030-020104
EXHAUST PIPE COVER
$21.24¢10 619
1
#29
30302-060140
WASHER
$1.24¢619
1
