CRANKCASE ASSY

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

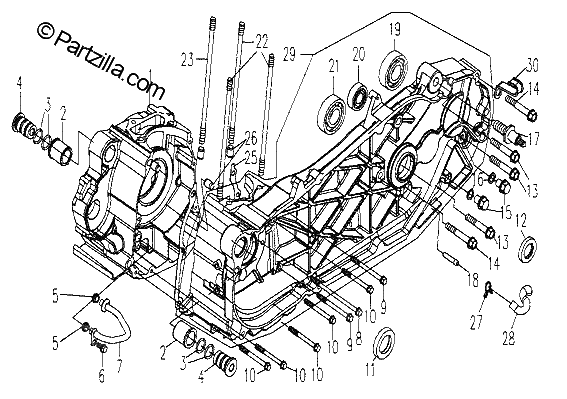

Diagrama de CRANKCASE ASSY

Repuestos

#1
0120-011200-1080
RIGHT CRANKCASE COMP. (WITH "A" MARK)
$160.99¢80 494
1
#1
0120-011200-0080
RIGHT CRANKCASE COMP.
$160.99¢80 494
1
#2
0010-011010-0050
OUTER BUSH, ENGINE HANGER
$5.74¢2 869
1
#3
0010-011008
O RING, 15.8X2.4
$1.25¢627
1
#4
0010-011009-0050
INNER BUSH, ENGINE HANGER
$5.74¢2 869
1
#5
0110-011002
SEAL RING, INNER OIL PIPE
$1.14¢569
1
#6
0010-021019-0010
BOLT M6X12
$2.29¢1 144
1
#7
0110-011400-0010
INNER OIL PIPE SET
$5.74¢2 869
1
#8
0030-011006-0030
BOLT M6x105
$2.29¢1 144
1
#9
0020-011018-0010
BOLT M6X70
No Disponible
1
#10
0010-011017-0010
BOLT M6X60
$1.25¢627
1
#11
0110-011001-000F
SEAL, 28X40X8
$11.49¢5 744
1
#12
30501-022000F
OIL SEAL
$11.49¢5 744
1
#13
0040-012006-0010
BOLT M8x50
$2.29¢1 144
1
#14
0030-011007-0030
BOLT M8x55
$2.29¢1 144
1
#15
0010-060011-0010
BOLT PLUG OIL DRAIN M10X1.25
No Disponible
1
#17
0120-011006-0050
REAR SUSPENSION SHAFT
$11.49¢5 744
1
#20
30499-01500
BEARING 6202
$19.54¢9 769
1
#22
0110-011004-0010
BOLT A, CYLINDER STUD
$4.59¢2 294
1
#23
0110-011005-0010
BOLT B, CYLINDER STUD
$3.44¢1 719
1
#25
0110-011003-0B00
GASKET, CRANKCASE BLACK
$5.74¢2 869
1
#26
0010-021005
DOWEL PIN f 10x14
$1.25¢627
1
#27
30601-110030
CLAMP D10
$1.14¢569
1
#28
0120-011007
BREATHER HOSE,GEARBOX
$4.59¢2 294
1
#29
0120-0111A0-1000
LEFT CRANKCASE COMP.
$321.99¢160 994
1
#29
0120-0111A0
LEFT CRANKCASE COMP.
$344.99¢172 494
1
#30
0031-011001-0010
BRACKET,AIR BYPASS VALVE
$2.29¢1 144
1
