TRANSMISSION ZDF

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

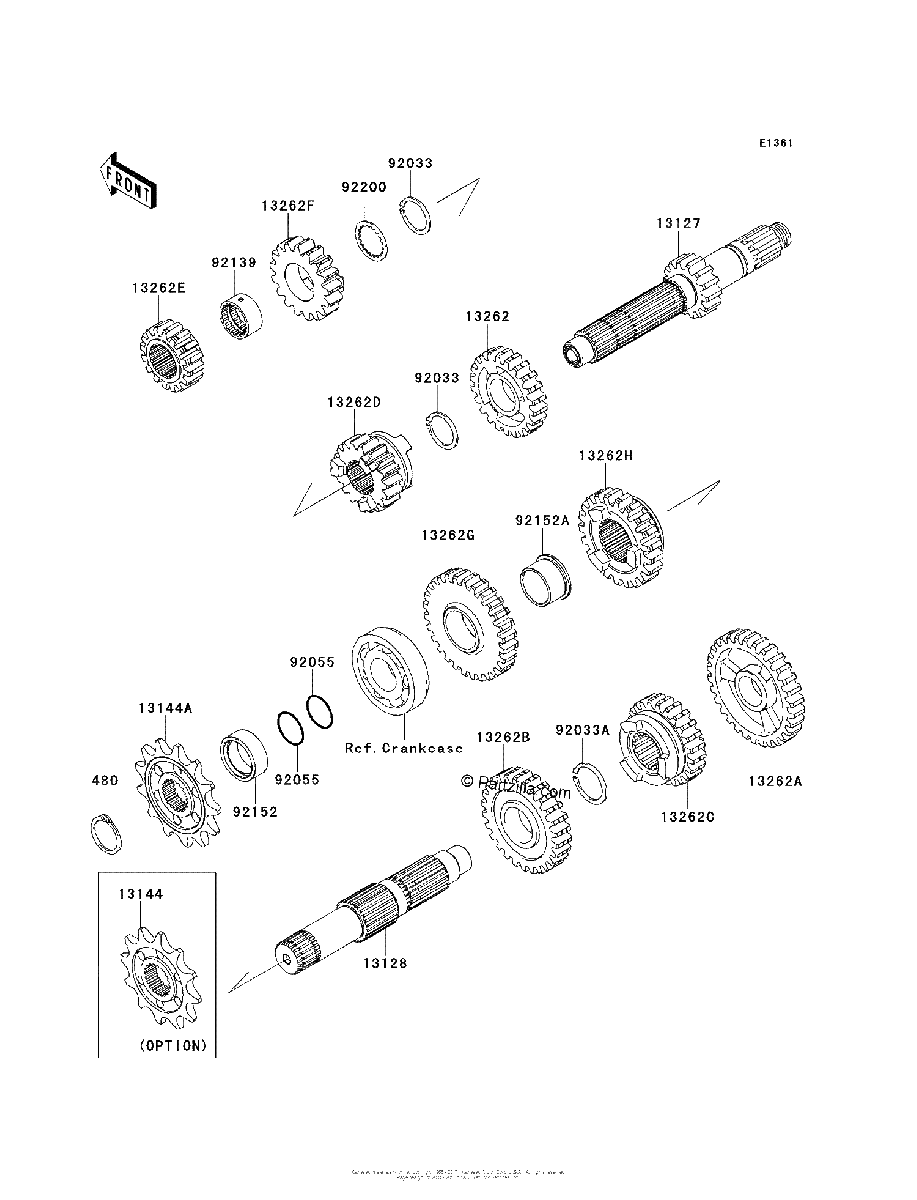

Diagrama de TRANSMISSION ZDF

Repuestos

#480
480J2200
CIRCLIP-TYPE-C,22MM
$4.96¢2 481
1
#13127
13127-0064
SHAFT TRANSMISSION INPUT,14T
$265.55¢132 775
1
#13128
13128-0046
SHAFT TRANSMISSION OUTPUT
$222.46¢111 231
1
#13144A
13144-0064
SPROCKET-OUTPUT,13T
$44.54¢22 269
1
#13144
13144-0036
SPROCKET-OUTPUT,12T | (OPTION)
$43.71¢21 856
1
#13262G
13262-0841
GEAR,OUTPUT 2ND,28T
$151.10¢75 550
1
#13262H
13262-0842
GEAR,OUTPUT 4TH,21T
$169.38¢84 688
1
#13262F
13262-0840
GEAR,INPUT 4TH,17T
$169.38¢84 688
1
#13262E
13262-0839
GEAR,INPUT 2ND,16T
$123.54¢61 769
1
#13262D
13262-0776
GEAR,INPUT 3RD,18T
$169.21¢84 606
1
#13262C
13262-0676
GEAR,OUTPUT 5TH,23T
$168.92¢84 462
1
#13262B
13262-0674
GEAR,OUTPUT 3RD,26T
$168.92¢84 462
1
#13262A
13262-0672
GEAR,OUTPUT LOW,30T
$168.92¢84 462
1
#13262
13262-0671
GEAR,INPUT 5TH,22T
$118.00¢59 000
1
#92033A
92033-1270
RING SNAP
$9.36¢4 681
1
#92033
92033-0057
RING SNAP
$2.96¢1 481
1
#92055
92055-055
RING-O,19.5X1.5
$4.29¢2 144
1
#92139
92139-0241
BUSHING
$34.11¢17 056
1
#92152A
92152-0687
COLLAR
$39.46¢19 731
1
#92152
92152-0683
COLLAR,22X30X11.4
$27.66¢13 831
1
#92200
92200-0442
WASHER,22X26.6X1
$3.10¢1 550
1
