CLUTCH ASSY

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

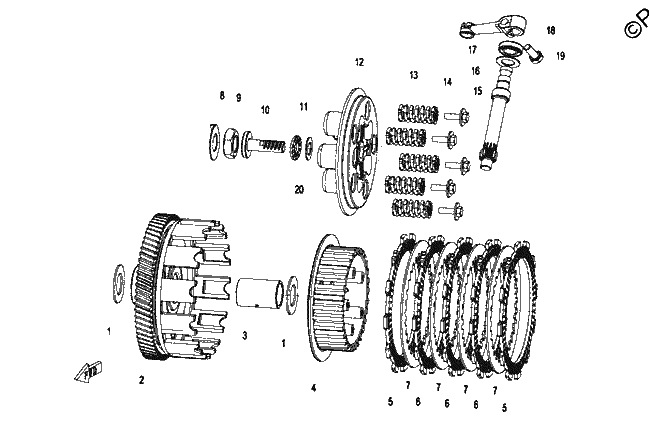

Diagrama de CLUTCH ASSY

Repuestos

#1
0A70-050002
WASHER 20X34.5X2
$1.36¢681
1
#2
0A80-051100
PRIMARY DRIVEN GEAR ASSEMBLY
$87.49¢43 744
1
#3
0A80-050001
BUSHING, PRIMARY DRIVEN GEAR
$12.49¢6 244
1
#4
0A70-051201
HUB, CLUTCH
$54.95¢27 475
1
#5
0A80-050010
DRIVE FRICTION DISC 1, CLUTCH
$12.49¢6 244
1
#6
0A80-050020
DRIVE FRICTION DISC 2, CLUTCH
$12.49¢6 244
1
#7
0A70-051202
DRIVEN DISC, CLUTCH
$3.74¢1 869
1
#8
0A70-050004
LOCK WASHER
$1.36¢681
1
#9
0A70-050005
NUT
$1.36¢681
1
#10
0A80-050006
ROD, PUSH
$12.49¢6 244
1
#11
0A80-050030
THRUST BEARING
$9.99¢4 994
1
#12
0A80-050008
PRESSURE PLATE, CLUTCH
$31.24¢15 619
1
#13
0A70-051204
SPRING,CLUTCH
$3.74¢1 869
1
#14
30112-050016440
SCREW COMP M5X16
$2.49¢1 244
1
#15
0A80-050009
ROD, CLUTCH
$18.74¢9 369
1
#16
0A70-052002
WASHER 10X20X1
$2.49¢1 244
1
#17
0A70-052100
OIL SEAL 10X20X6
$3.74¢1 869
1
#18
0A80-050005
SEPARATE SWING ARM
$12.49¢6 244
1
#19
0010-090005-0010
BOLT M6X16
$1.36¢681
1
#20
0A80-050004
WASHER
$3.74¢1 869
1
